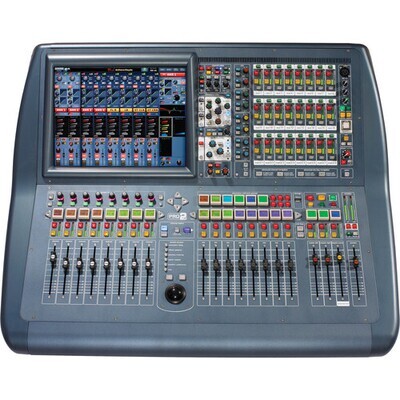

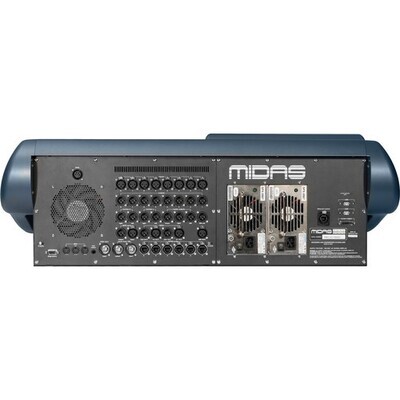

The touring package version of the Midas PRO2C Live Audio Mixing System is designed for live sound reinforcement such as in concert venues, theaters, houses of worship, broadcast, and more. The system is designed to work with any of the Midas digital I/O units. It will connect to the Midas DL251 stage box (sold separately) which features 48 Midas mic/line inputs, and 16 analog XLR outputs on stage, in addition to the mixer's 8 mic/line inputs and 16 XLR analogue outputs on the back of the console itself. Two AES3 inputs, three AES3 outputs, and dual-redundant power supplies, all supplied as standard, complete the hardware configuration. AES50 networking allows for up to 156 inputs and 164 outputs @ 96 kHz sample rate This version of the console is easy to configure and operate. It is identical to the PRO2 apart from having eight fewer input faders.
In addition to the mixer's 56 primary input channels, the unit also features 8 aux returns, all of which feature 4-band Midas parametric EQ and insert points. These 8 aux returns can be used as returns for the PRO2's internal FX processors, or as additional mic channels, if sufficient mic inputs are available on the I/O hardware.
The console's 64 possible input channels may be routed to 27 phase-coherent mix buses which comprise 16 user-configurable buses (as mixes, subgroups, or mix minus groups) and eight matrix buses. The matrix buses can receive their sources from inputs or groups which allows them to be used as eight additional auxiliary (monitor mix and FX sends) for a total of 24 mixes (plus L, R & Mono) for monitor mixing. All buses can be linked as stereo pairs, except the mono bus. As with other Midas digital consoles, the audio paths can be routed to multiple destinations and the console format can be reconfigured live on a scene-by-scene basis.
The touring version of the console comes in a flight case.
