The Sennheiser EW-D ME4 SET with ME 4 Cardioid Lavalier combines pristine 24-bit digital audio with an impressive 134 dB dynamic range, equidistant tuning grid, and automated Bluetooth set up App for your phone to create a professional rackmount wireless microphone system that anyone can use. Though easy to set up and simple to operate, the system's pro-level feature set is well equipped to handle the needs of both first-time and experienced users alike, including presenters and lecturers working in business and educational settings, clergy in houses of worship, and live performers in theaters or on musical stages.
The EW-D's ultrawide dynamic range means that input-sensitivity adjustments on the transmitter are not required. The equidistant tuning grid removes the need for frequency coordination and enables you to operate up to 90 mic channels simultaneously. The UHF transmission greatly enhances range (up to 330') and the wide 56 MHz bandwidth gives you the ability to find a clean channel from 2240 available frequencies.
Intelligent Switching Diversity offers effective protection against RF interference, and the ultralow 1.9ms latency eliminates any noticeable lag when performing live. Additionally, Bluetooth connectivity enables seamless pairing and remote control from your phone via the Smart Assist App. All these features allow the EW-D to automatically handle mic levels and secure the most reliable signal for you in a matter of seconds—without the hassles that can make using a wireless system challenging.

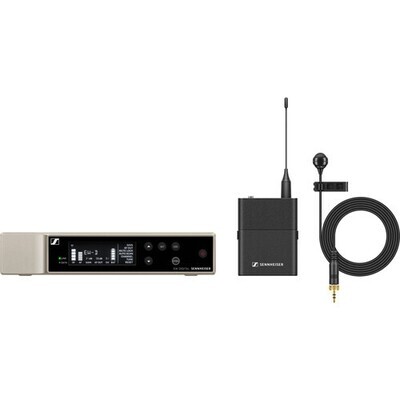

This EW-D ME4 SET is configured with a single-channel EW-D EM receiver, an unobtrusive ME 4 cardioid lavalier mic optimized for speech intelligibility, and a robust, lightweight EW-D SK bodypack transmitter, featuring a metal housing well suited for daily use on stage.
The transmitter pairs with the receiver via Bluetooth Low Energy from up to 120' away, enabling you to quickly pair the mic directly from the stage without having to bring it close to the receiver. The bodypack provides up to 8 hours of operation on two AA batteries or 12 hours with a BA 70 lithium-ion rechargeable battery pack (available separately). The L70 USB dual-charging station (available separately) is required for the BA 70 batteries.
The half-rack EW-D EM receiver with removable antennas is housed in a rugged, all-metal chassis built to withstand the rigors of professional use. It can either sit on a tabletop or be rackmounted for portable rigs and permanent A/V installs.
The receiver features a high-contrast, black-&-white OLED display that uses a streamlined menu system with a dedicated Escape button for quick menu navigation, even in low-light situations. The auto-scan function automatically seeks out the cleanest available frequency for you. If you prefer, you can also configure, control, and operate your system via Bluetooth using the Smart Assist App installed on your iOS/Android phone/tablet—within a 120' range.
Note: The EW-D digital system is NOT backward-compatible with previous evolution analog systems.
|Wireless Transmission||Digital UHF|
|Number of RF Channels||2240|
|Included Transmitters||1 x Bodypack|
|Diversity||True Digital Diversity|
|RF Frequency Band||552 to 607 MHz|
|RF Bandwidth||56 MHz|
|Frequency Step Size||25 kHz|
|RF Channel Scanning||Auto-Scan|
|Max Operating Range||328.1' / 100 m (Line of Sight)|
|Max Systems per Setup||90|
|Bluetooth Operating Distance||120' / 36.6 m (Transmitter Sync, App Control)|
|Dynamic Range||134 dB|
|Form Factor||Tabletop / Rackmount|
|Mounting Options||Rackmount, Tabletop|
|Rackmount Size||1 RU (1/2 Rack)|
|Antenna||2 x 1/4 Wave Rod, BNC (Rear-Mount)|
|Number of Audio Channels||1|
|Audio I/O||1 x XLR 3-Pin Male Balanced Output (Lockable)
1 x 1/4" TS Female Unbalanced Output
|Gain Range||-3 to +42 dB (3 dB Steps)|
|Audio Output Level||XLR Output:
+18 dBu (Balanced)
+12 dB (Unbalanced)
|Frequency Response||20 Hz to 20 kHz|
|Word Clock I/O||None|
|RF Output Power||10 mW (EIRP)|
|Power Requirements||AC/DC Power Adapter|
|AC/DC Power Adapter||11 to 13 VDC at 300 mA (Included)|
|AC Input Power||100 to 240 VAC, 50 / 60 Hz|
|Display & Indicators||1 x Backlit OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status)|
|Operating Temperature||14 to 131°F / -10 to 55°C|
|Operating Humidity||5 to 95%|
|Dimensions||7.4 x 1.7 x 8.3" / 189 x 44 x 212 mm|
|Weight||2.2 lb / 1 kg|
|RF Output Power||10 mW (ERP)
Up to 10 mW (EIRP)
|Audio I/O||1 x 1/8" / 3.5 mm TRS Female Input (Lockable)|
|Audio Input Level||2 to 4.35 V RMS|
|Antenna||1 x Flexible Whip, Fixed (Beltpack)|
|Battery Type||2 x AA (Included)
1 x Sennheiser Battery Pack (Not Included, Replaceable)
|Approx. Battery Life||8 Hours (Alkaline)
12 Hours (Sennheiser Battery Pack)
|Dimensions||2.5 x 3.1 x 0.8" / 63 x 80 x 20 mm (without Antennas)|
|Weight||4.2 oz / 120 g (without Batteries)|
|Frequency Range||50 Hz to 18 kHz|
|Equivalent Noise Level||31 dB|
|Maximum SPL||120 dB SPL|
|Sensitivity||40 mV/Pa at 1 kHz|
|Output Connectors||1 x 1/8" / 3.5 mm TRS Male (Lockable)|
|Cable Length||5.2' / 1.6 m|
|Operating Voltage||7.5 V|
|Package Weight||5.92 lb|
|Box Dimensions (LxWxH)||16 x 13.9 x 3.1"|
