Key Features
- Wireless Control for iOS/Mac Music Apps
- 4 Backlit Control Pads
- 10m Range
- 2 1/4" TRS Inputs for Expression Pedals
- Bluetooth 4.0 / Bluetooth Low Energy
- Operates on 4 AAA Batteries
IK Multimedia IP-IRIG-BBRD-IN Overview

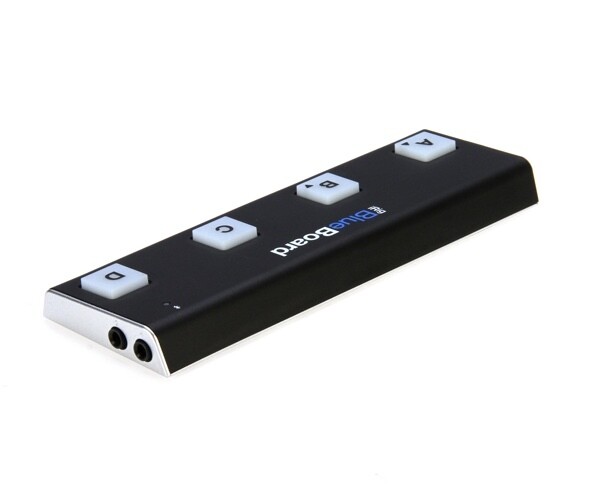

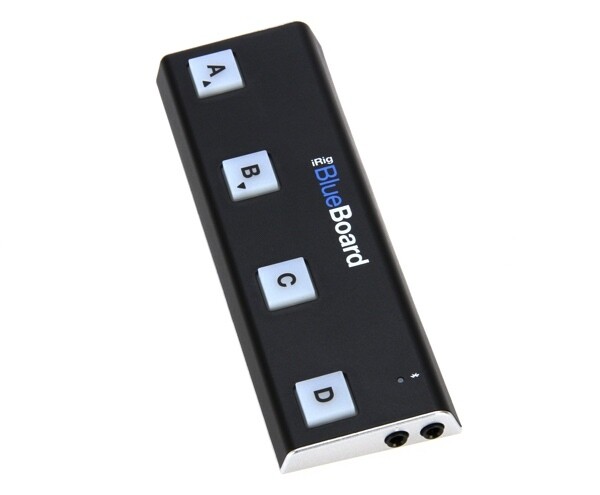

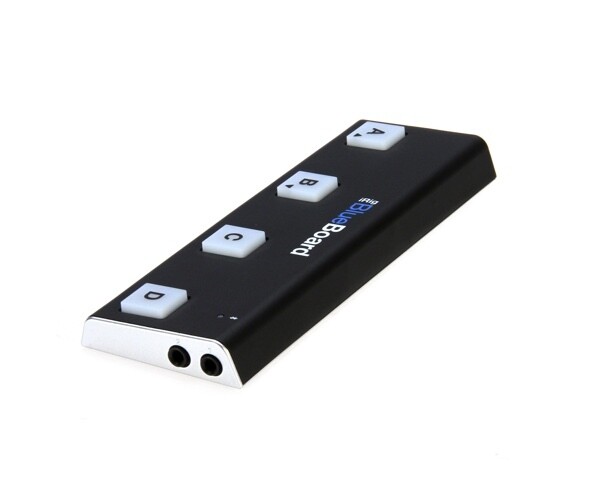

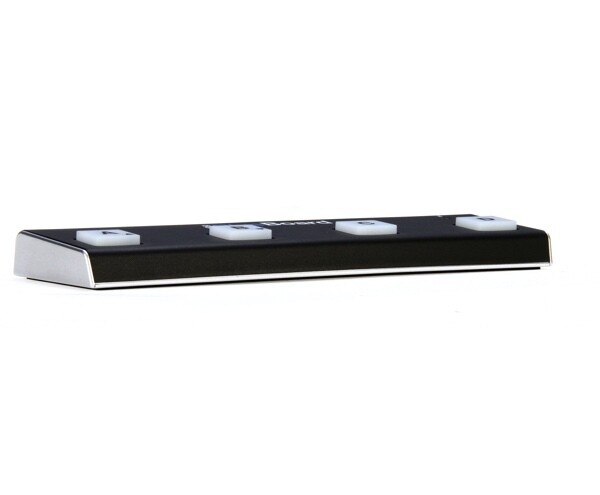

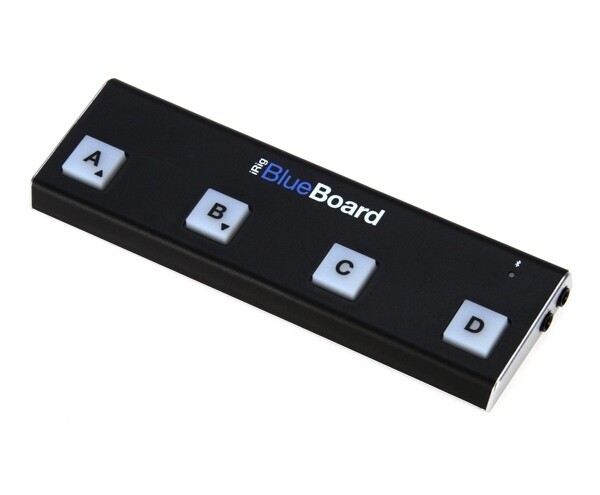

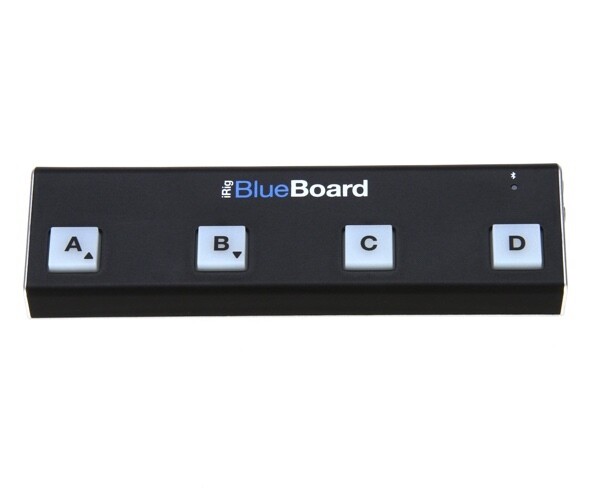

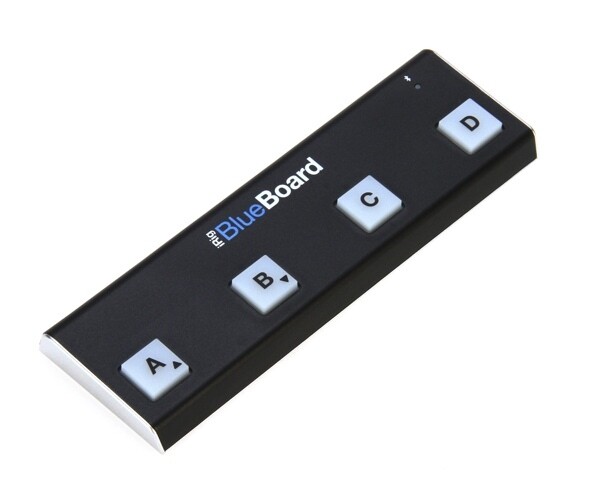

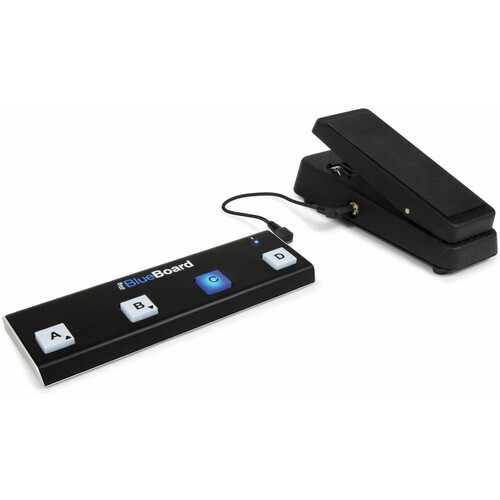

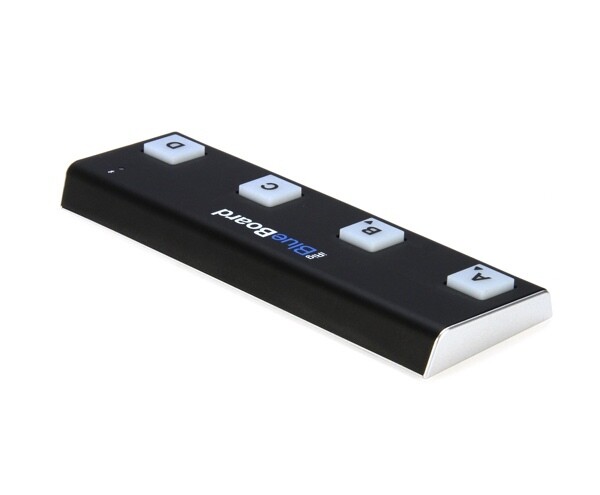

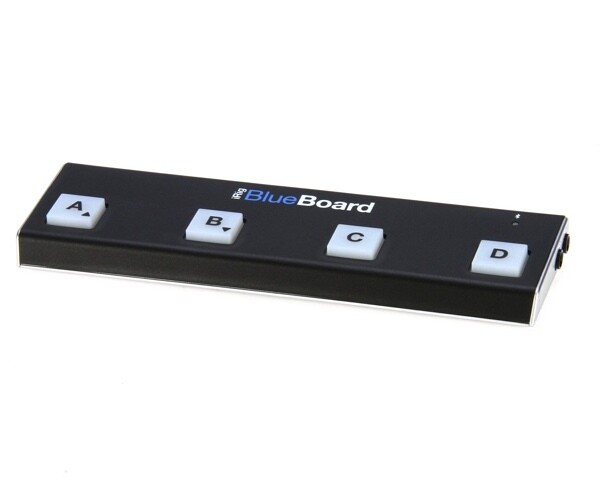

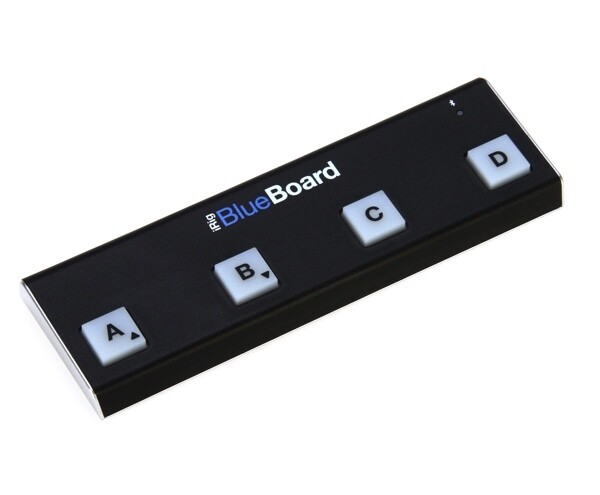

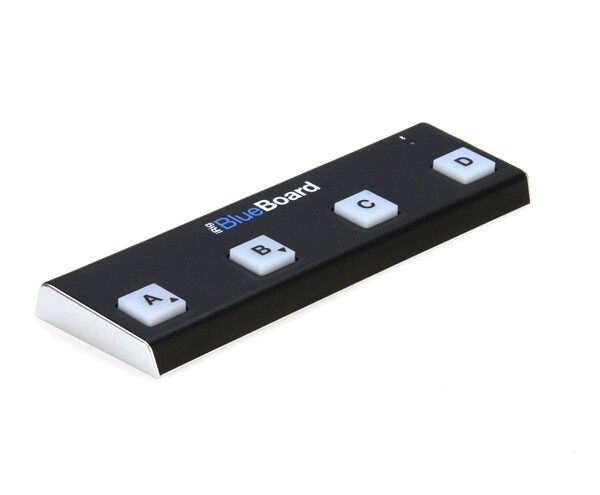

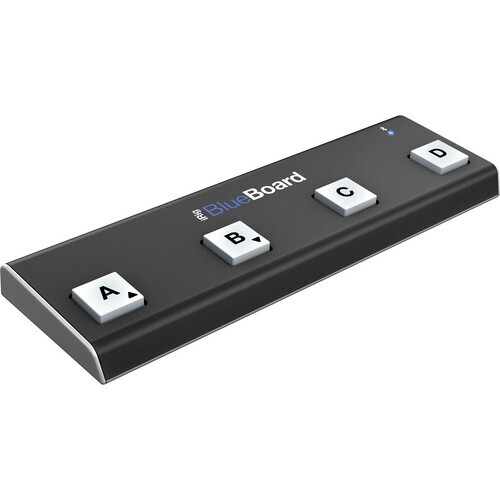

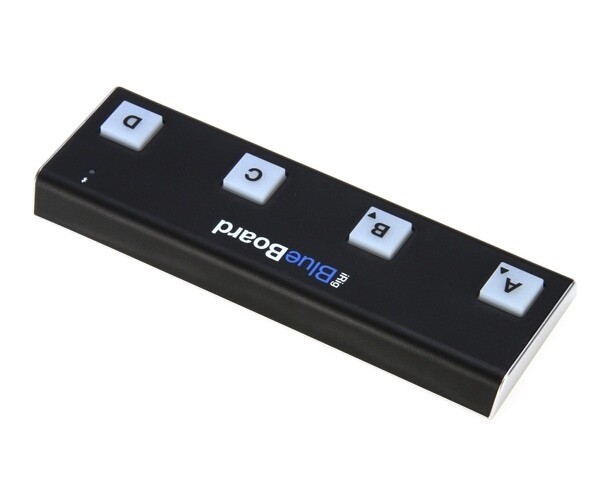

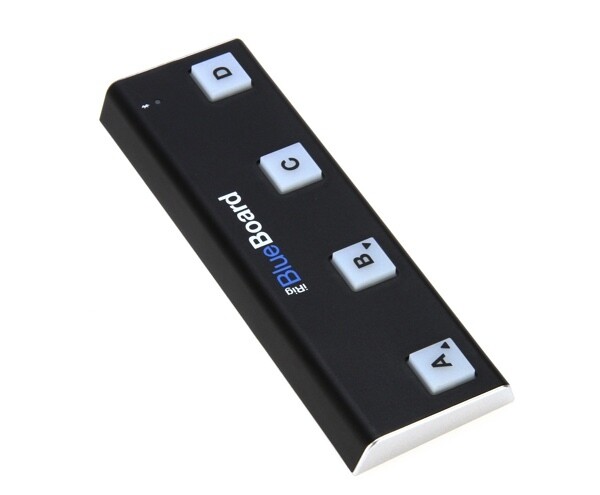

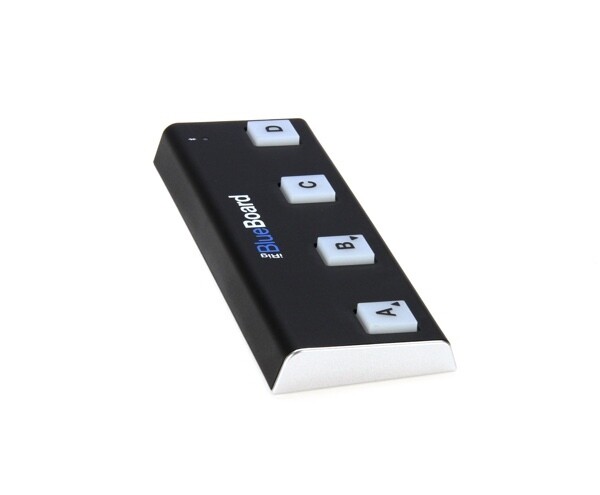

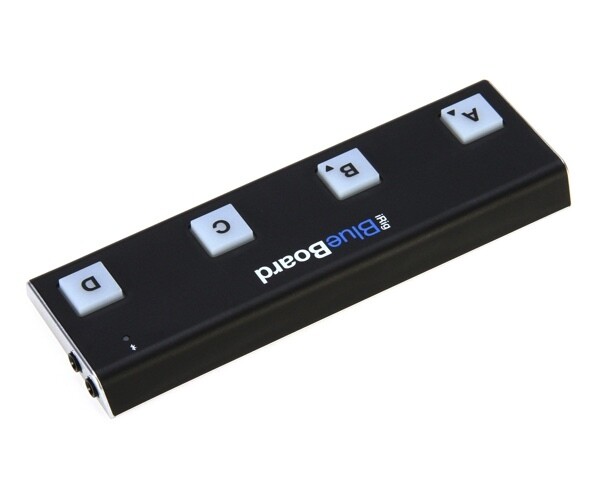

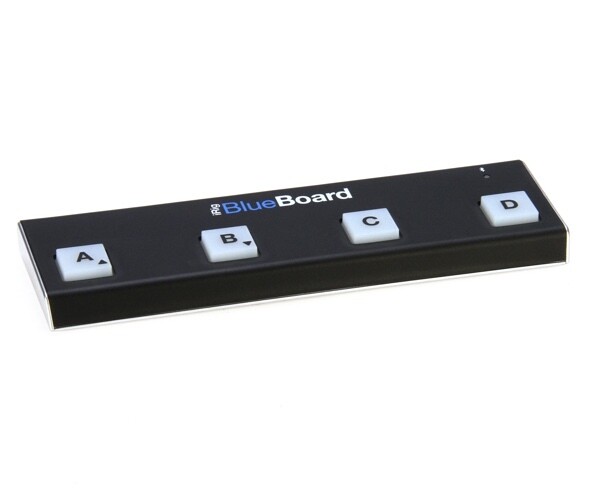

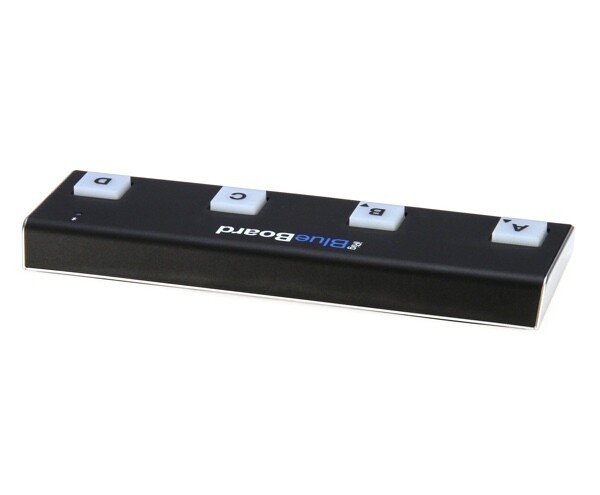

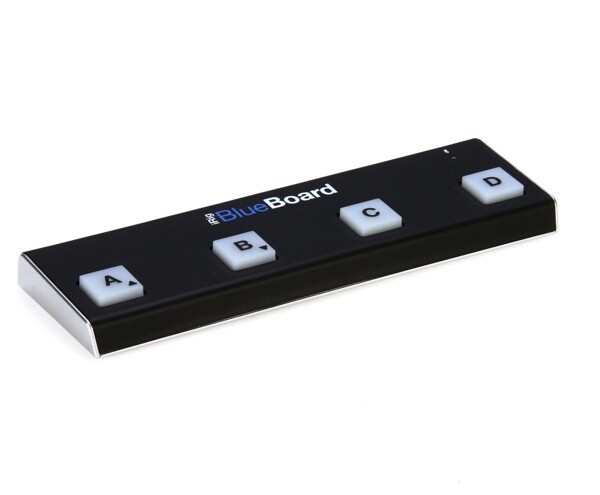

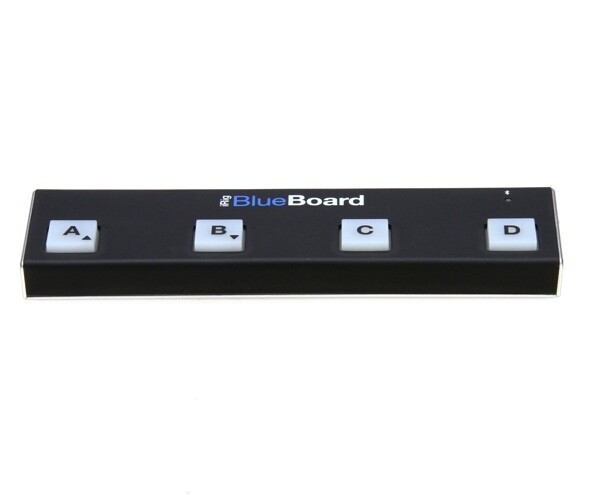

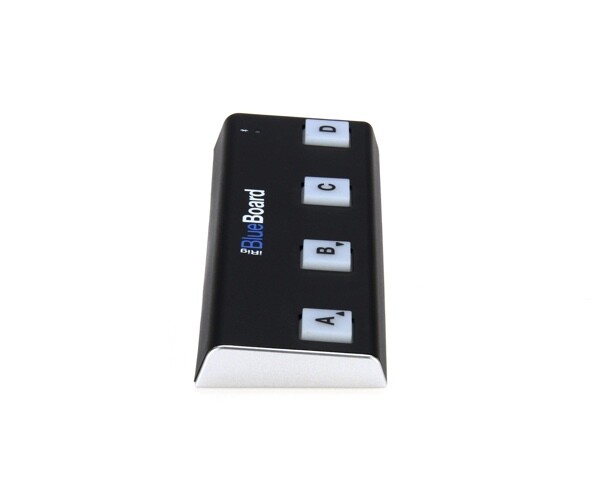

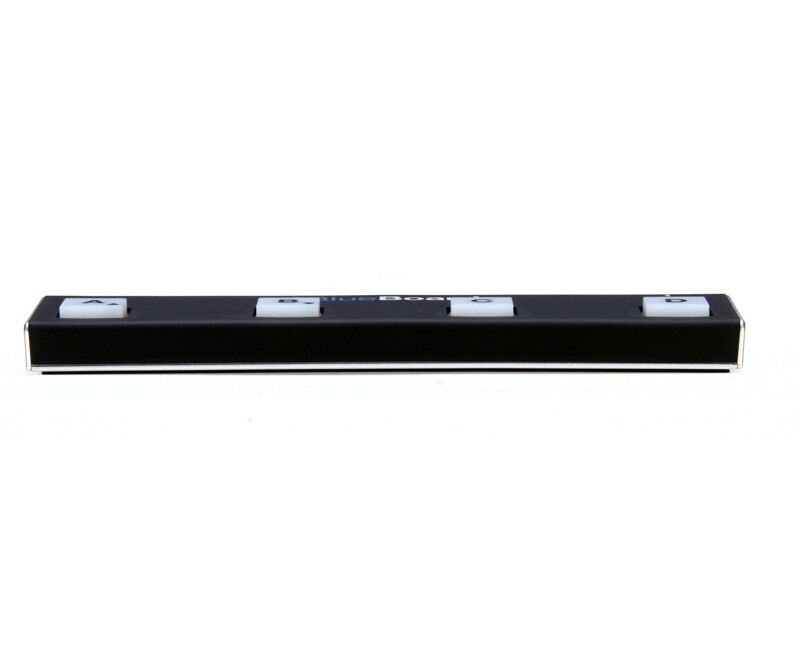

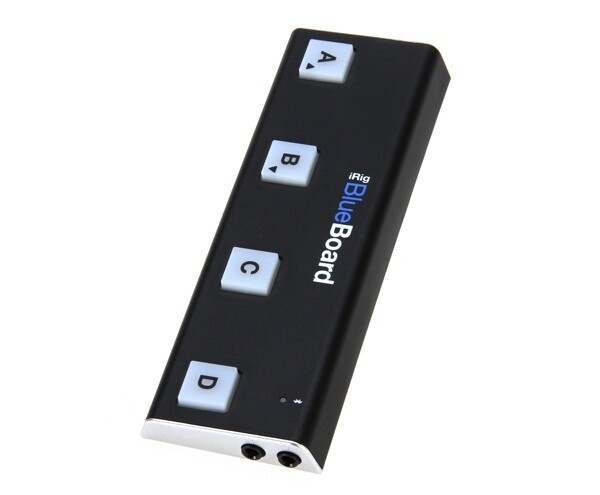

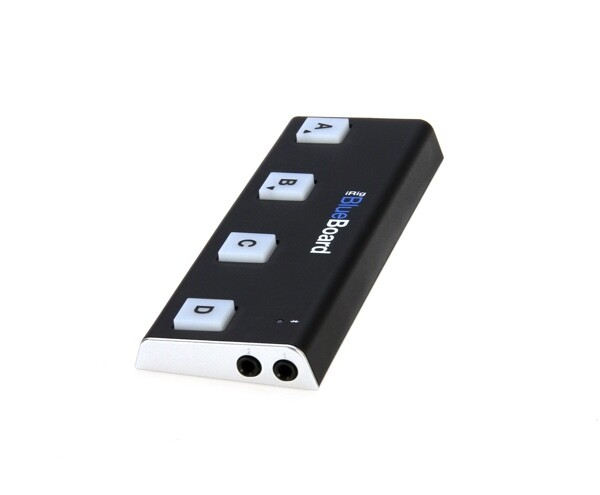

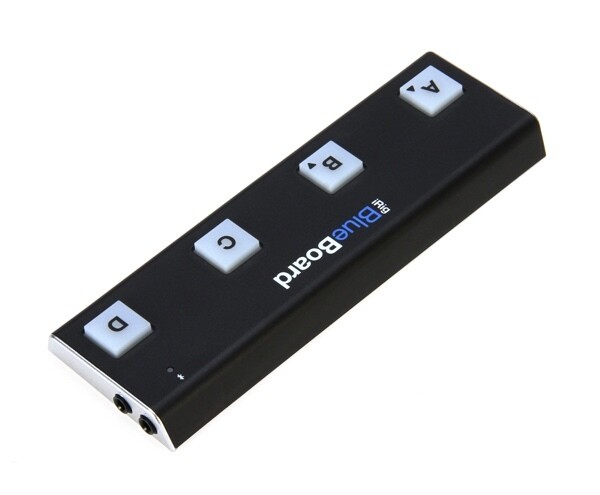

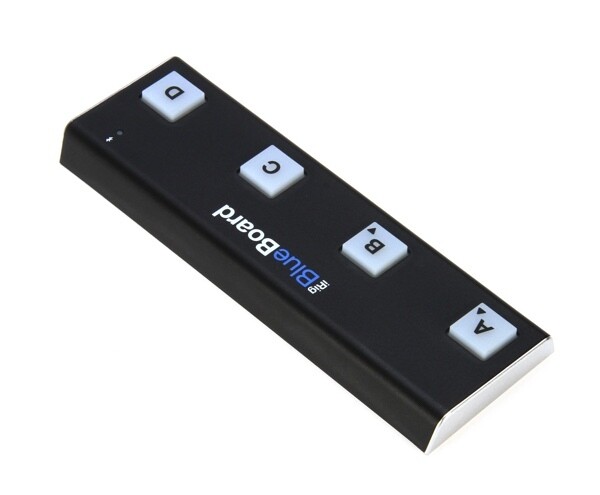

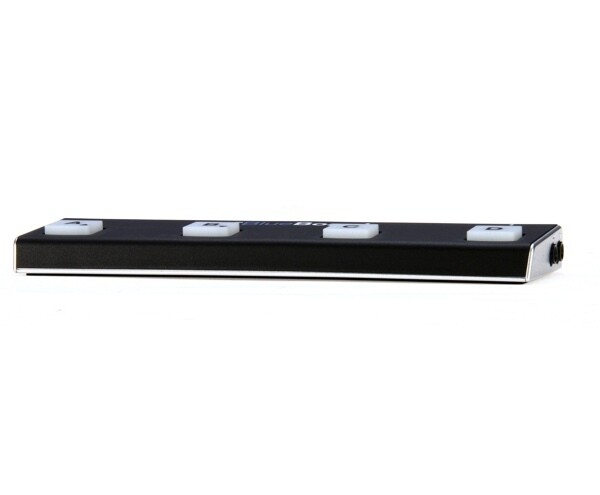

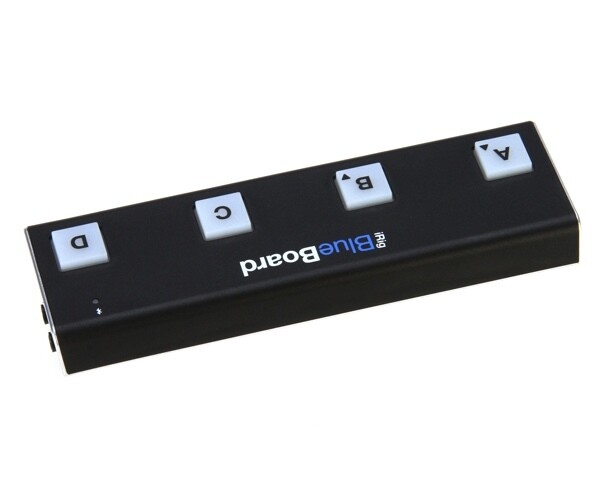

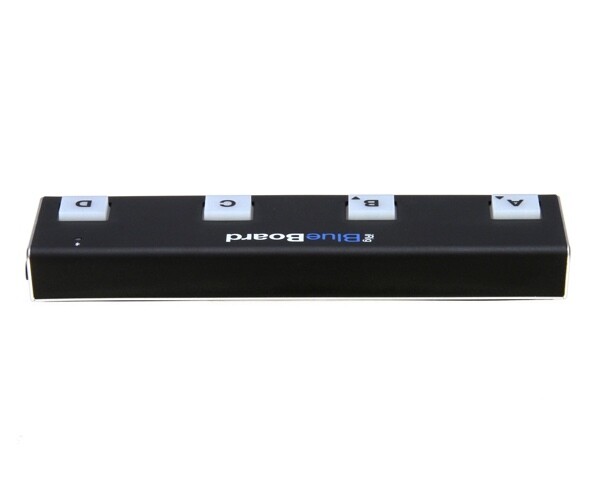

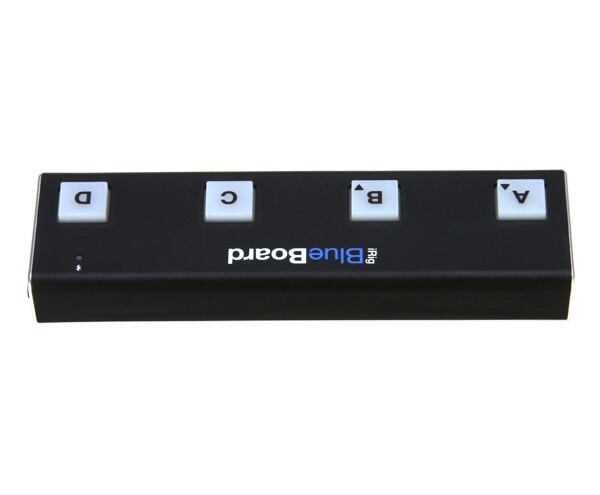

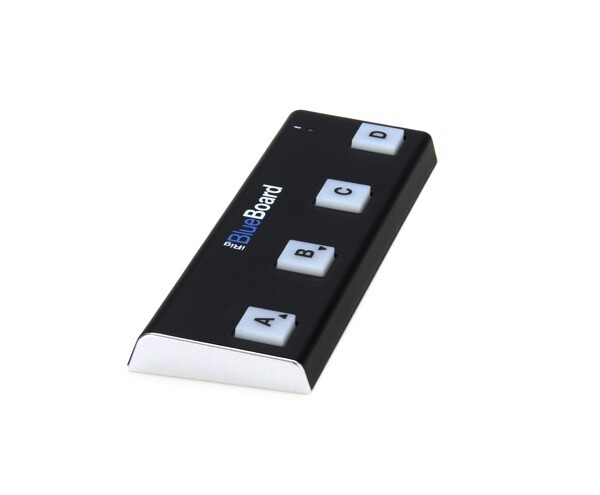

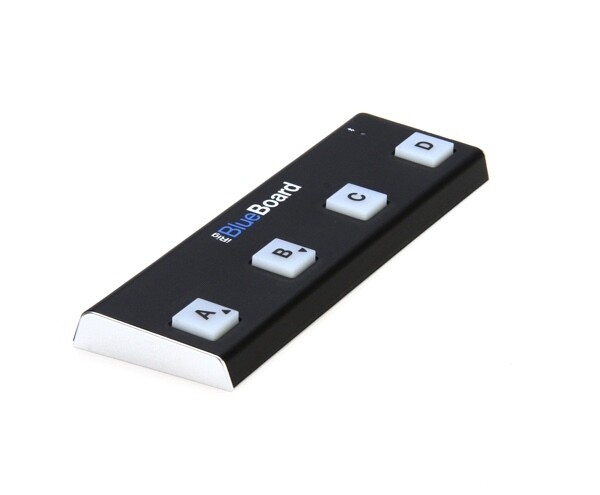

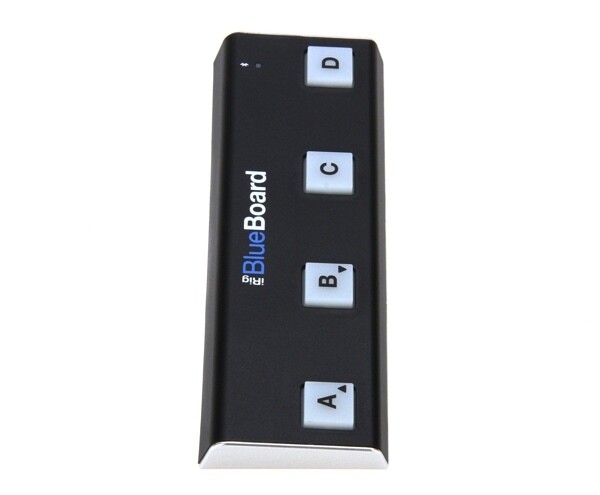

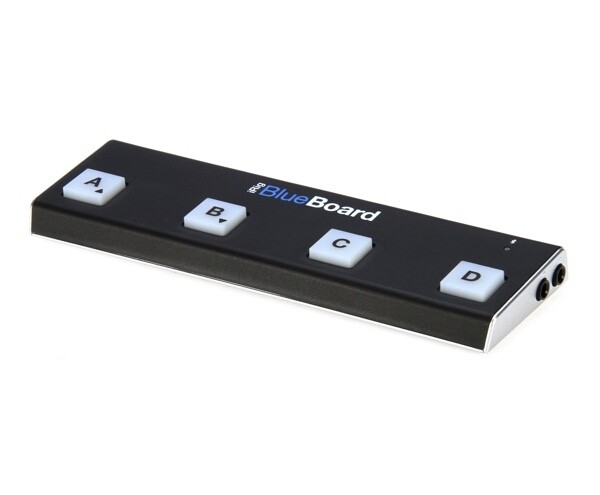

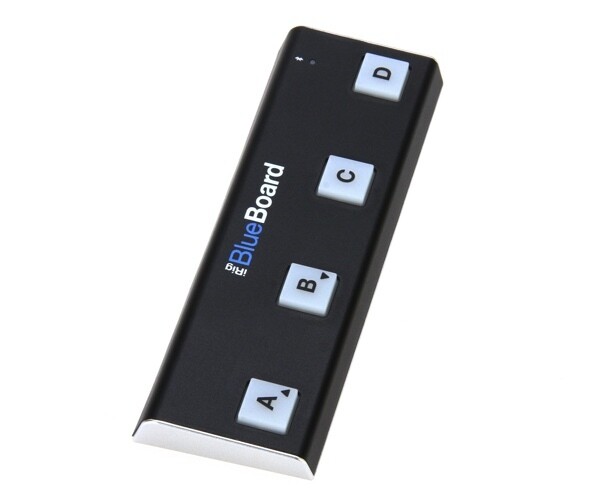

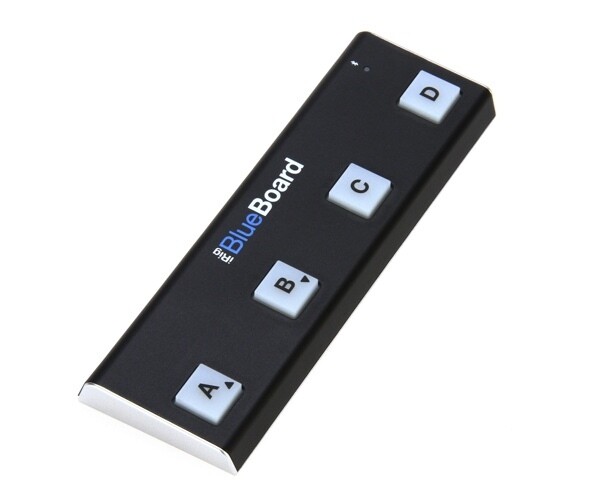

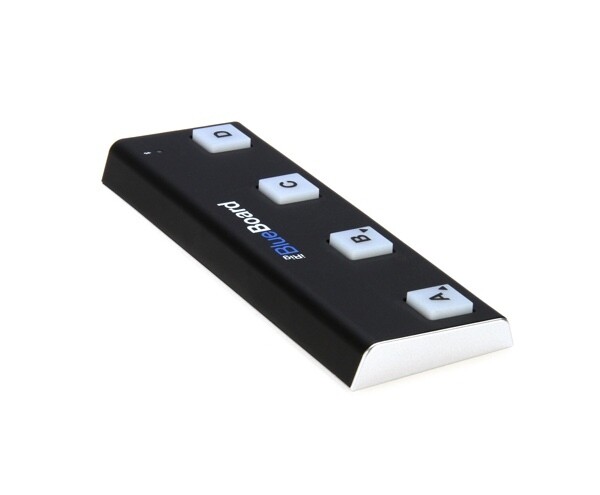

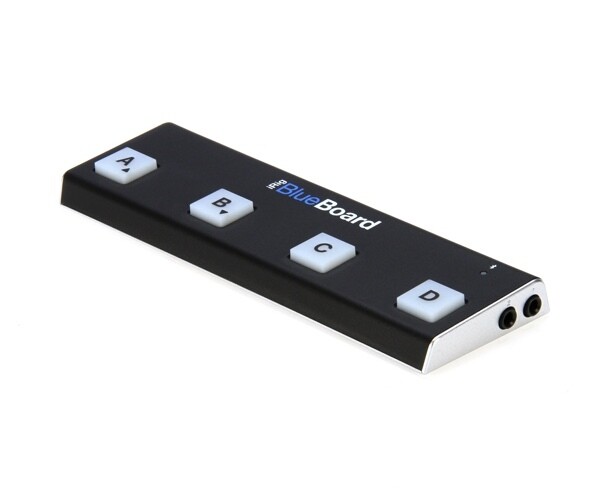

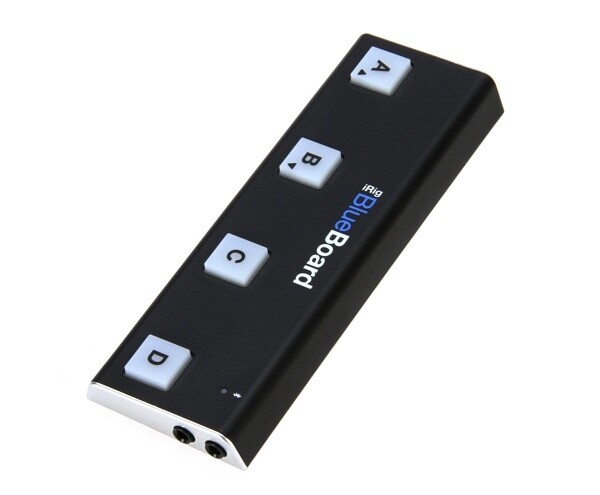

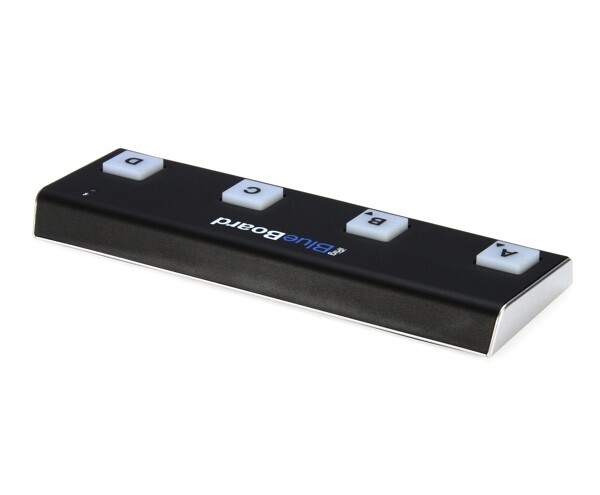

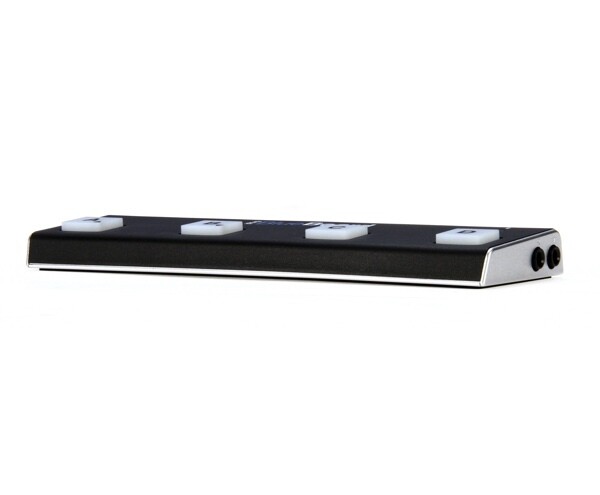

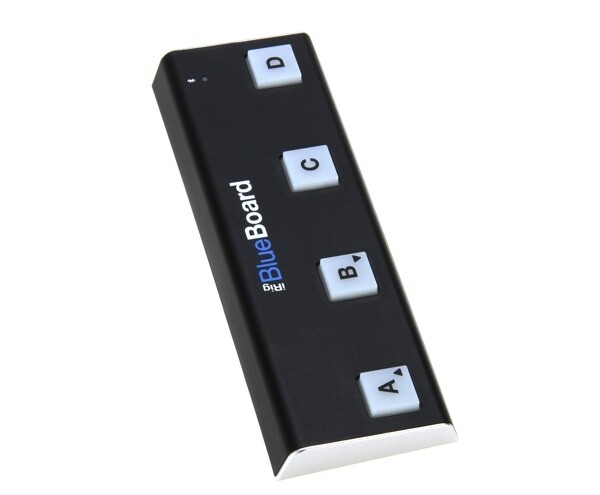

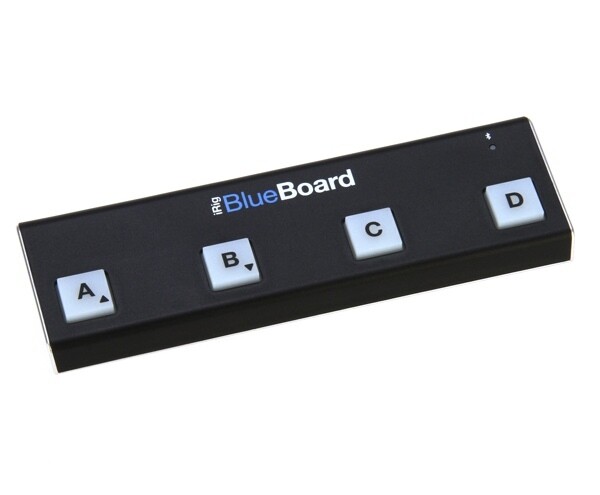

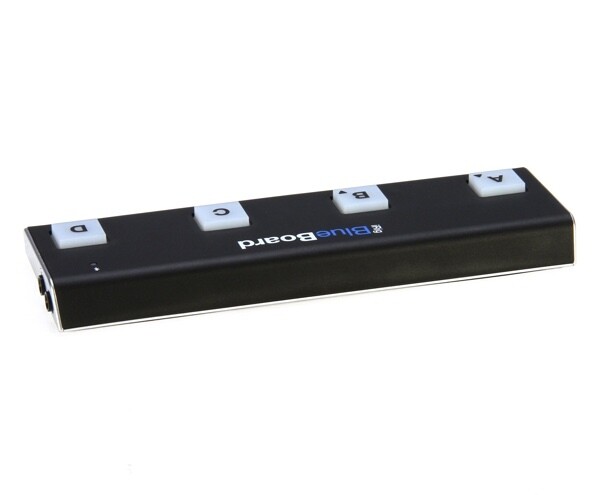

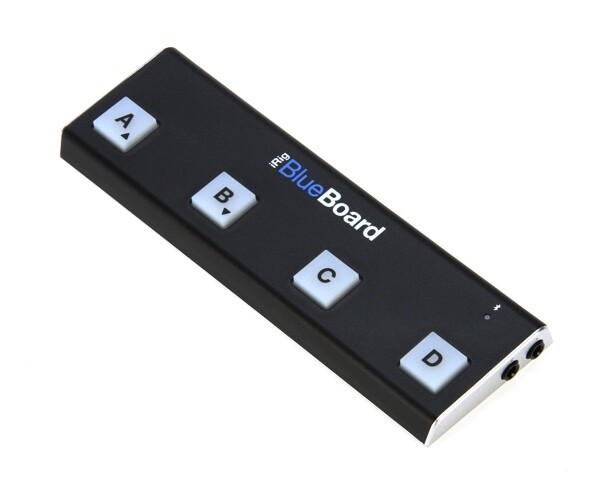

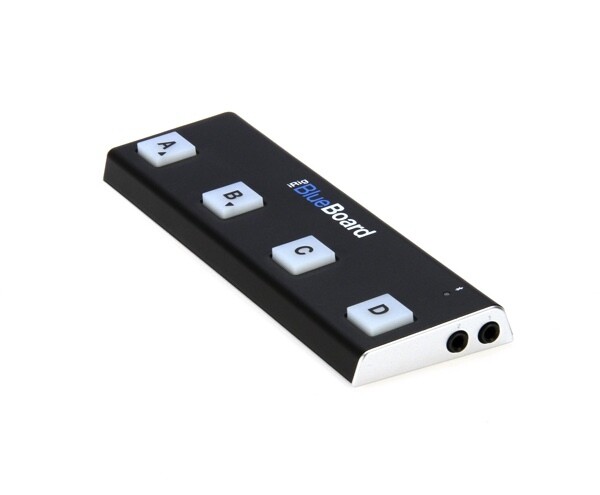

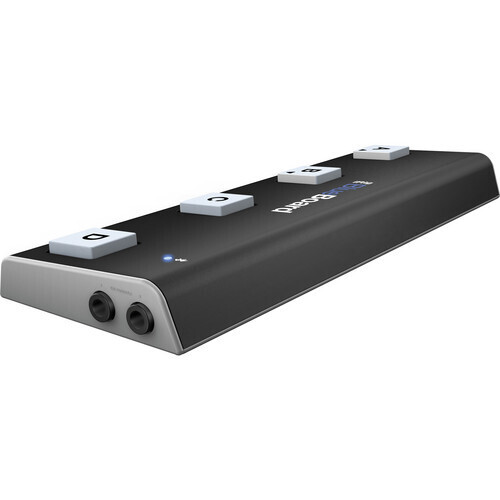

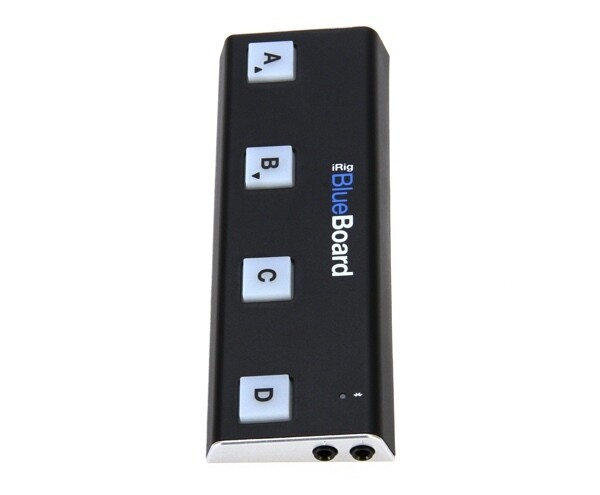

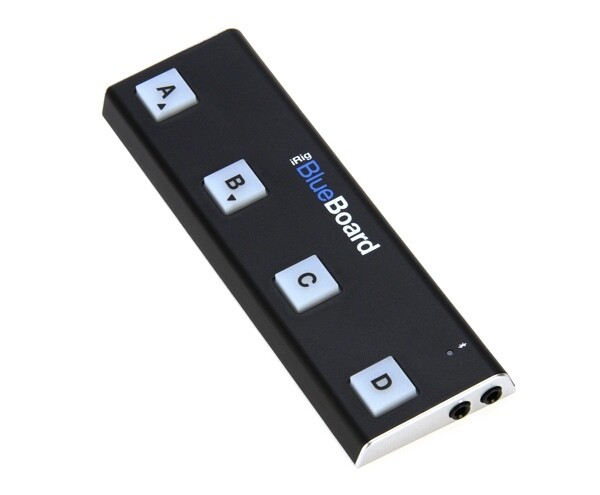

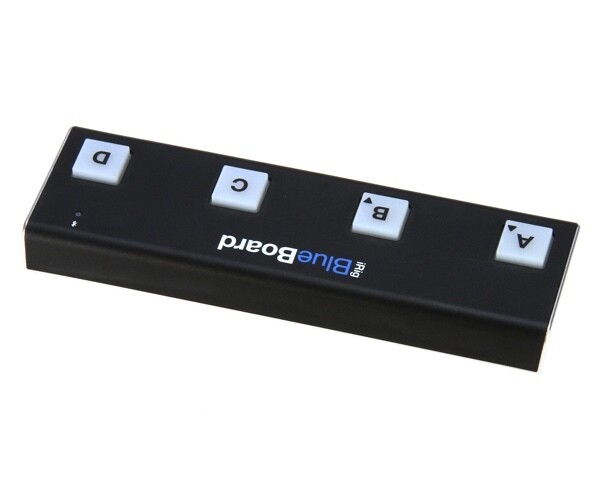

The iRig BlueBoard Wireless MIDI Pedalboard from IK Multimedia operates on Bluetooth 4.0 / Bluetooth Low Energy technology to wirelessly control your iOS and Mac music apps while performing or recording. It has four LED backlit control pads that can be used to switch between presets, change patches, and turn effects on and off in any Core MIDI compatible app such as IK Multimedia's AmpliTube, VocaLive, SampleTank, the iGrand Piano, or Apple's GarageBand. The BlueBoard features two 1/4" TRS inputs for use with MIDI expression controllers to add wah or volume pedal effects to you performance. It is powered by four AAA batteries and has a range of operation up to 10 meters.
Take Control

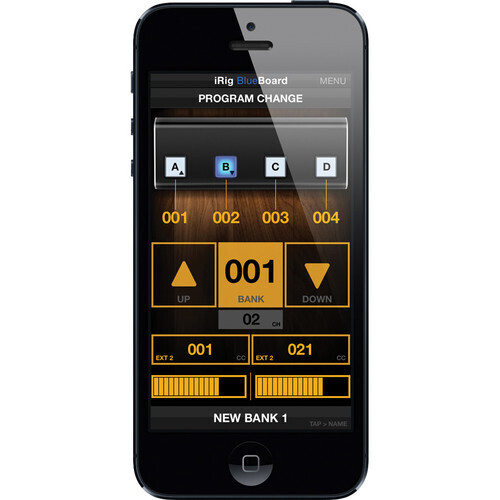

The iRig BlueBoard connects to your compatible device via Bluetooth. When you press its foot switches, it sends out control signals that are converted to MIDI by the iRig BlueBoard app. You can place it up to 10 meters away from your device, and still maintain full control of your apps.
Backlit Control Pads

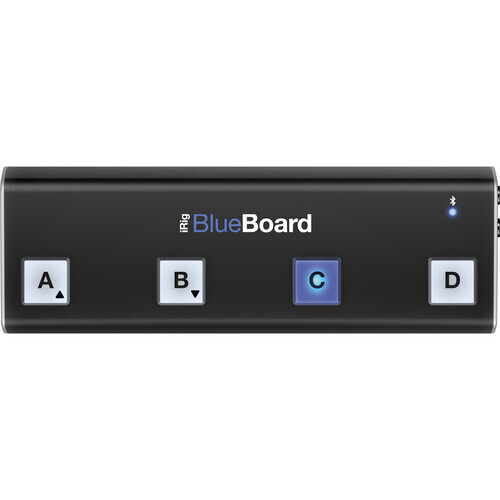

The BlueBoard has four backlit control pads with an additional LED that lights when the pad is active, letting you know which control is on.
Bluetooth
Because the BlueBoard communicates with your device via Bluetooth, it leaves the connector free for use with other accessories.
Designed by and for Musicians

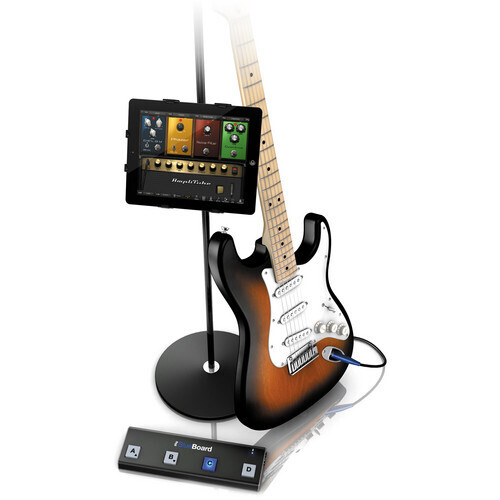

Musicians will now be able to play and control their preferred iOS app onstage or in the studio, with the freedom of not being tethered by cables. The iRig BlueBoard is small enough to fit in a laptop bag for transport to and from gigs.
Compatibility
The BlueBoard is compatible with the iPhone 5, iPhone 4S, the iPod touch 5th generation, the iPad 3rd and 4th generation, and the iPad mini. It also has compatibility for any iMac, Mac Mini, MacBook Air, and MacBook Pro from June 2012 on. It requires iOS 6.1 or later and Bluetooth 4.0 / Bluetooth Low Energy
IK Multimedia IP-IRIG-BBRD-IN Specs
| Bluetooth | Bluetooth 4.0
Bluetooth Low Energy (BLE) |
| Range | 32.8' (10 m) |
| Controls | 4 Backlit Control Pads |

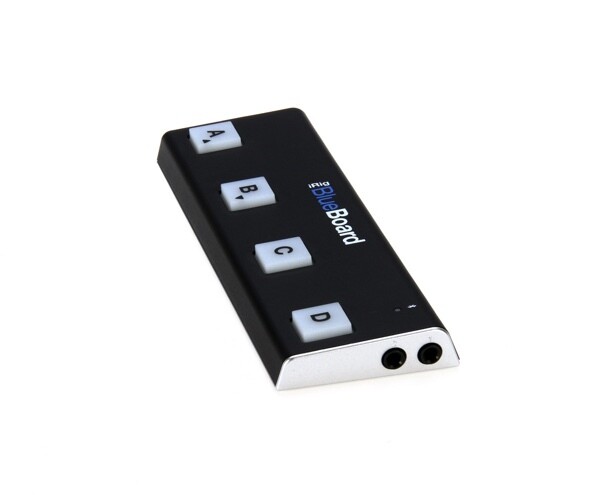

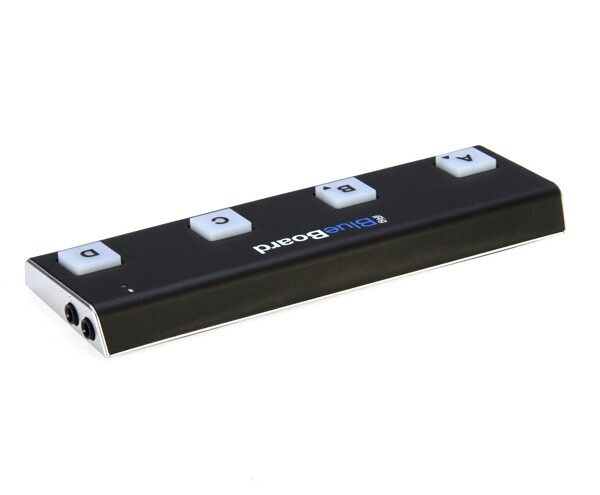

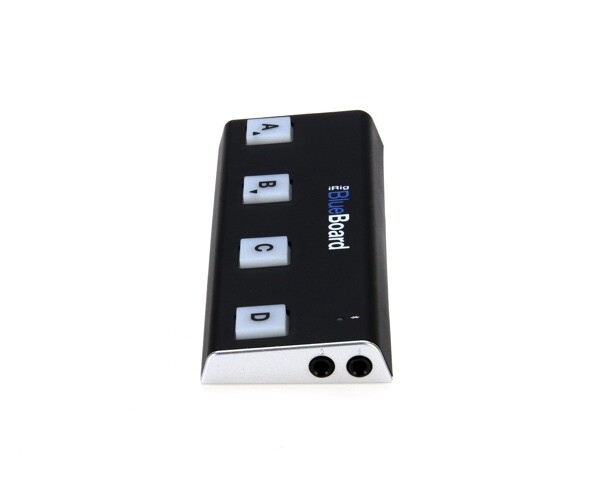

| Inputs | 2 x 1/4" (6.35 mm) TRS Expansion Jacks |
| Power Supply | 4 x AAA Batteries |
| Software Compatibility | Mac OS X 10.7 or Later
Requires iOS 6.1 or Later
Any Core MIDI Compatible Apps
Android iKlip Stage App |
| Hardware Compatibility | iOS Devices:
iPhone 5
iPhone 4S
iPod touch 5th generation
iPad 4th generation
iPad 3rd generation
iPad mini
Mac Computers:
All models from June 2012 on that support Bluetooth 4.0 / Bluetooth Low Energy |
| Dimensions (W x L x H) | 10.8 x 3.6 x 1" / 2.8 x 9.2 x 2.5 cm |
| Weight | 8.8 oz (250 g) |
Packaging Info
| Package Weight | 1.105 lb |
| Box Dimensions (LxWxH) | 13.55 x 4.8 x 2" |
