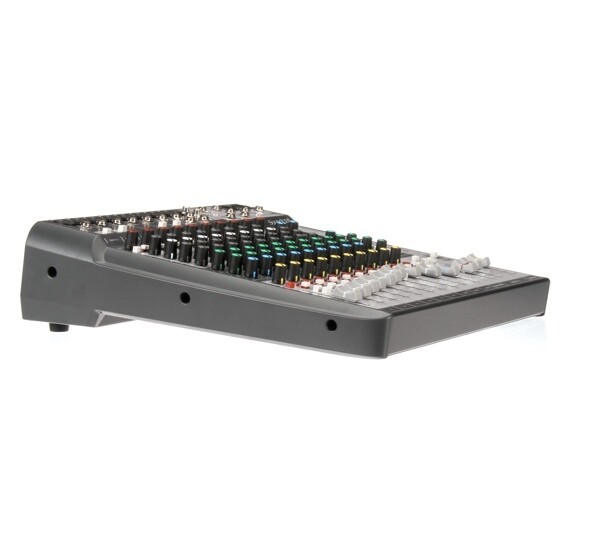

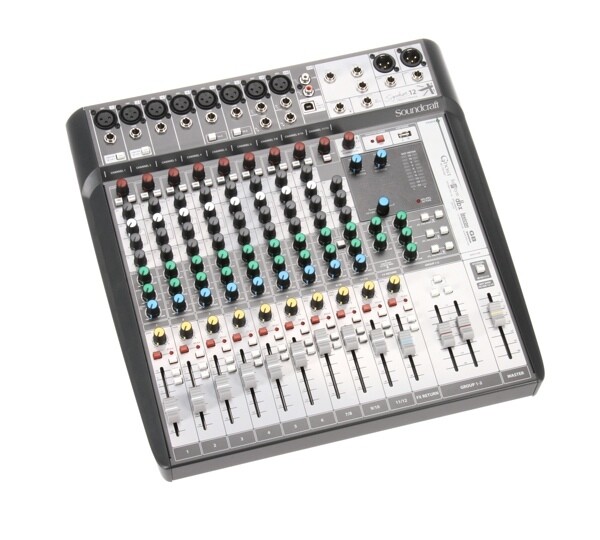

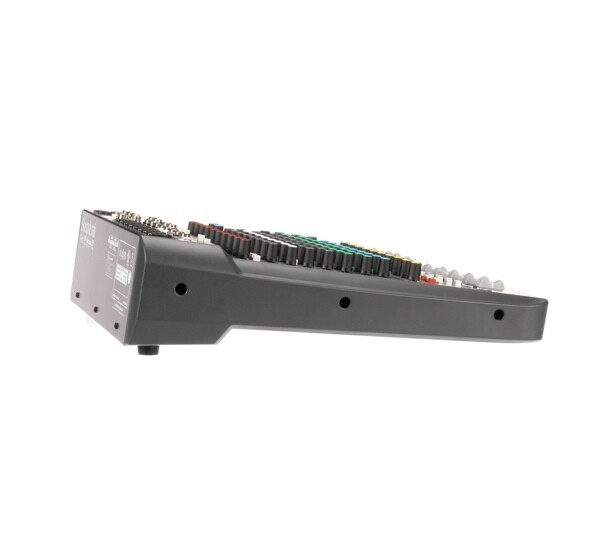

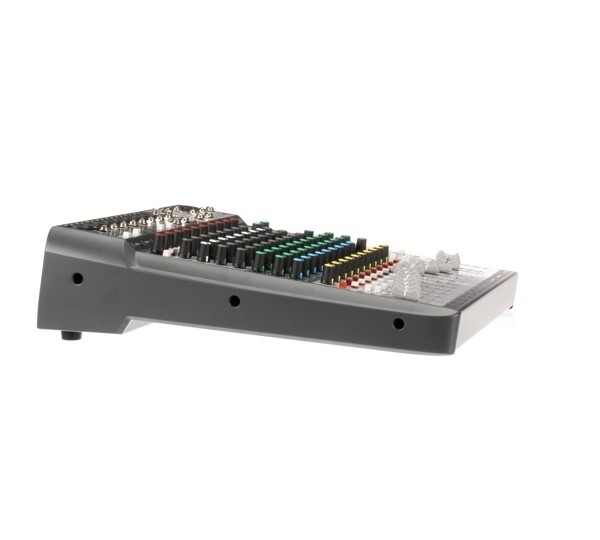

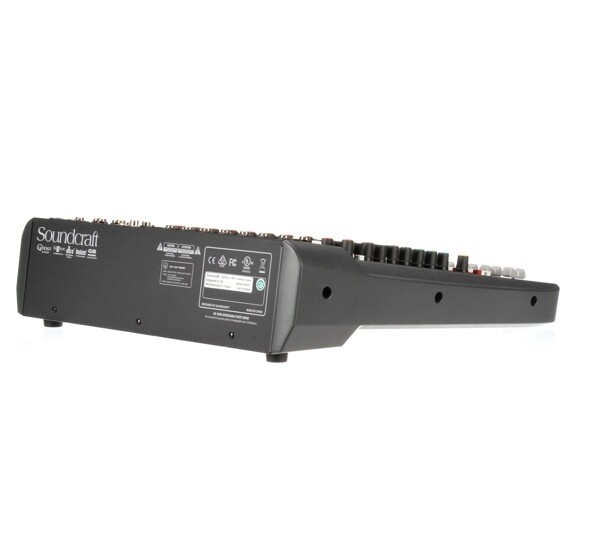

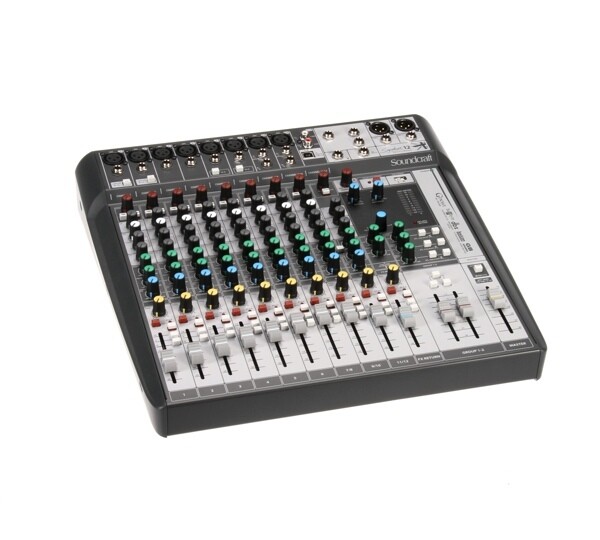

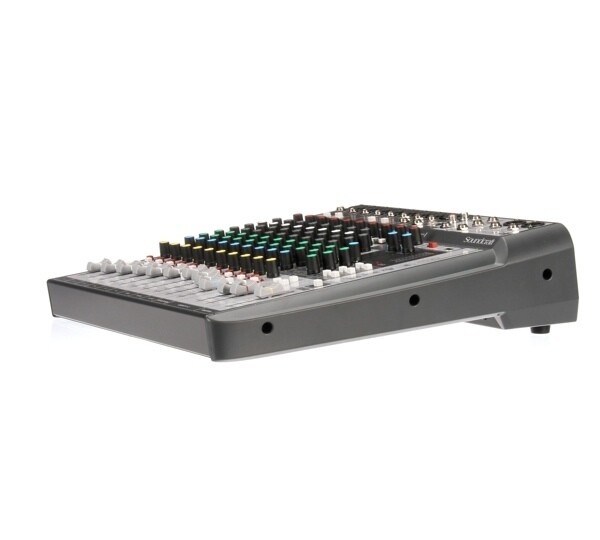

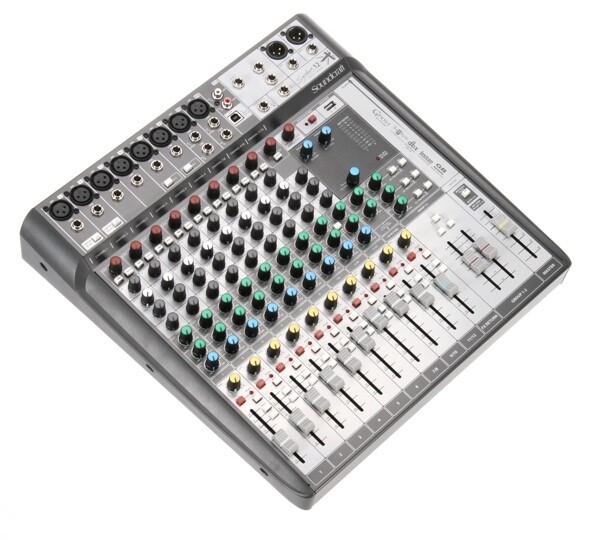

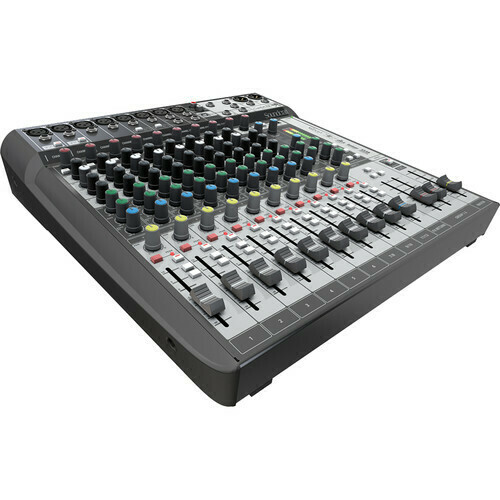

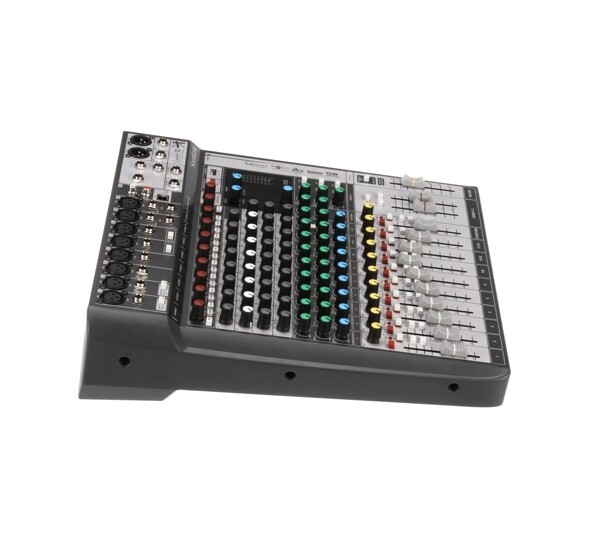

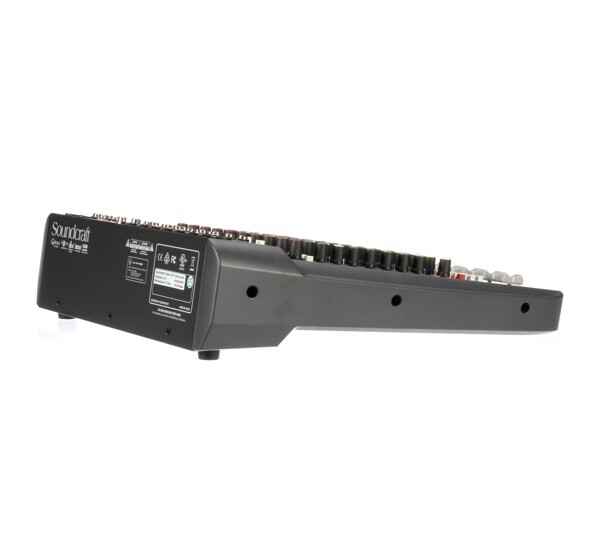

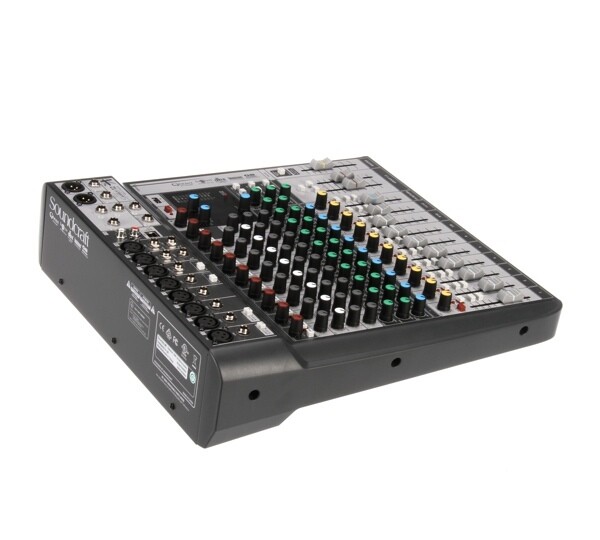

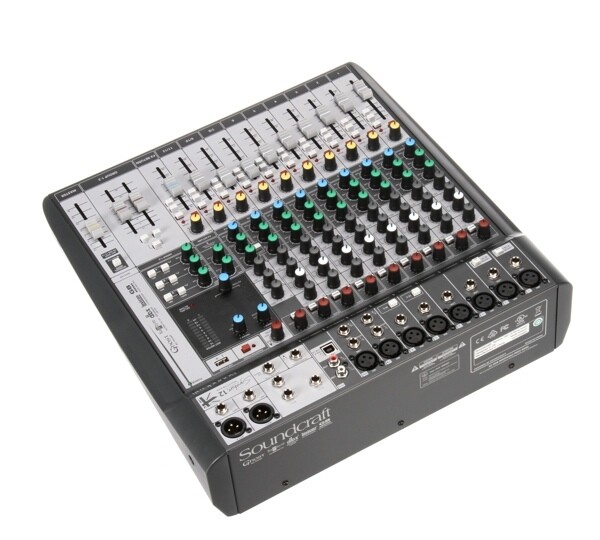

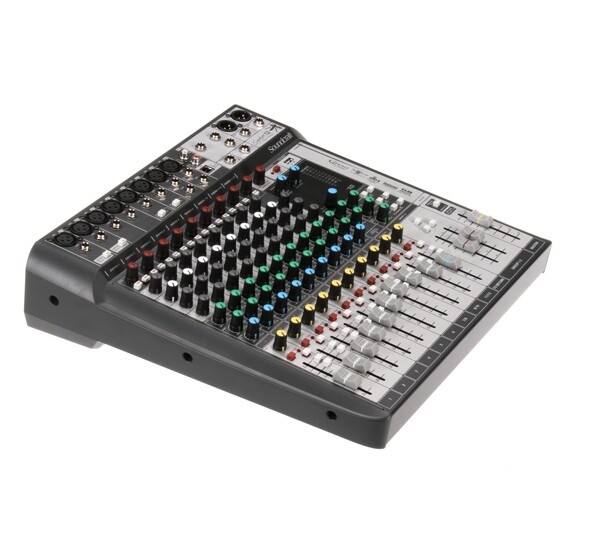

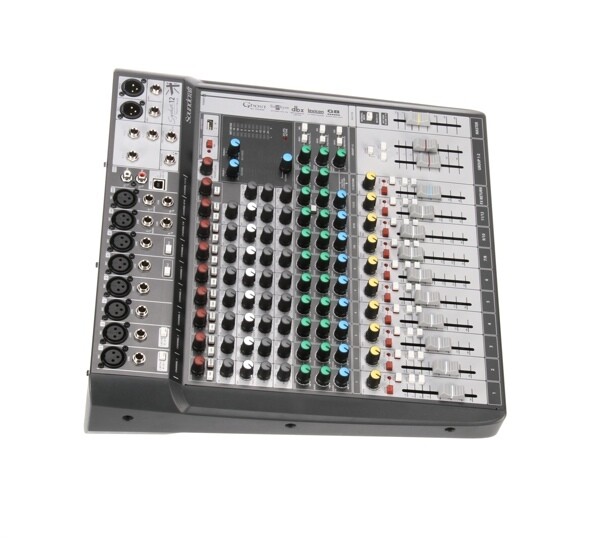

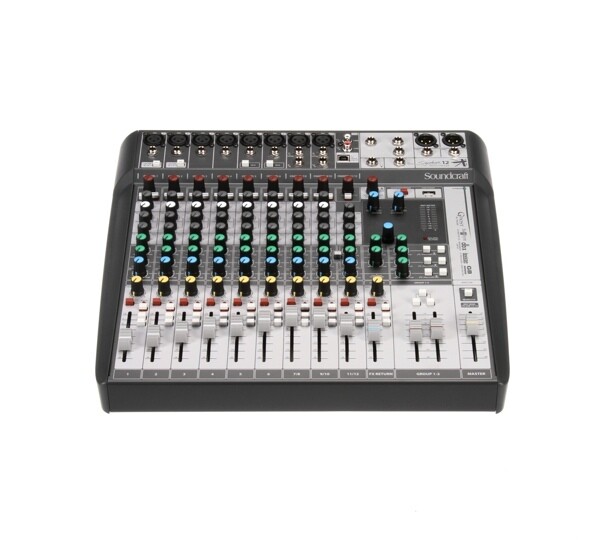

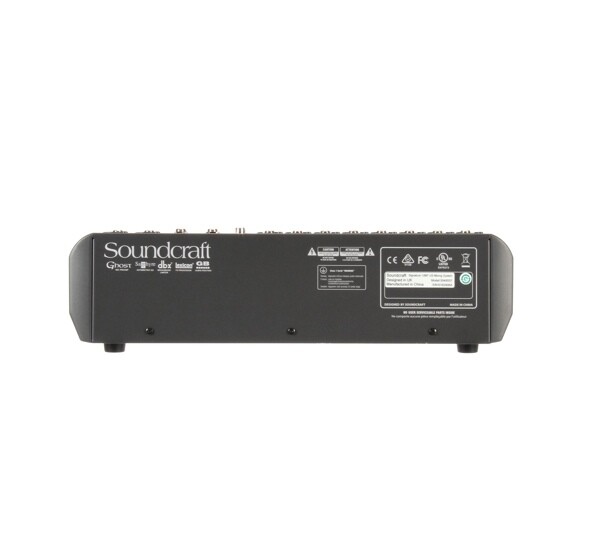

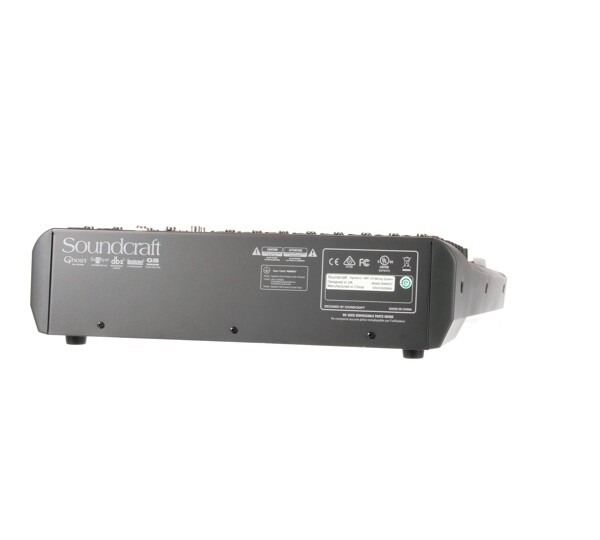

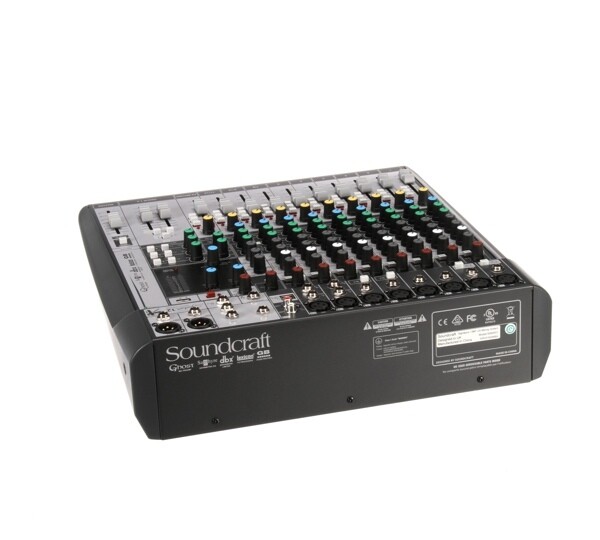

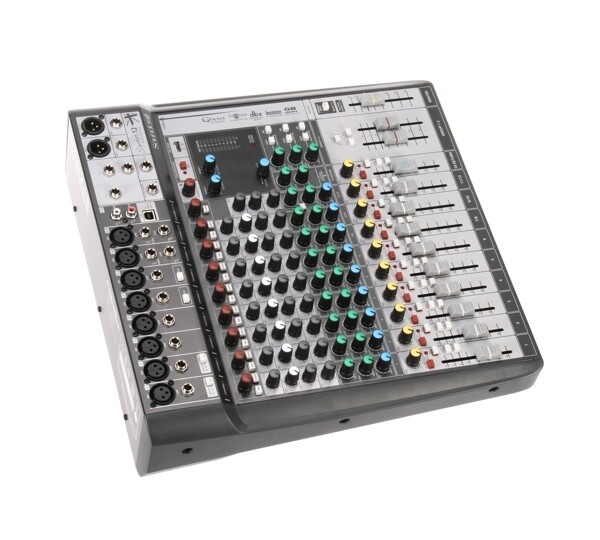

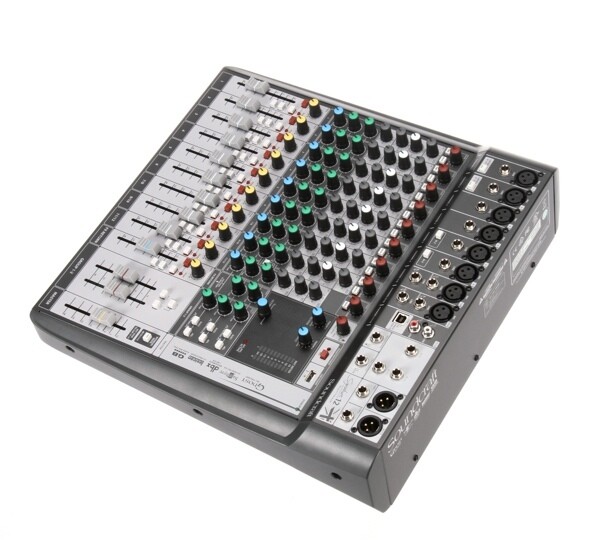

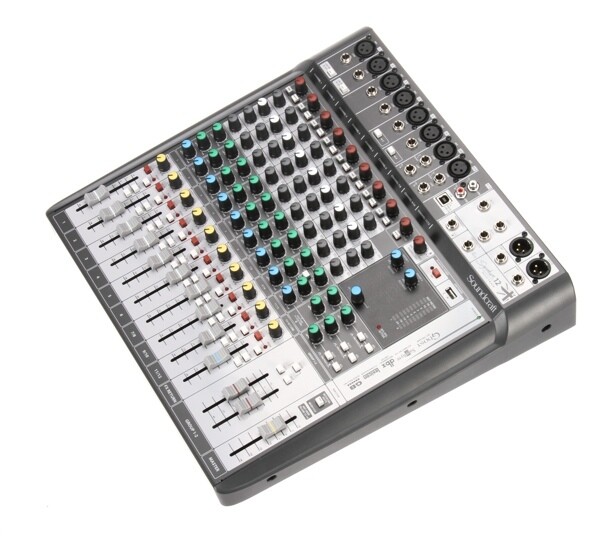

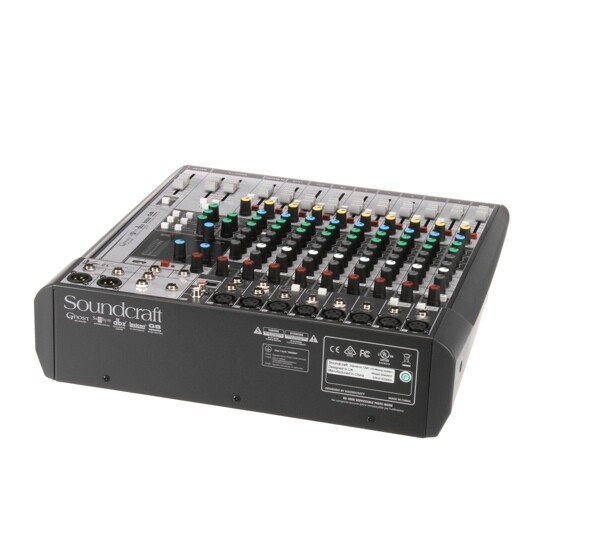

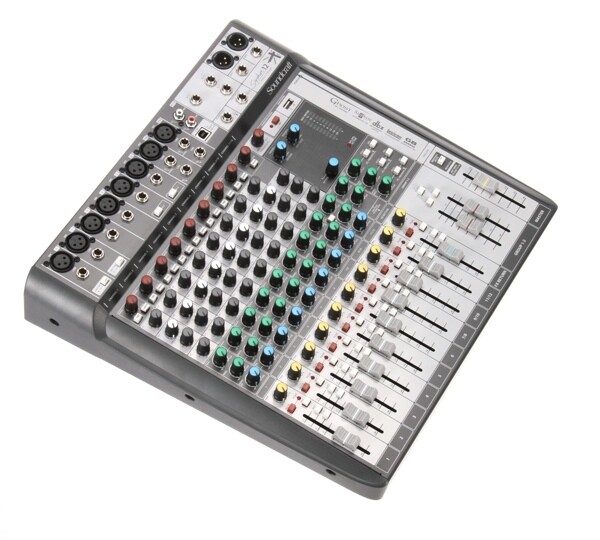

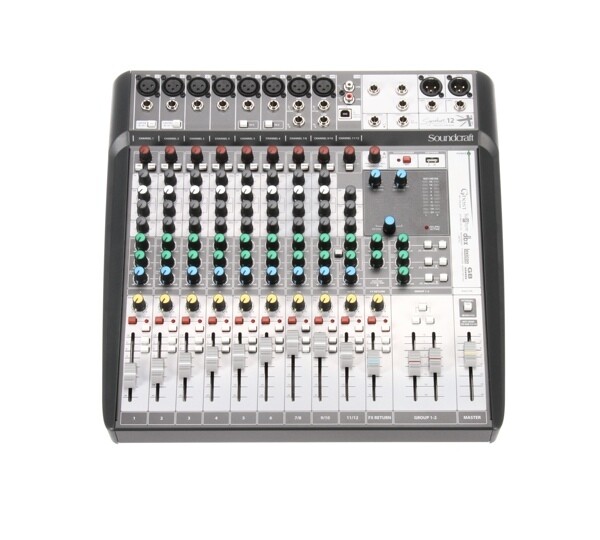

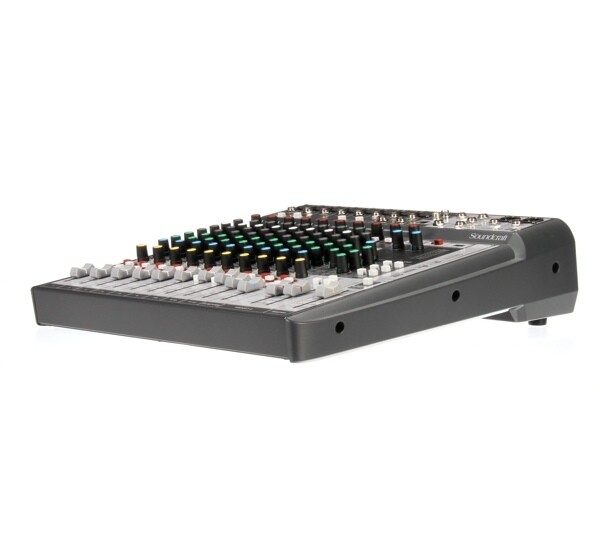

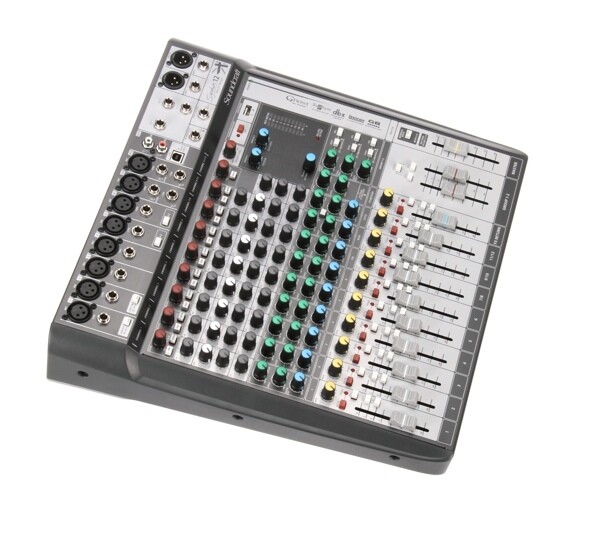

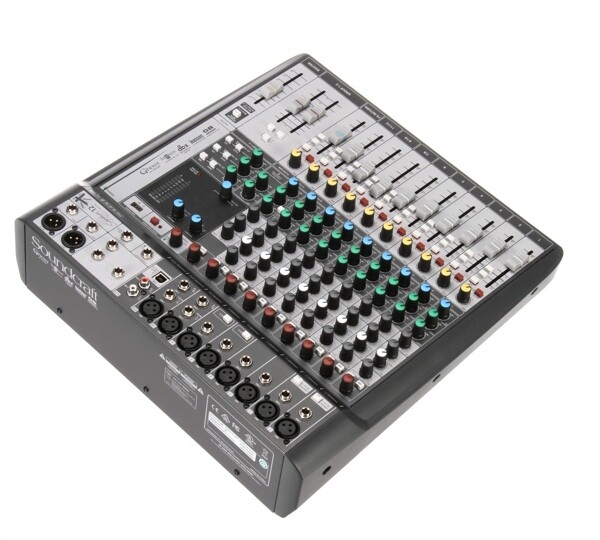

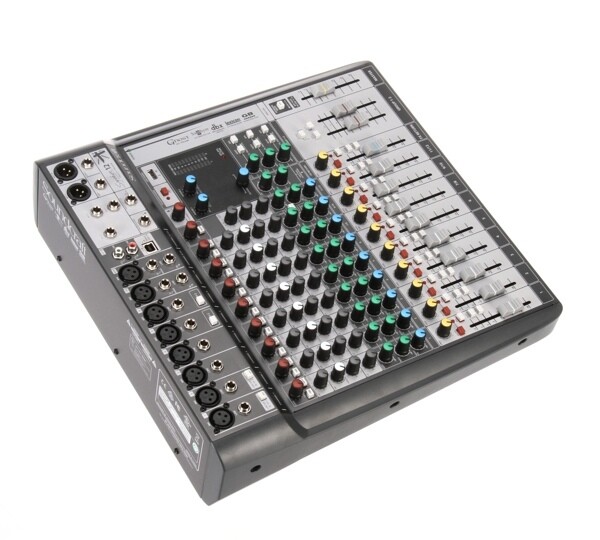

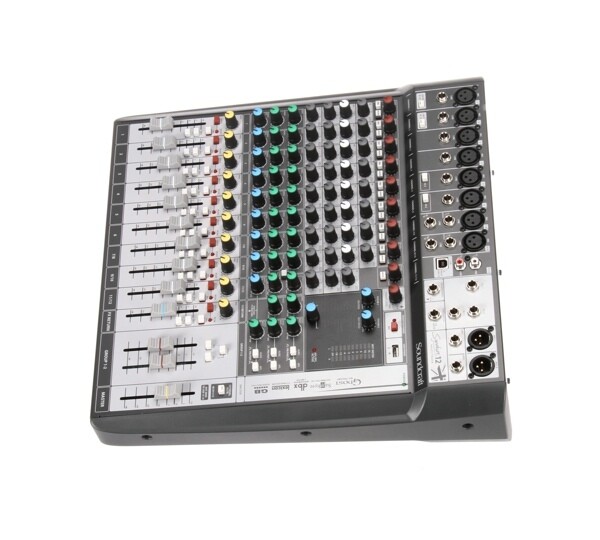

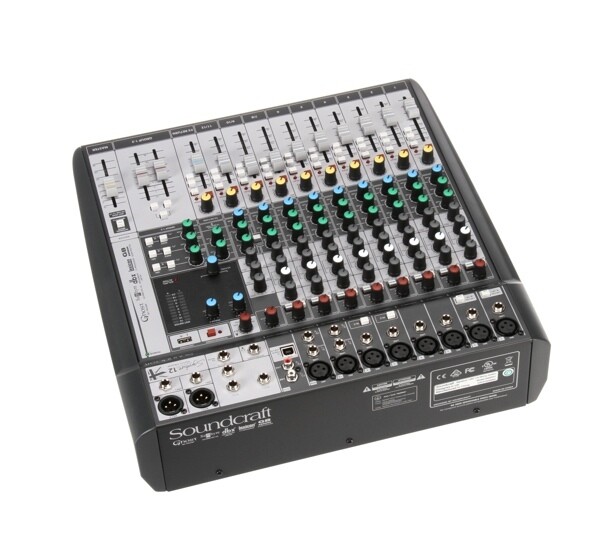

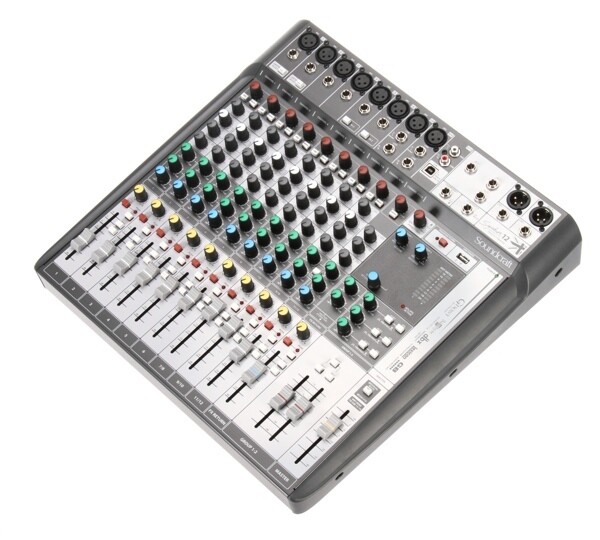

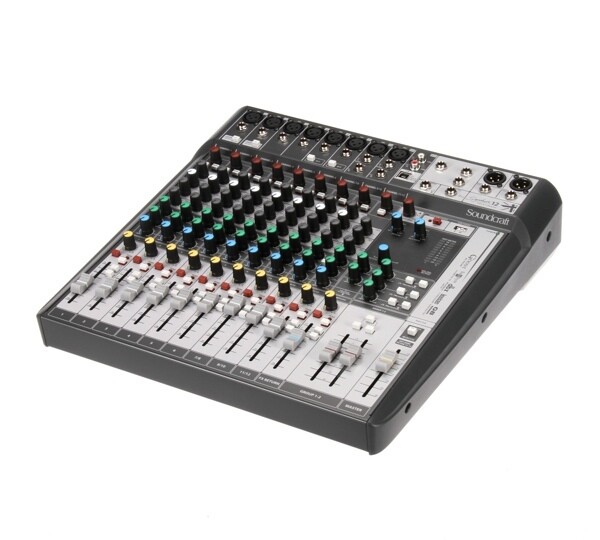

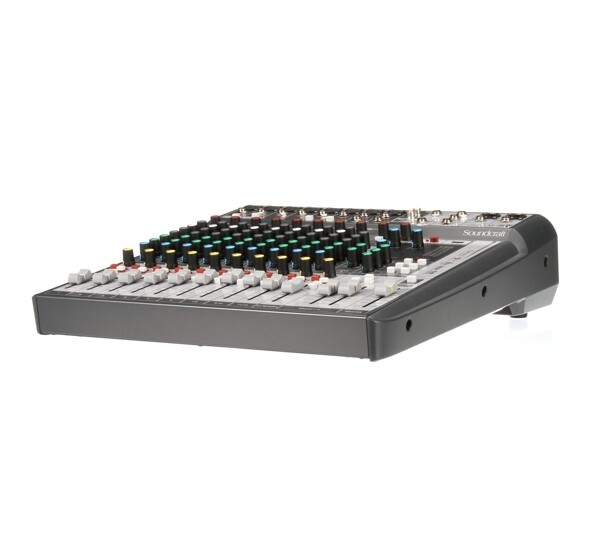

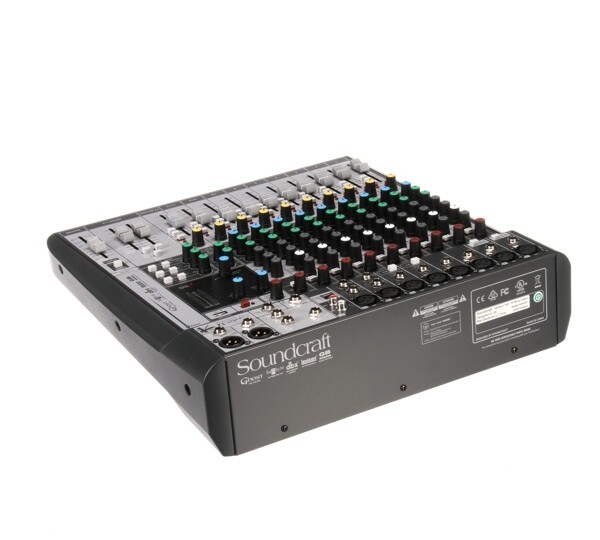

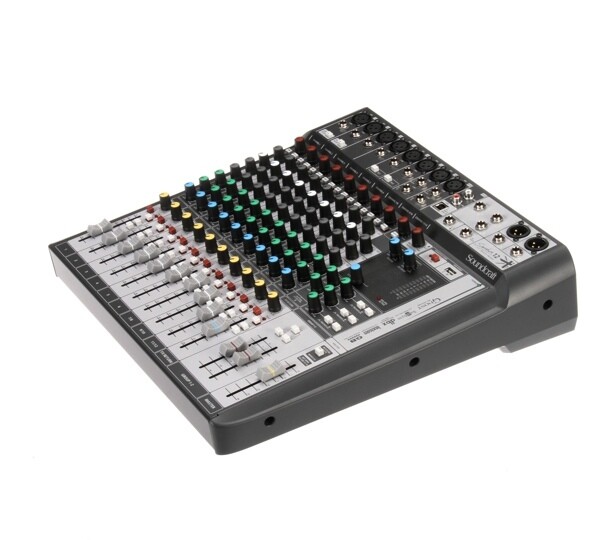

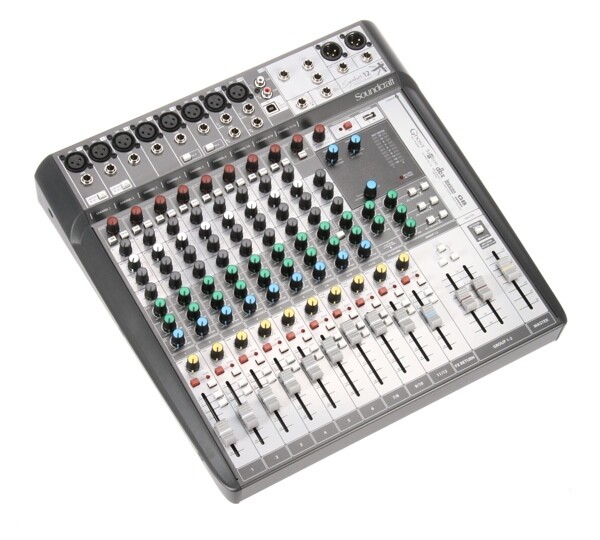

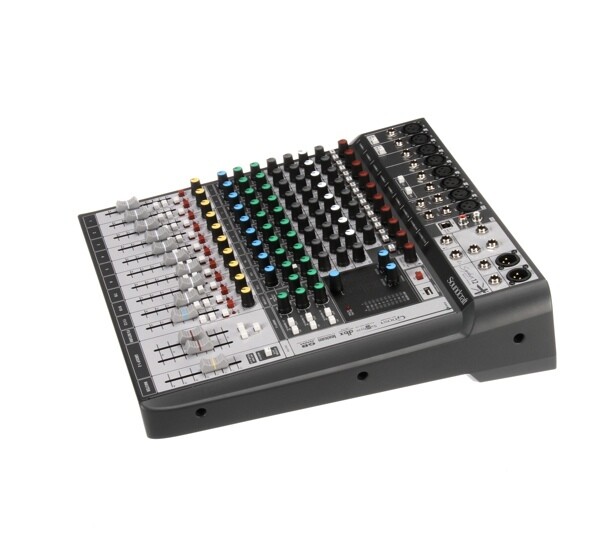

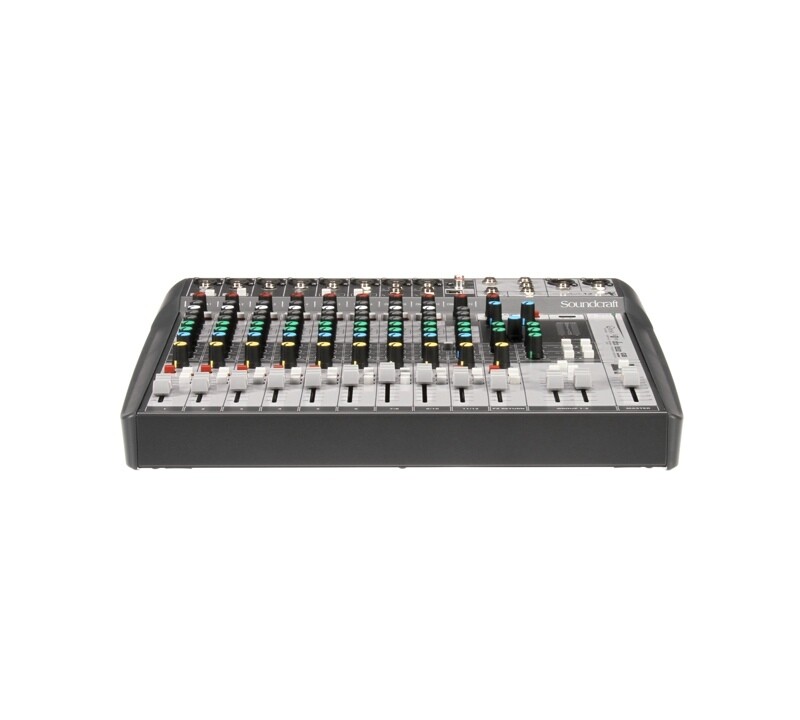

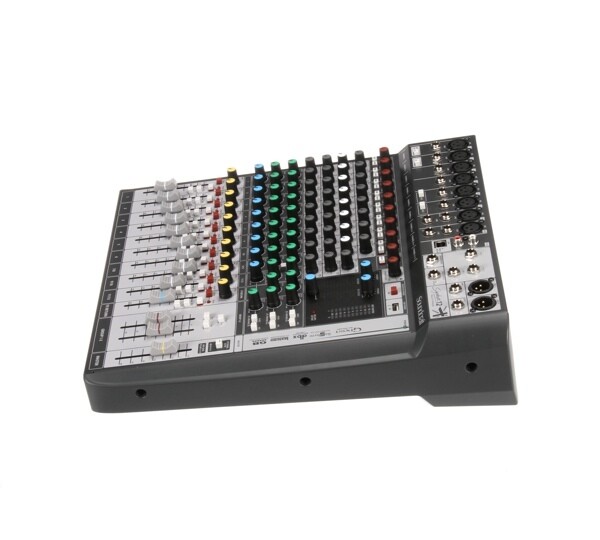

Soundcraft Signature 12 MTK 12-Input Multitrack Mixer with Effects #SOS12MTKME MFR #5049557

Key Features

12-Input Analog Mixer
8 Ghost Mic Preamps
Sapphyre British EQ per Channel
14-In / 12-Out USB Recording

The Soundcraft Signature 12 MTK is a 12-input analog mixer with on-board effects, and multitrack USB recording and playback. The Signature 12 MTK features faders with GB Series audio routing, flexible pre/post switching on each Aux, subgroups with powerful routing and switching options, and dedicated outputs. Housed in a robust metal

Soundcraft Signature 12 Overview

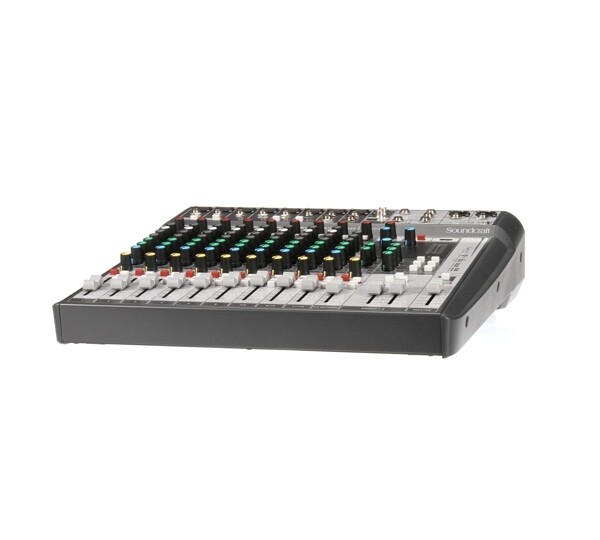

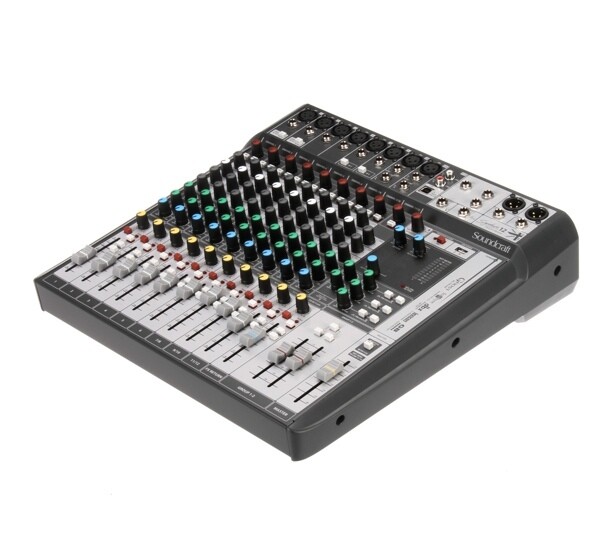

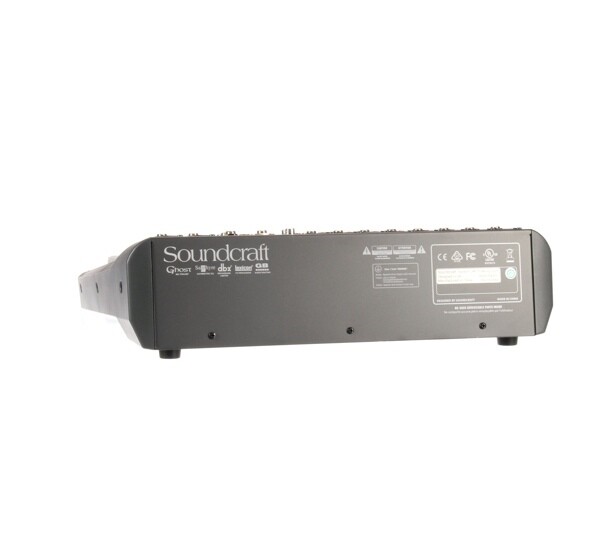

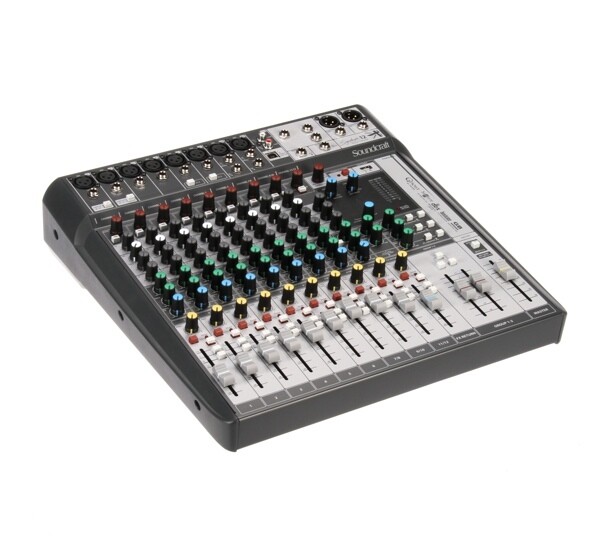

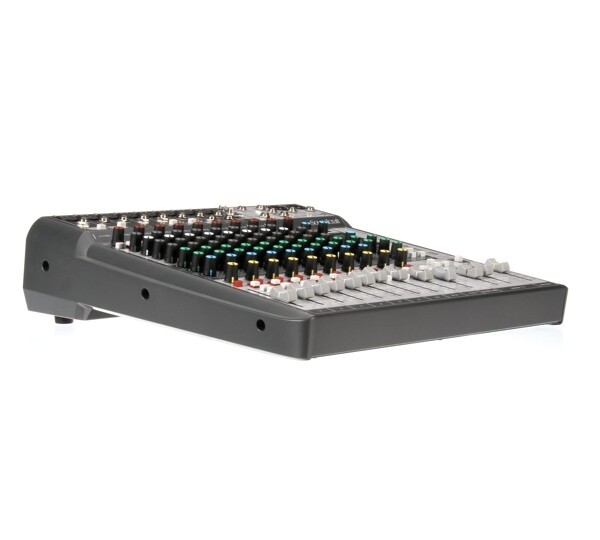

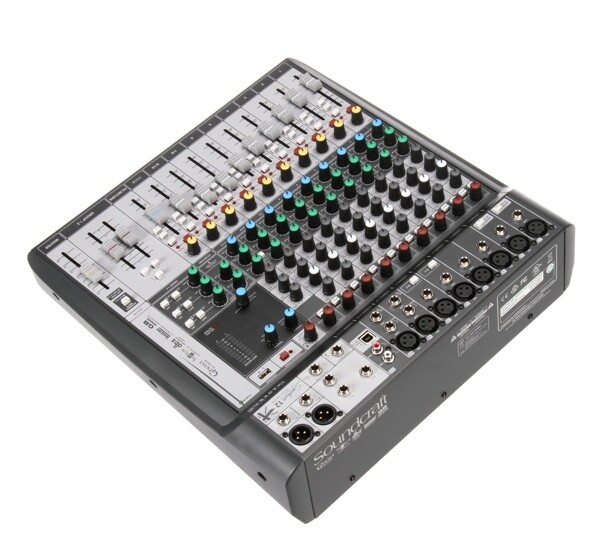

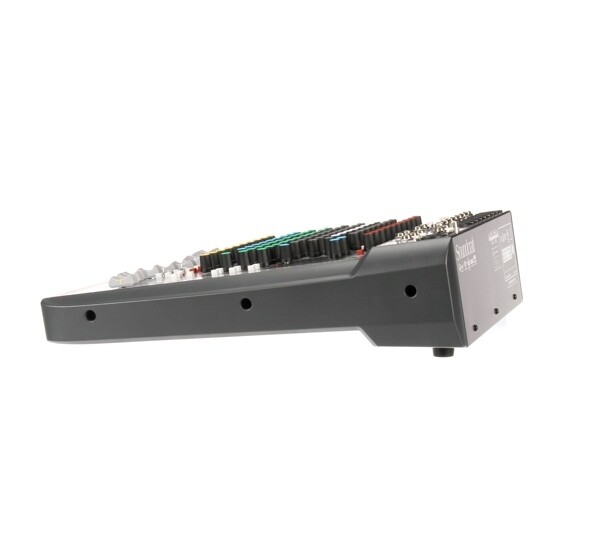

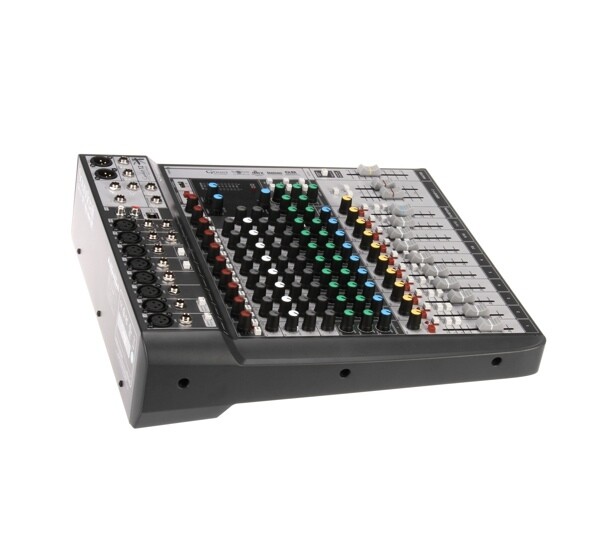

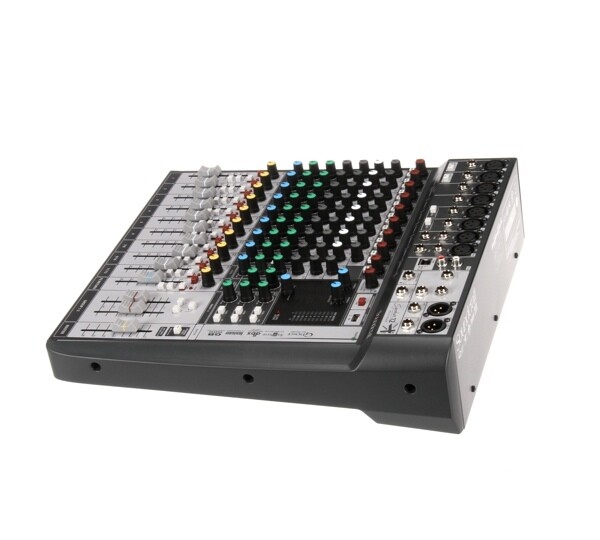

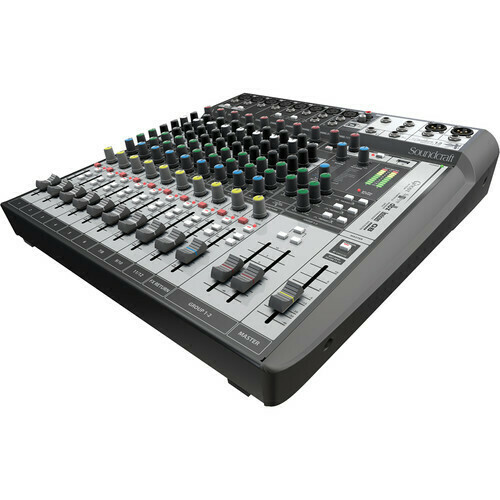

The Soundcraft Signature 12 MTK is a 12-input analog mixer with on-board effects, and multitrack USB recording and playback. The Signature 12 MTK features faders with GB Series audio routing, flexible pre/post switching on each Aux, subgroups with powerful routing and switching options, and dedicated outputs. Housed in a robust metal construction and equipped with an internal universal power supply, this mixer is recommended for use by musicians and bands, in music venues and theaters, for tour sound, houses of worship, and more.

The built-in Ghost microphone preamps deliver high-quality audio with a wide dynamic range, clarity, and a high level of headroom. Additionally, the mixer uses Sapphyre Asymetric EQ for equalizing every vocal and instrumental element in a mix, and GB Series audio routing technology. The mixer provides a wide variety of built-in Lexicon studio-grade effects including reverb, chorus, and modulation, as well as dbx limiters on the input channels. To enable studio plug-ins to be integrated with live performances, the mixer incorporates a multi-track USB audio interface which allows any VST/AU/AAX/TDM/RTAS plug-in to be inserted on any input channel. XLR and switchable Hi-Z inputs enable guitars, basses, and other instruments to be connected directly.

The Signature 12 MTK comes with a 14-in / 12-out USB interface and free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.

High-performance 12-input small format analog mixer with onboard effects

Multitrack USB recording and playback

14-in / 12-out low latency USB playback and recording interface

Ghost mic preamps with low noise performance

Sapphyre British EQ with sweepable mid-bands per channel

Lexicon effects engine featuring reverbs, delays, choruses, and modulations

dbx limiters (high-ratio compressors) on input channels

Switchable Hi-Z inputs for guitars, basses, and other instruments

Hi-pass filters (low-cut) and 48V phantom power on all mic channels

Comprehensive GB Series audio routing with Auxes (flexible pre/post switching) and subgroups with switching and dedicated outputs

Smooth faders

Robust metal construction for tour-grade build quality and reliability

Internal universal power supply

Soundcraft Signature 12 Specs

Frequency Response	Mic / Line In to Any Output: 20 Hz to 20 kHz (±1.5 dB)
THD	Mono Mic Sensitivity -30 dBu, Input Level -16 dBu, +14 dBu @ Mix Output: < 0.002% @ 1 kHz Stereo Mic Sensitivity -30 dBu, Input Level -16 dBu, +14 dBu @ Mix Output: < 0.007% 1 kHz
Noise	Mono Mic Input E.I.N. (Max Gain): <-126 dBu (150 Ohm source) Stereo Mic Input E.I.N. (Max Gain): <-124 dBu (150 Ohm source)
Crosstalk @ 1 kHz	Channel Mute: >-90 dB Fader Cut-off (rel +10 mark): >-90 dB Aux Send Pots Offness: >-82 dB
EQ Section	EQ (Mono Inputs) HF: 12 kHz, ±15 dB MF (swept): 140 Hz to 3 kHz, ±15 dB LF: 60 Hz, ±15dB EQ (Stereo Inputs) HF: 12 kHz, ±15 dB MF: 1 kHz, ±15 dB LF: 60 Hz, ±15 dB
Input & Output	Input and Output Levels Mic Input: +12.5 dBu max Line Input: >+26 dBu max Stereo Inputs: >+26 dBu max Mix Output: +21.5 dBu max Headphones (@ 150 Ohms): 300 mW
Impedance	Input & Output Impedance Mic Input: 1.2 kOhms Hi-Z Input: 968 kOhms Line Input: 10 kOhms Stereo Input: 21.5 kOhms Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced)
USB Audio	Inputs/Outputs: 14-in, 12-out Bit Depth: 16-bit, 24-bit Sampling Rate: 44.1 kHz / 48 kHz
Power Consumption	<70 VA
Operating Temperature	41 to 104°F / 5 to 40°C
Dimensions	19.3 x 17.9 x 8.3" / 49.0 x 45.5 x 21.0 cm
Weight	12.9 lb / 5.9 kg
