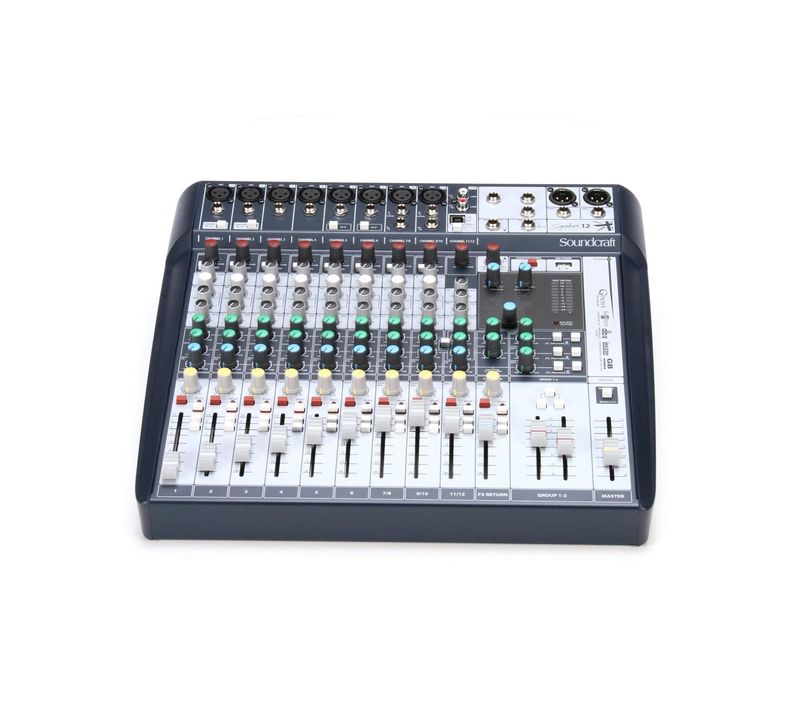

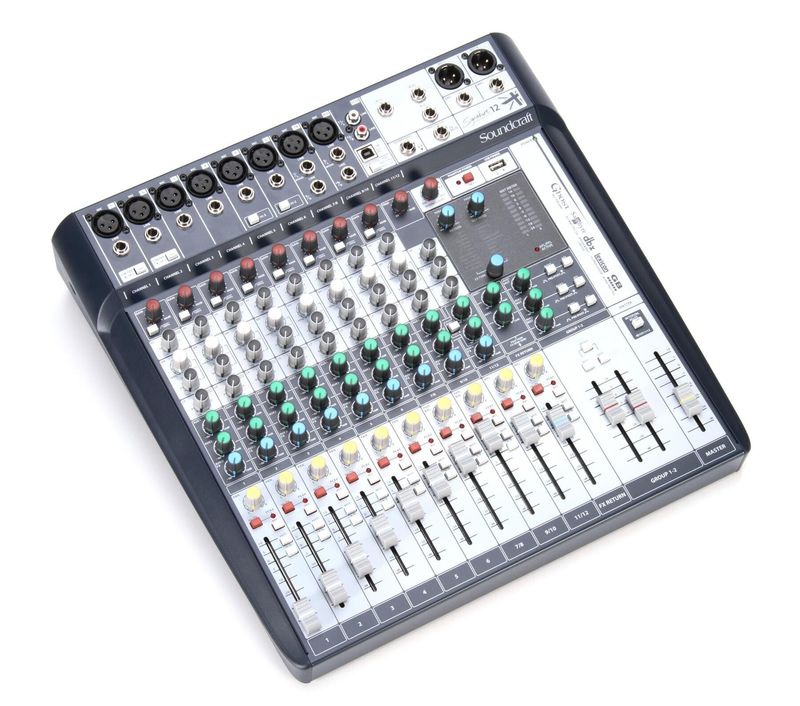

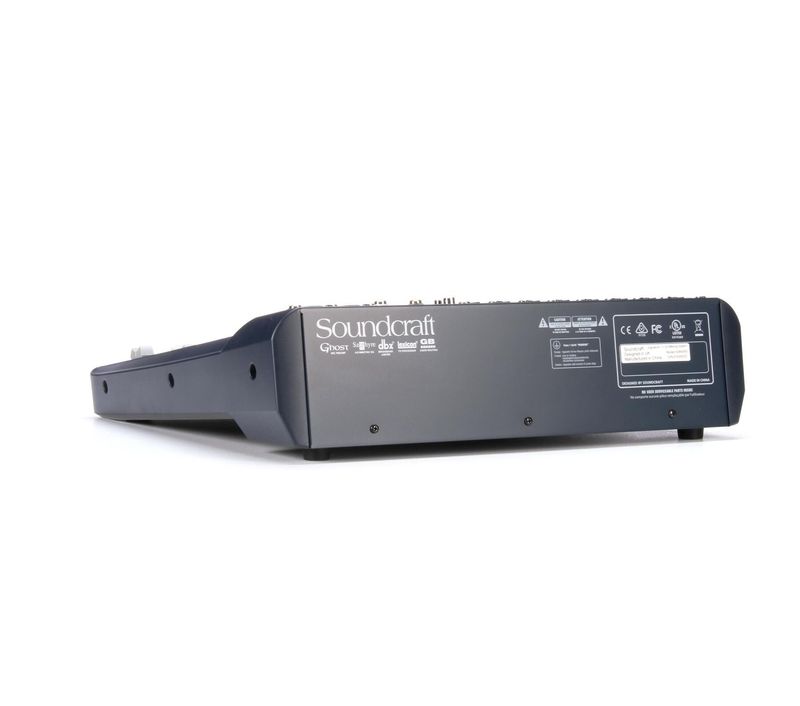

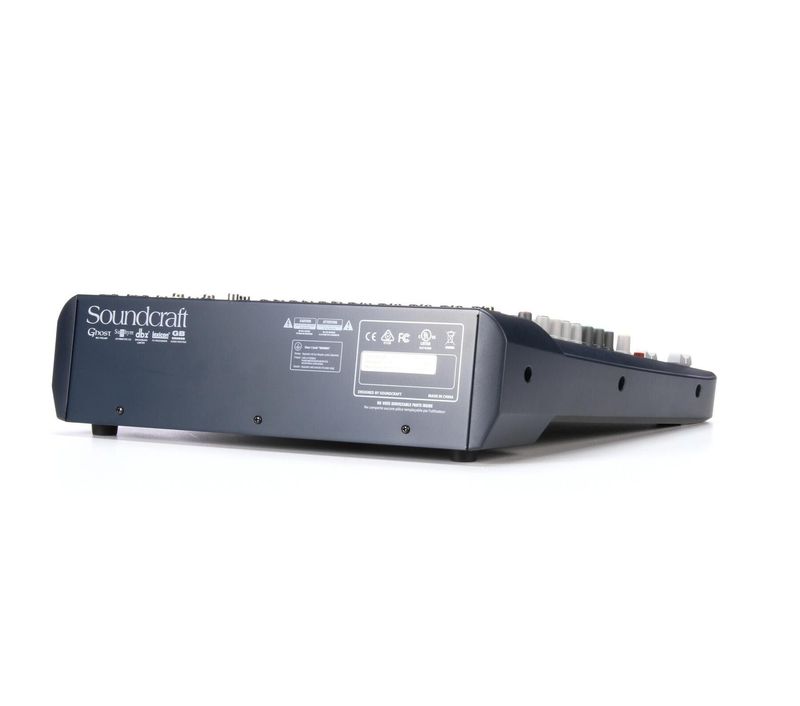

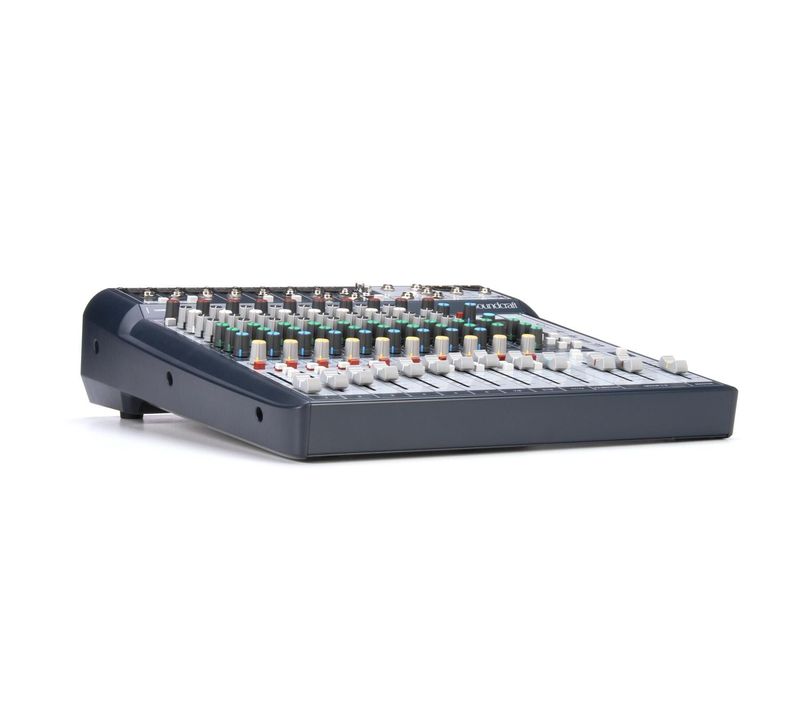

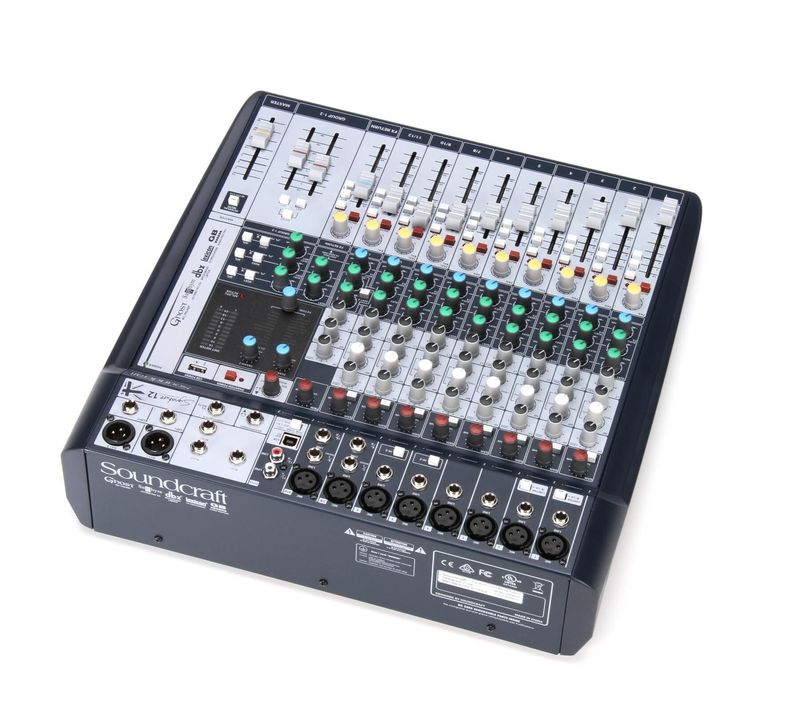

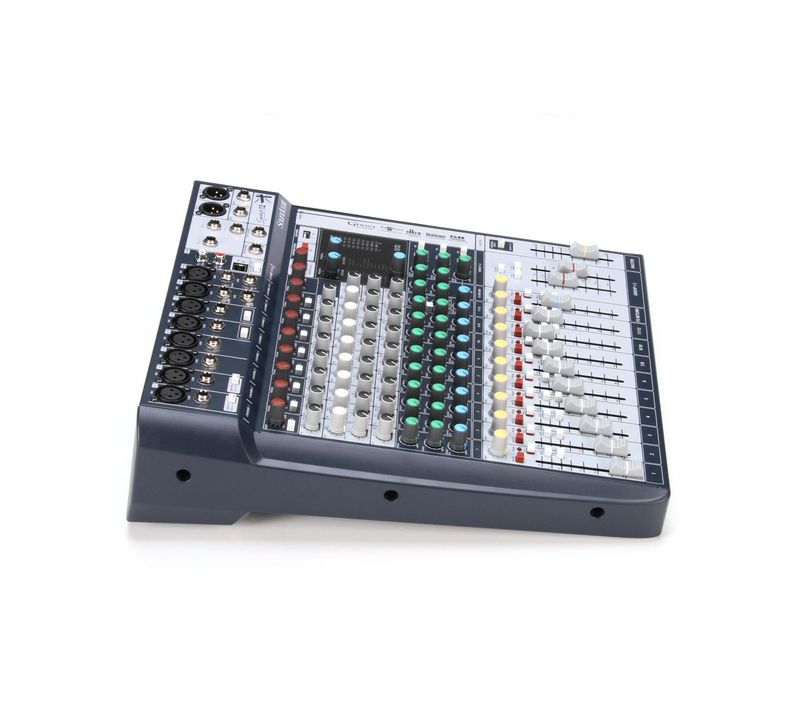

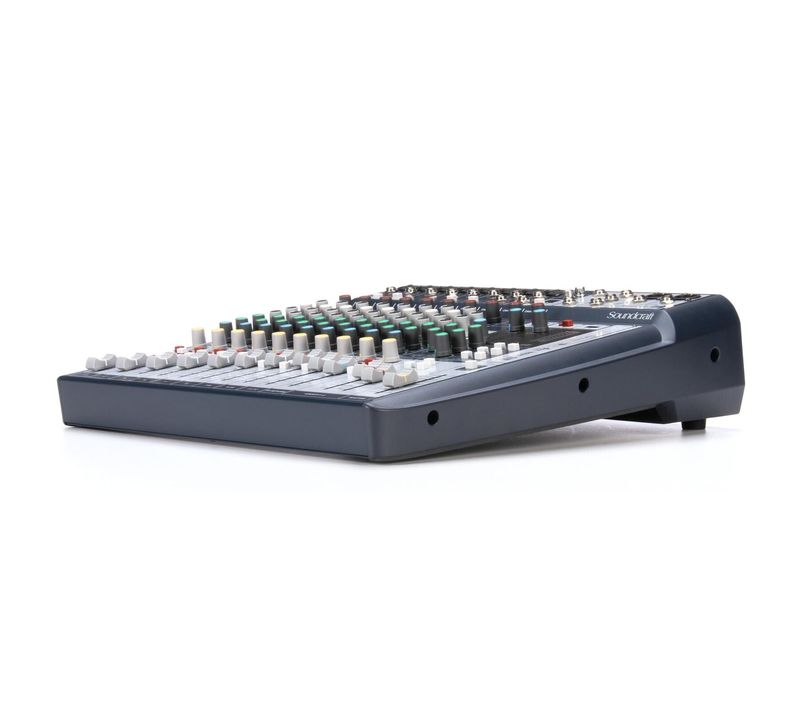

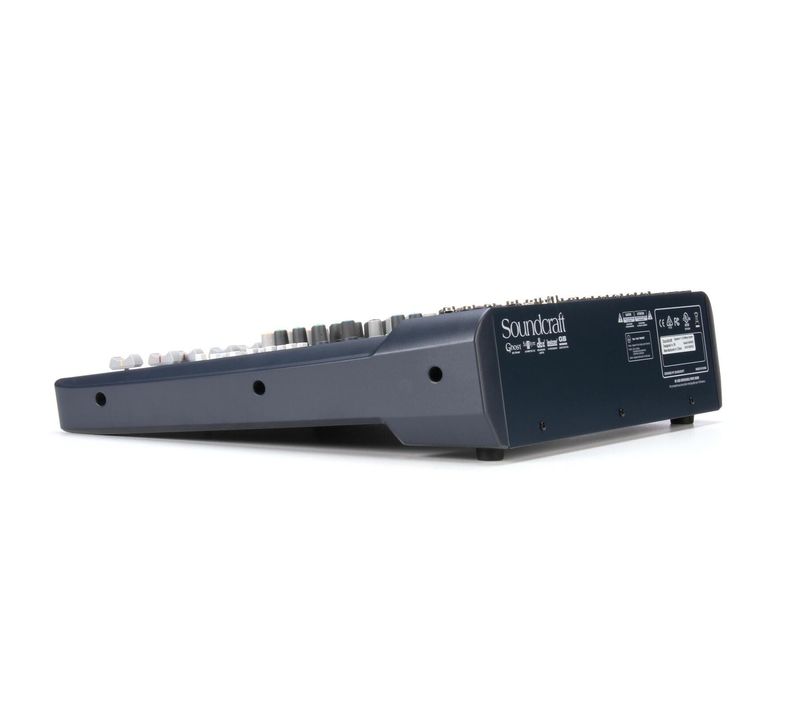

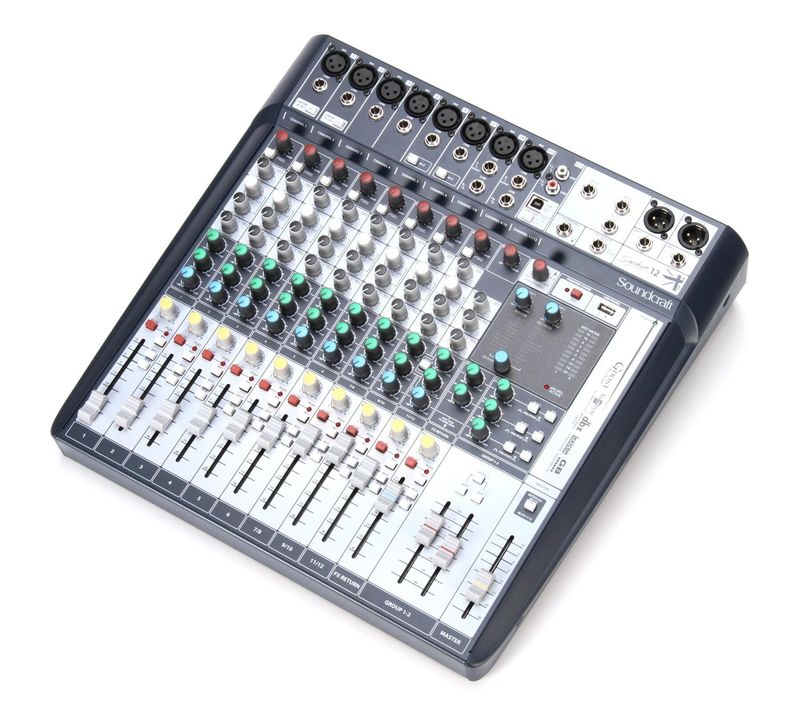

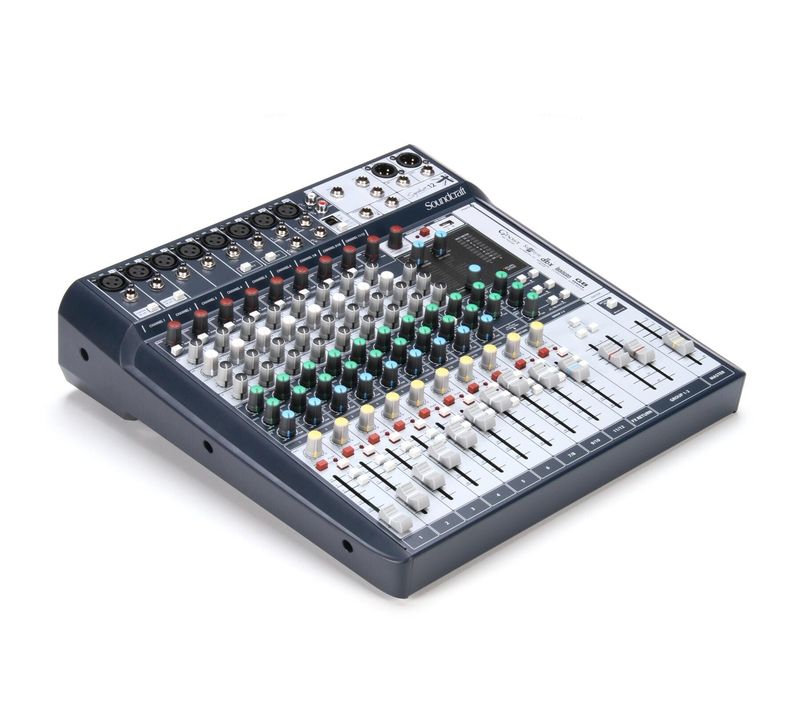

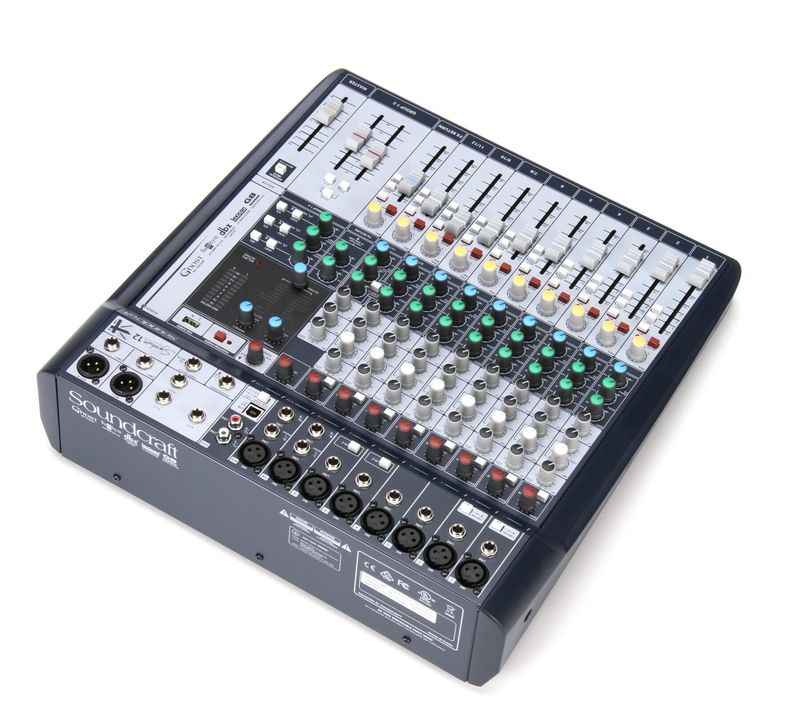

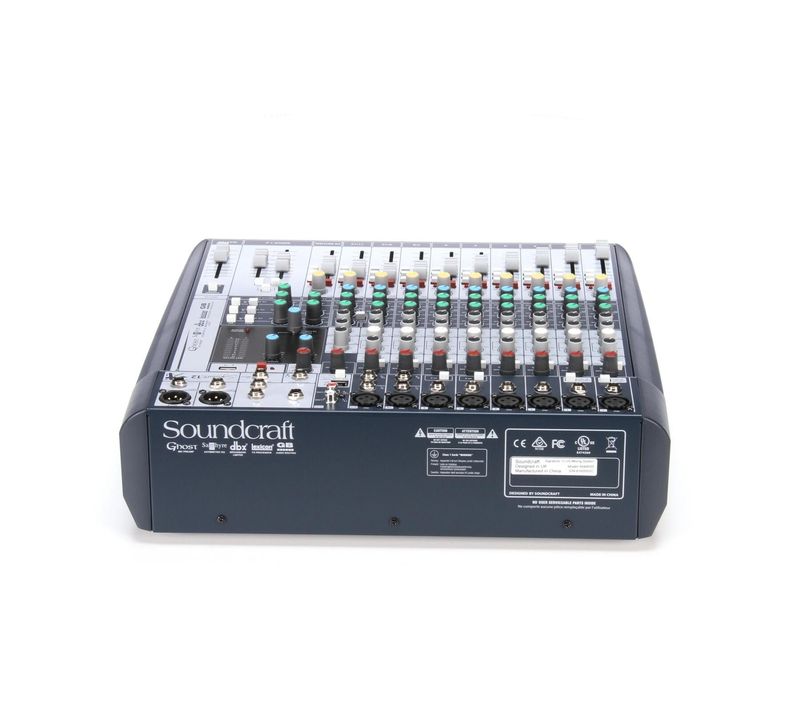

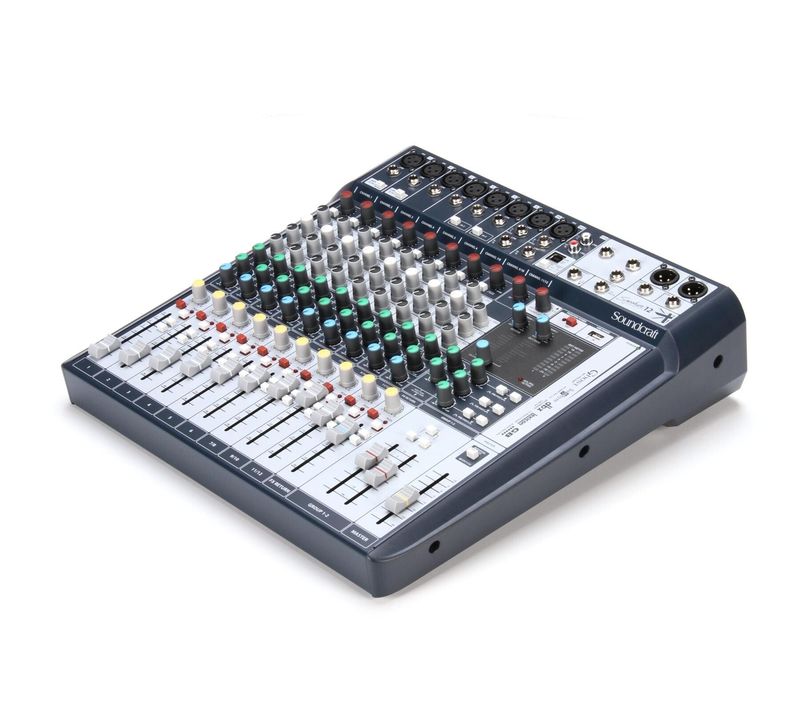

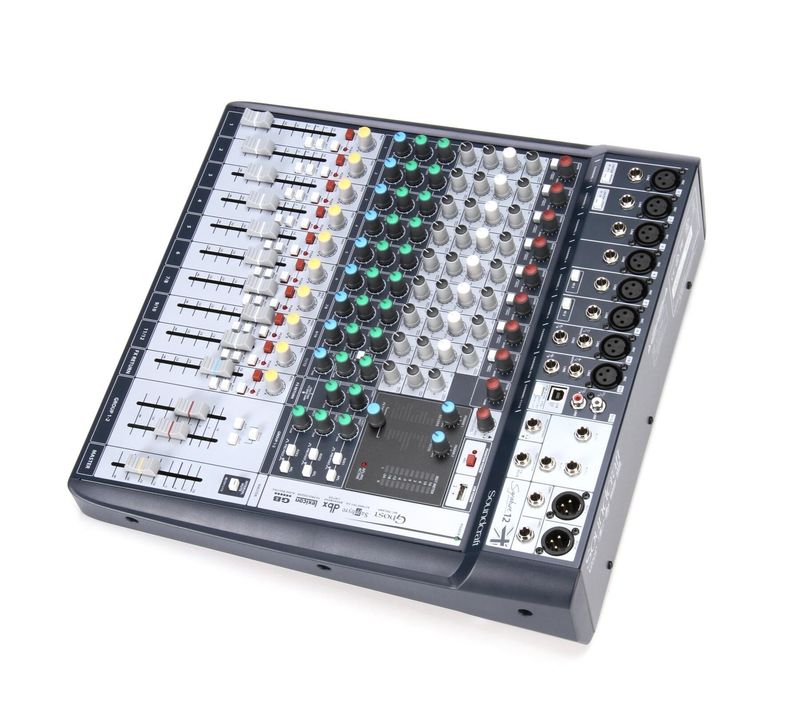

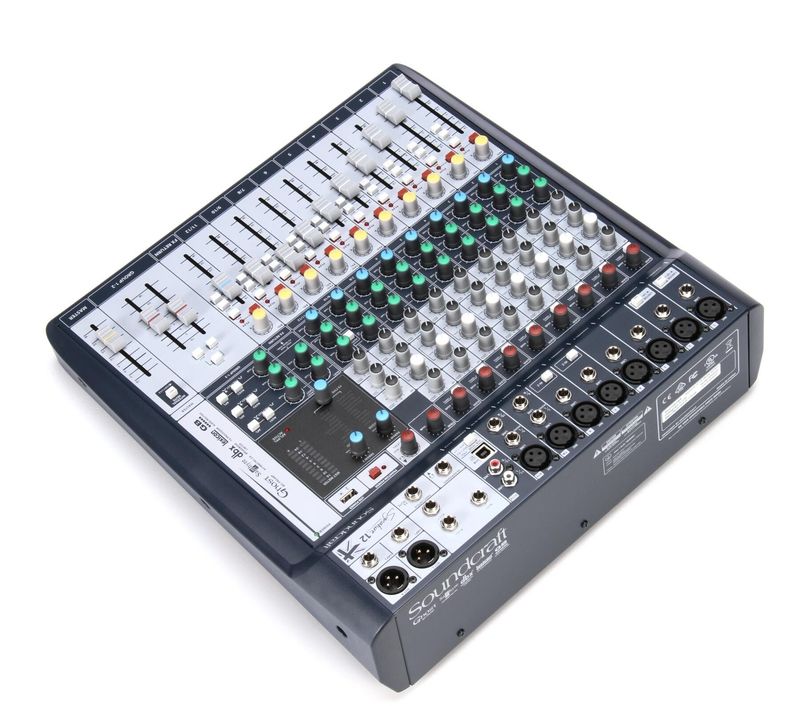

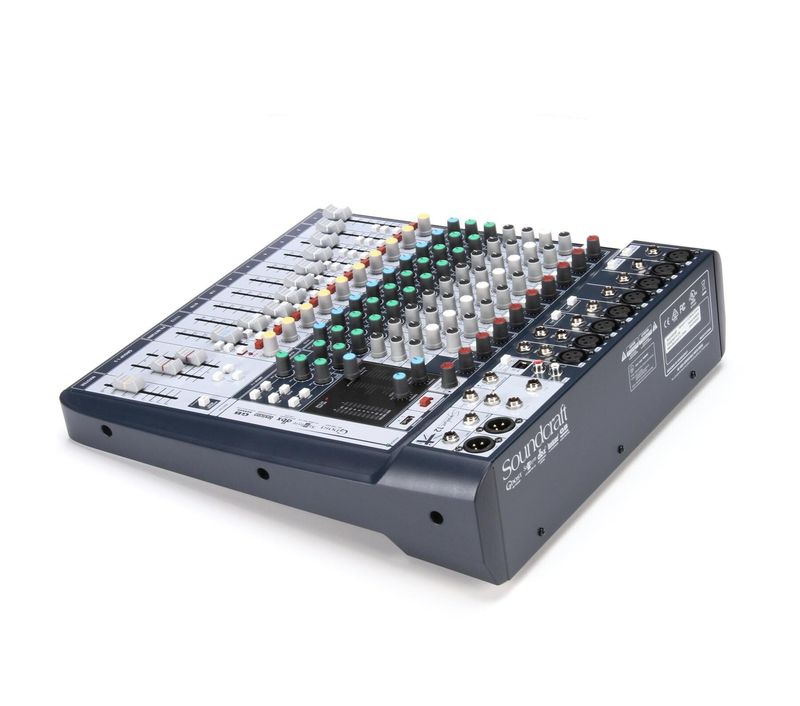

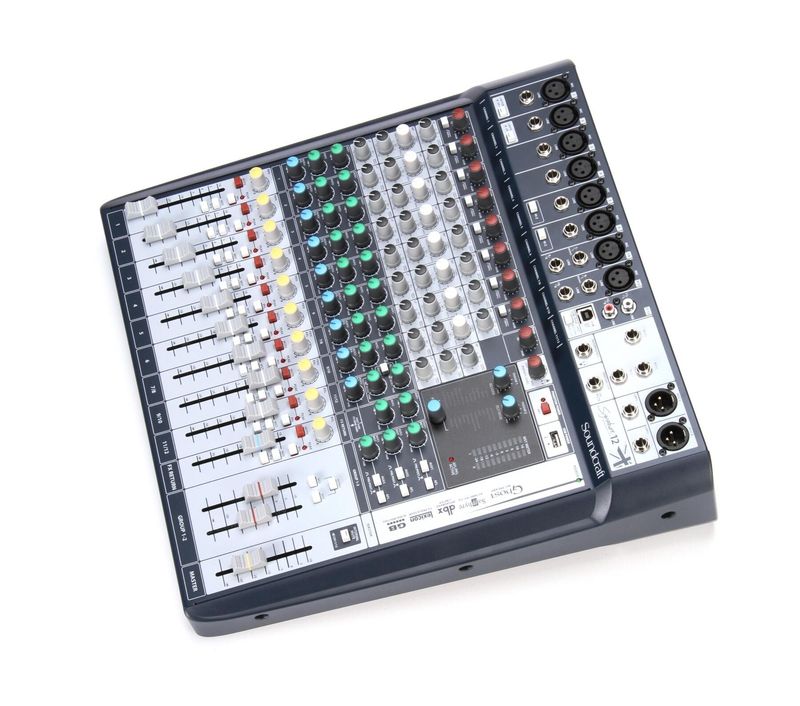

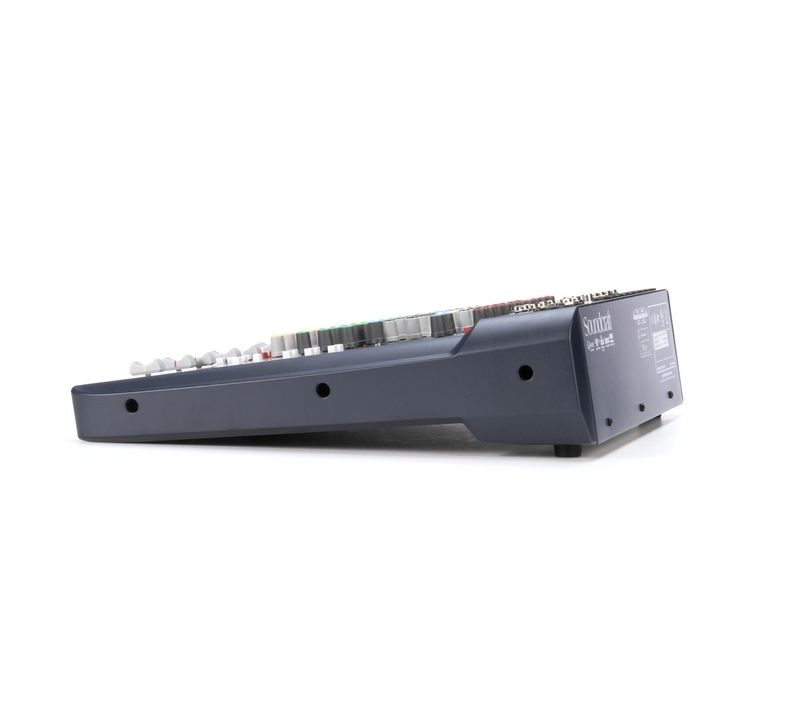

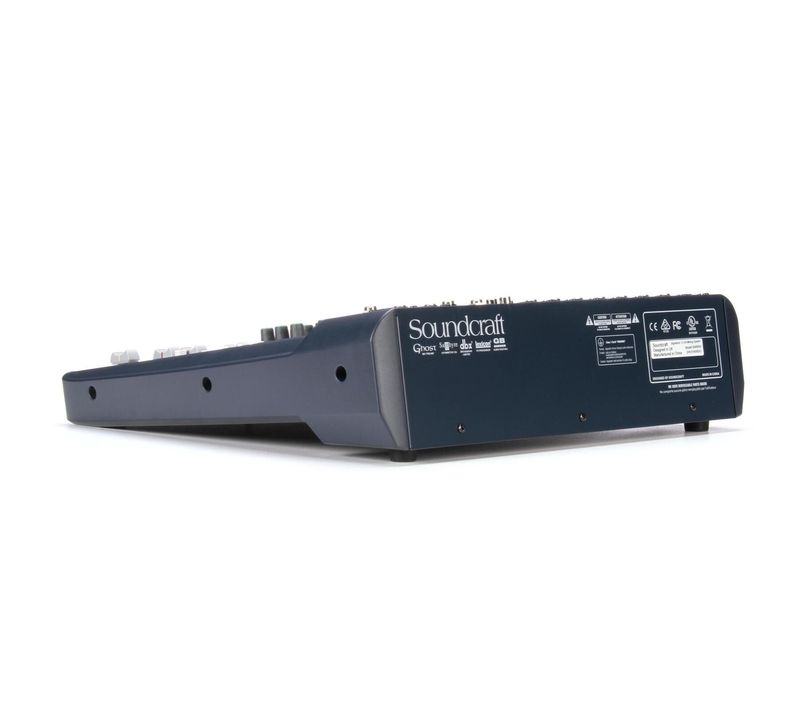

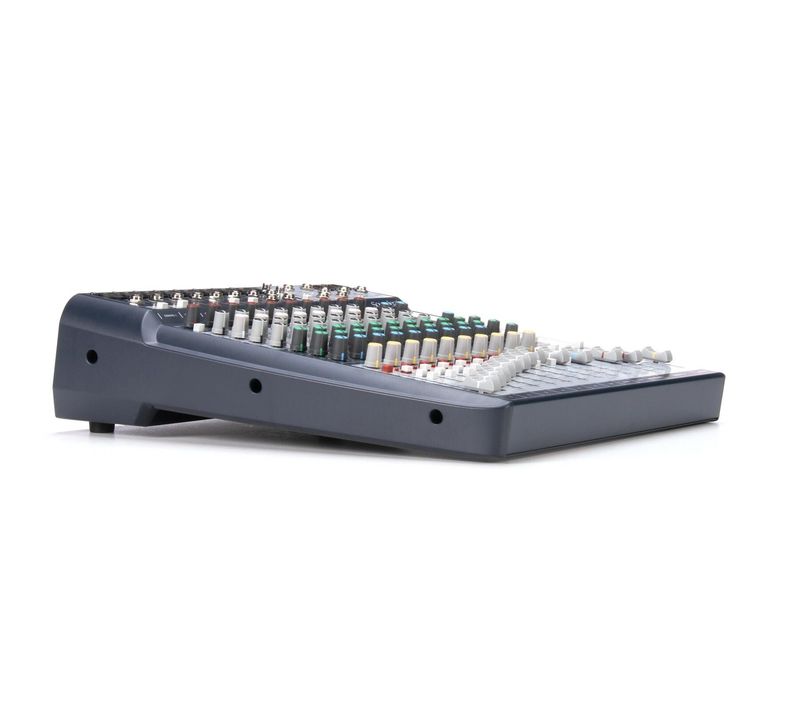

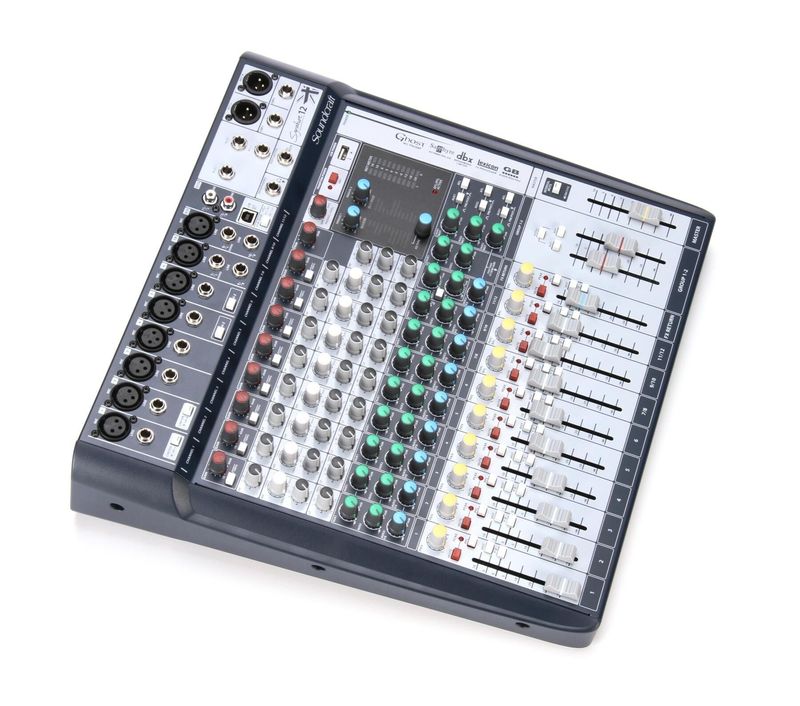

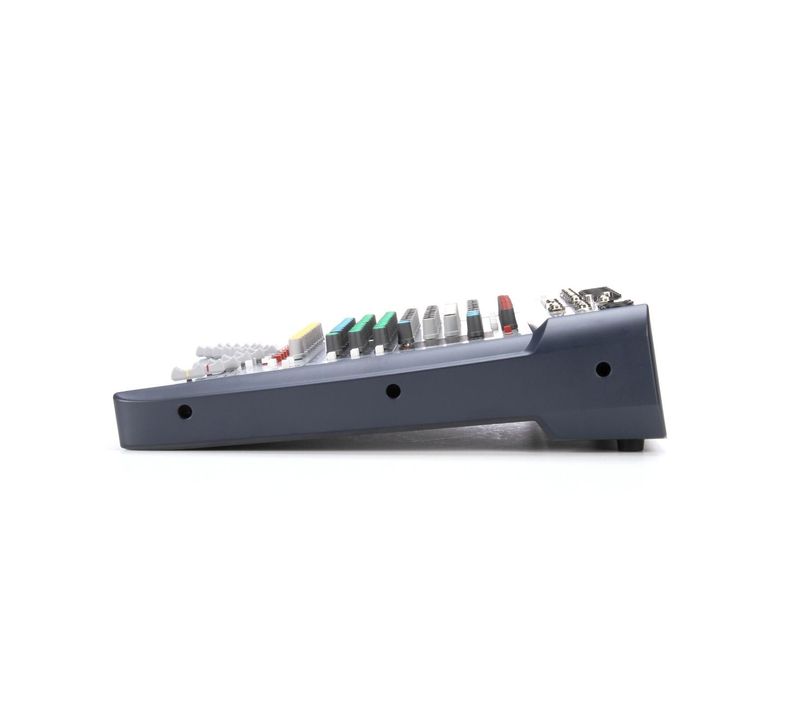

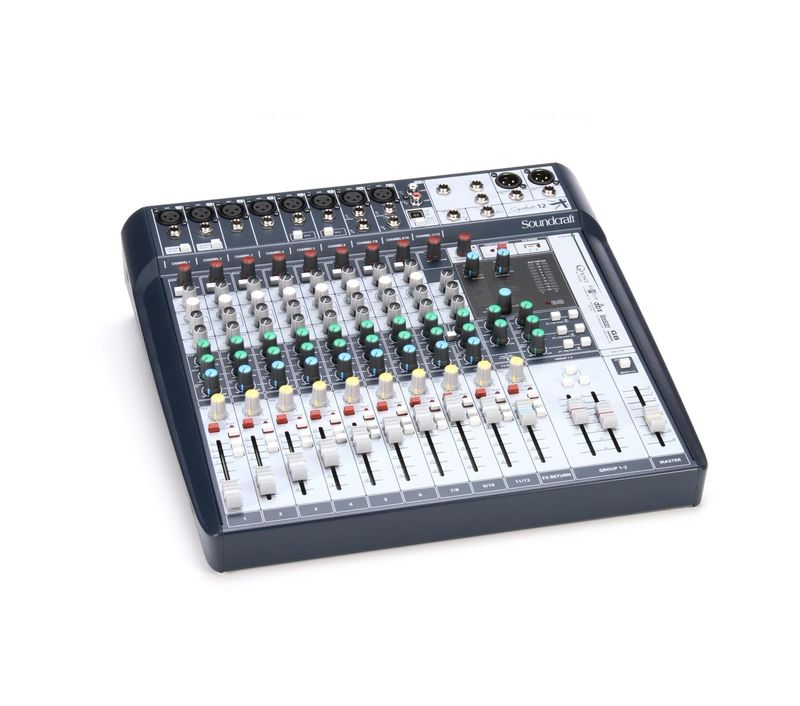

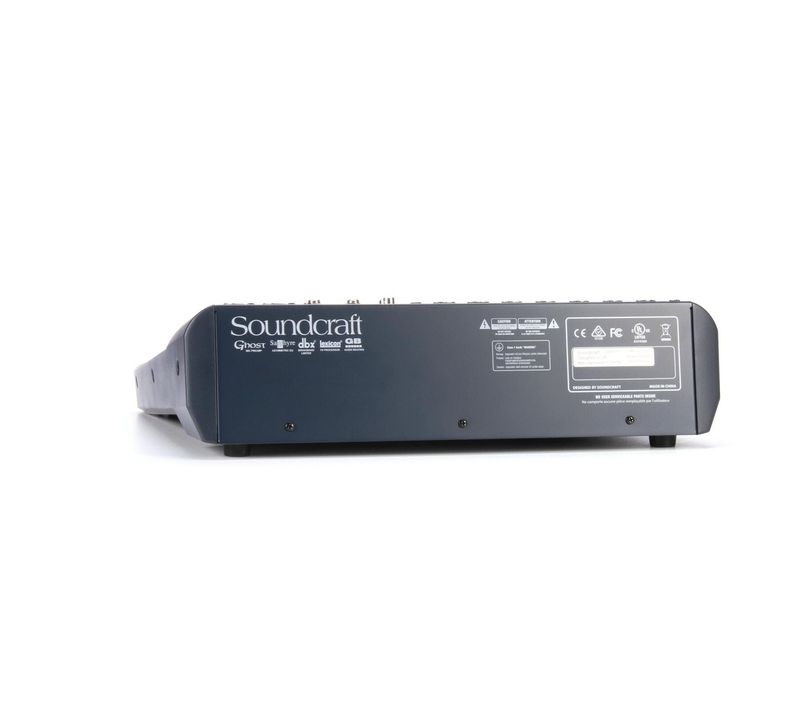

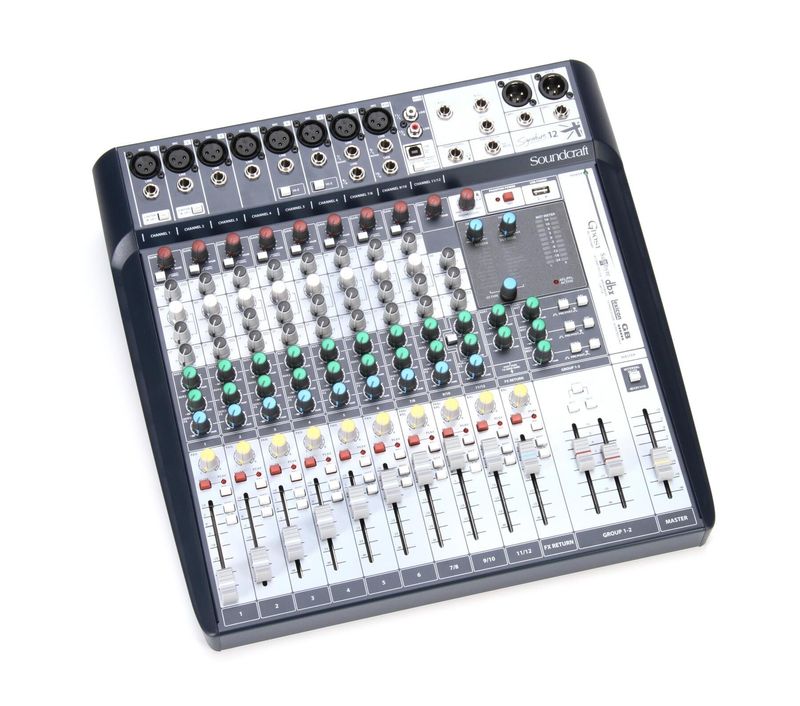

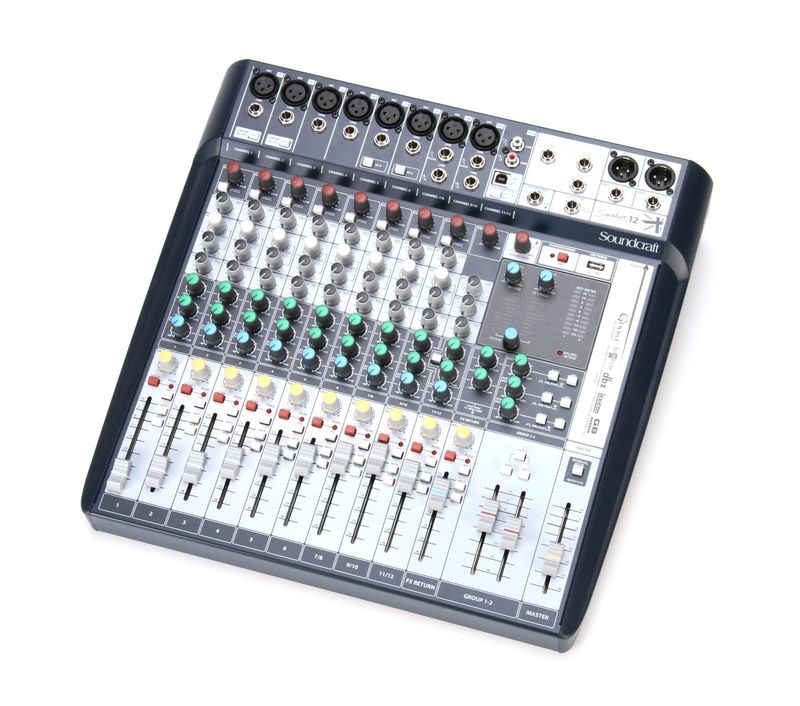

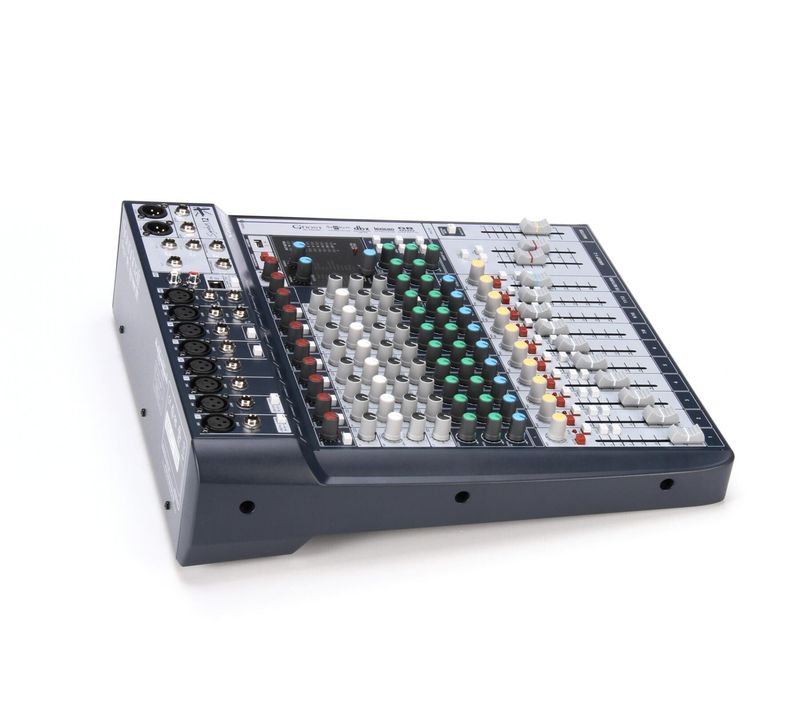

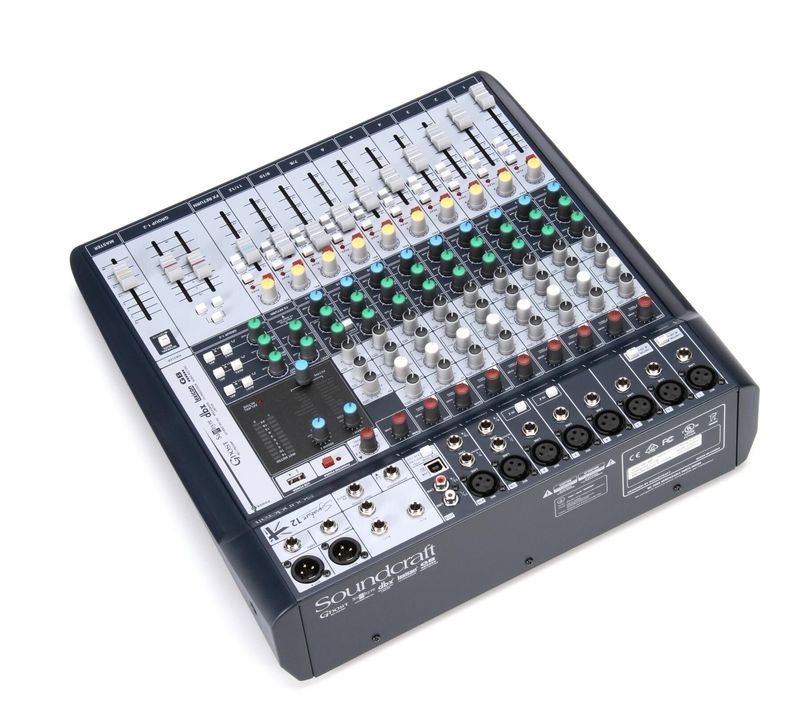

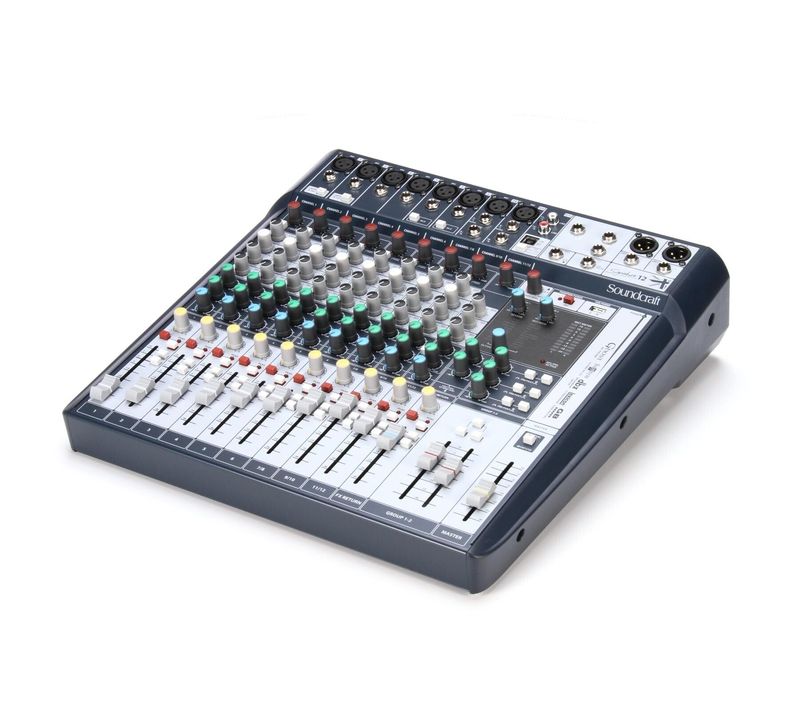

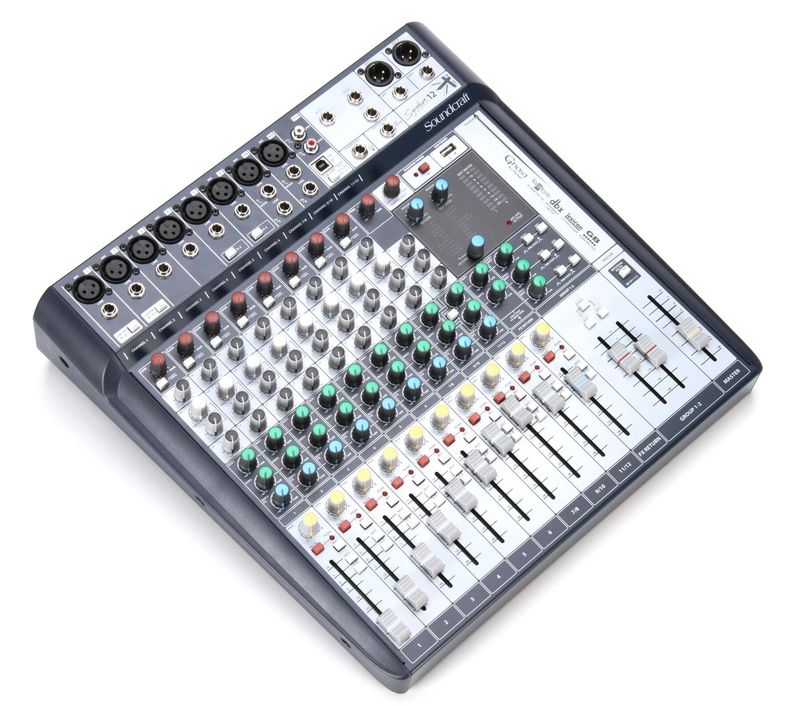

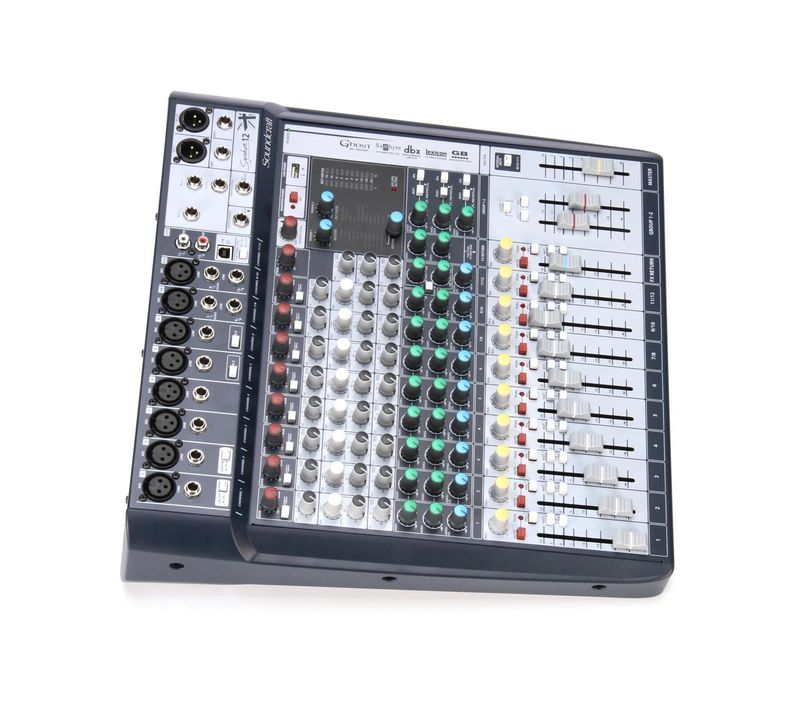

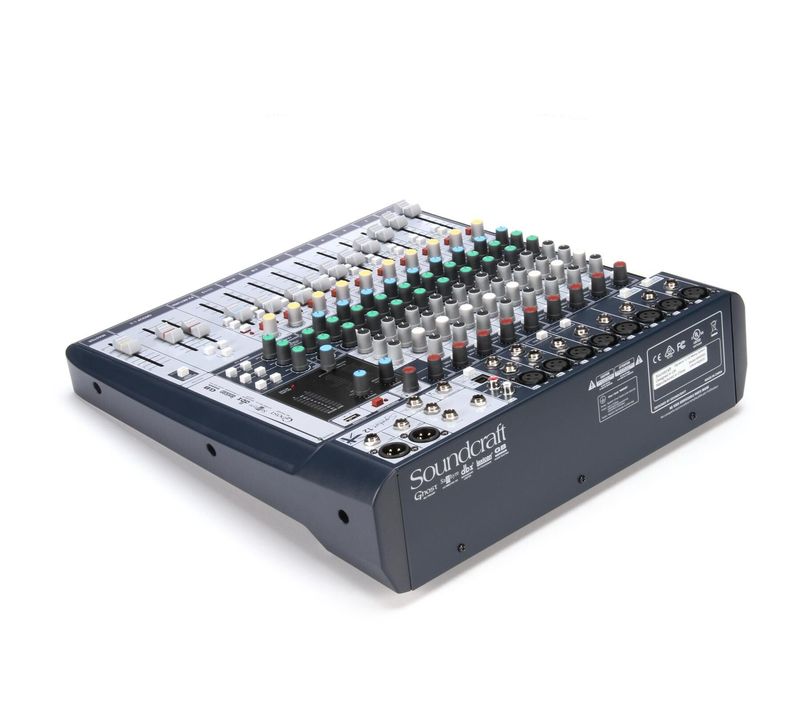

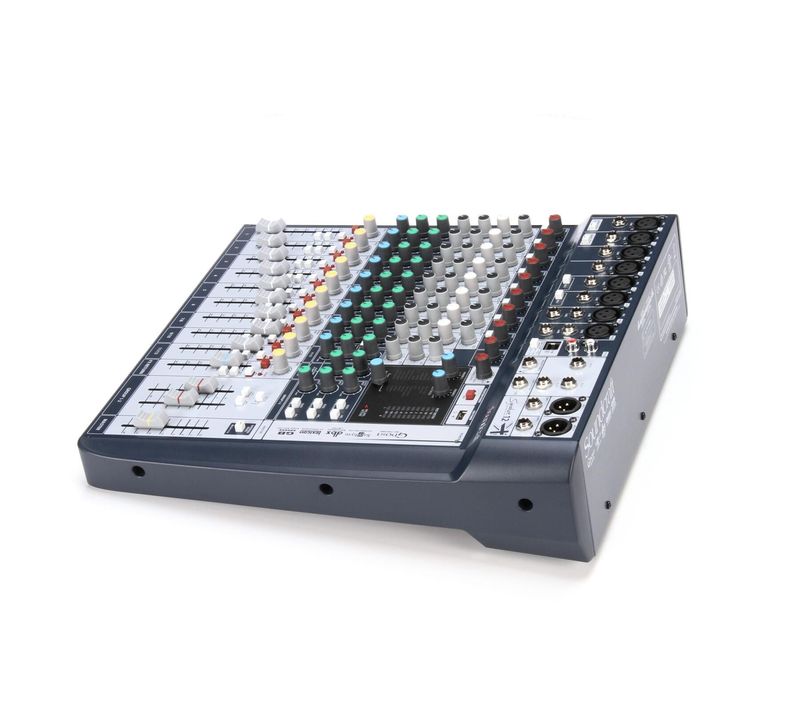

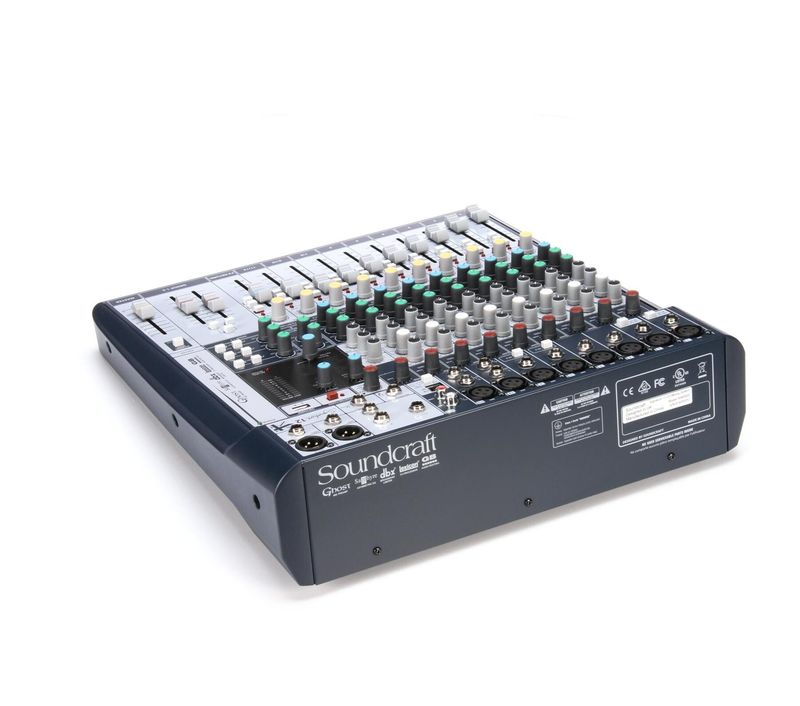

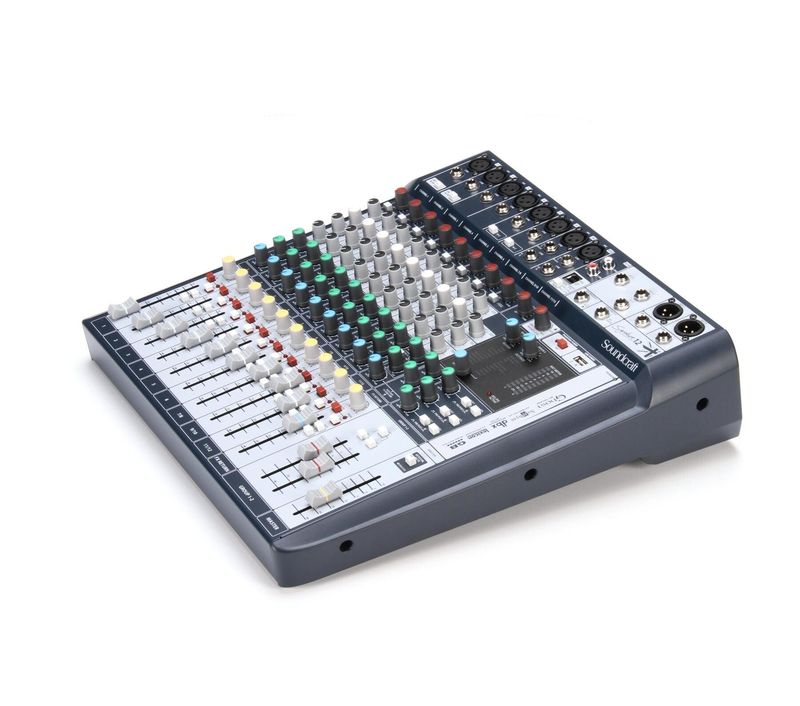

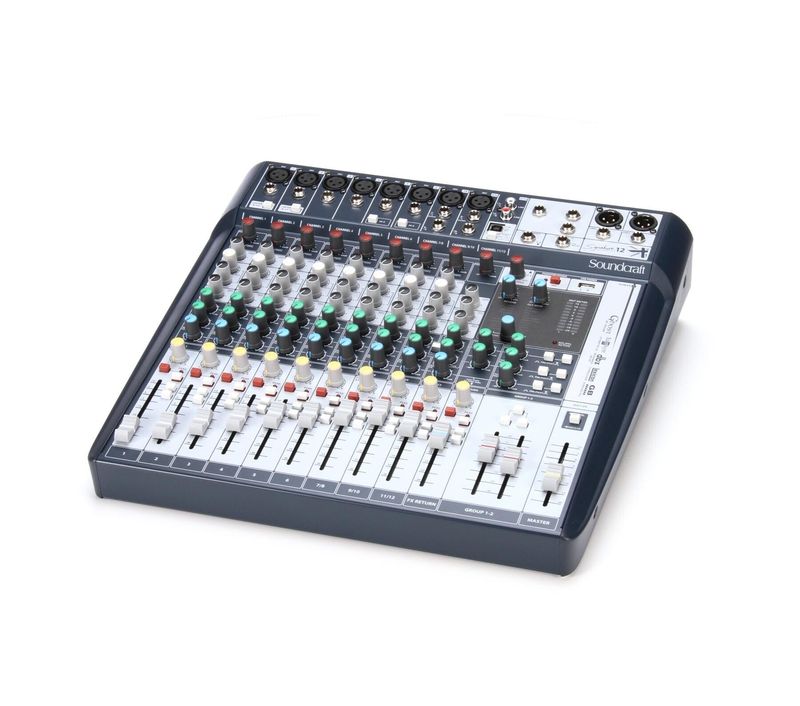

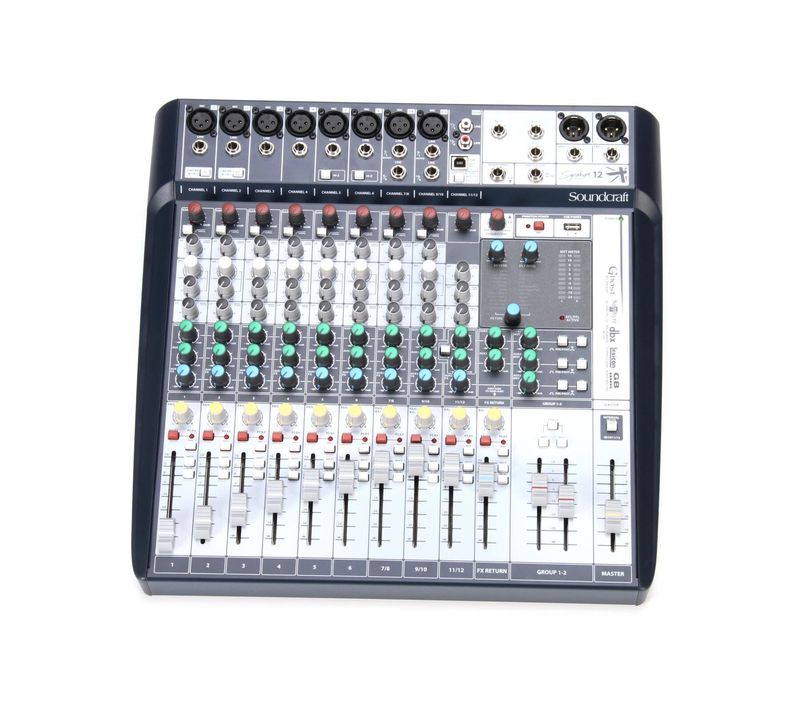

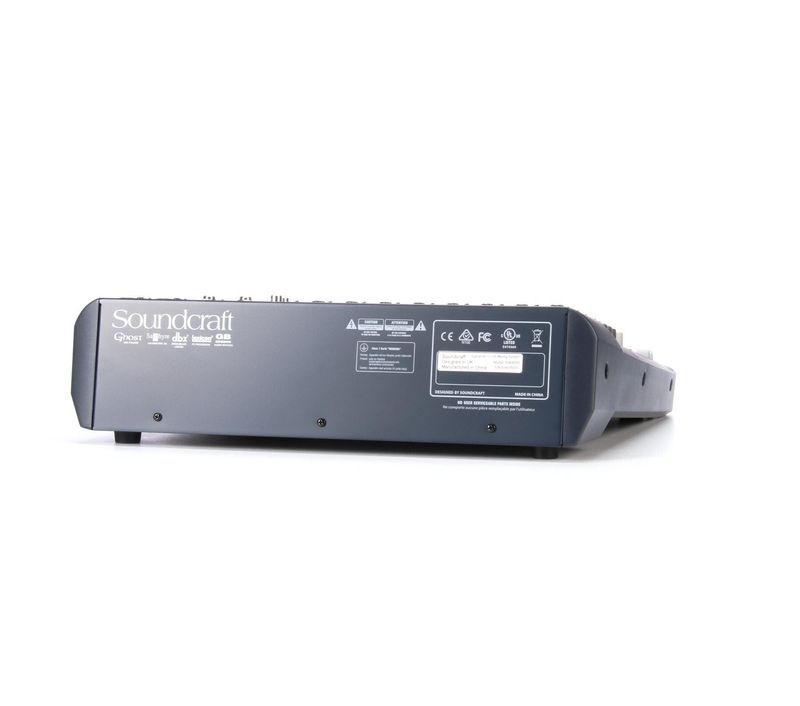

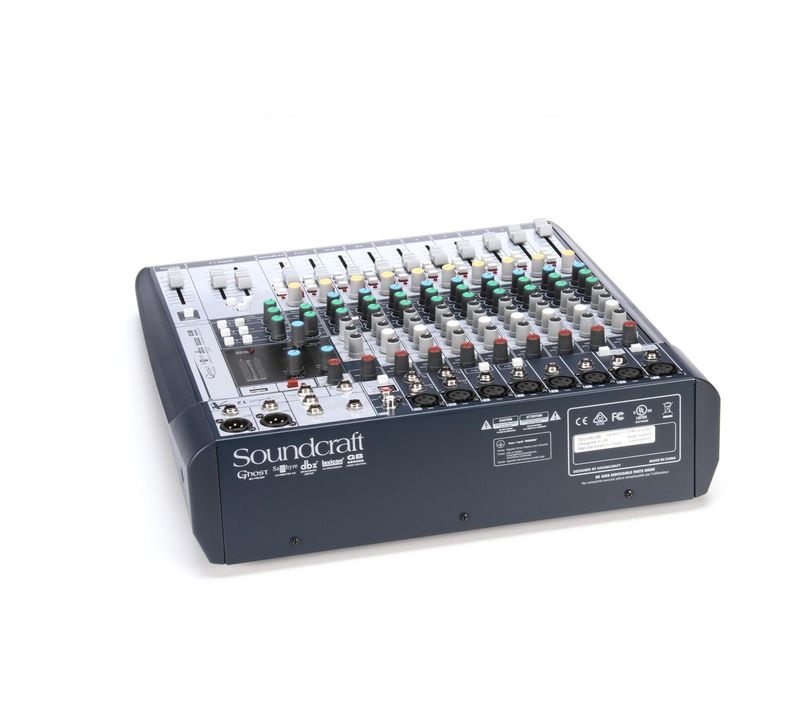

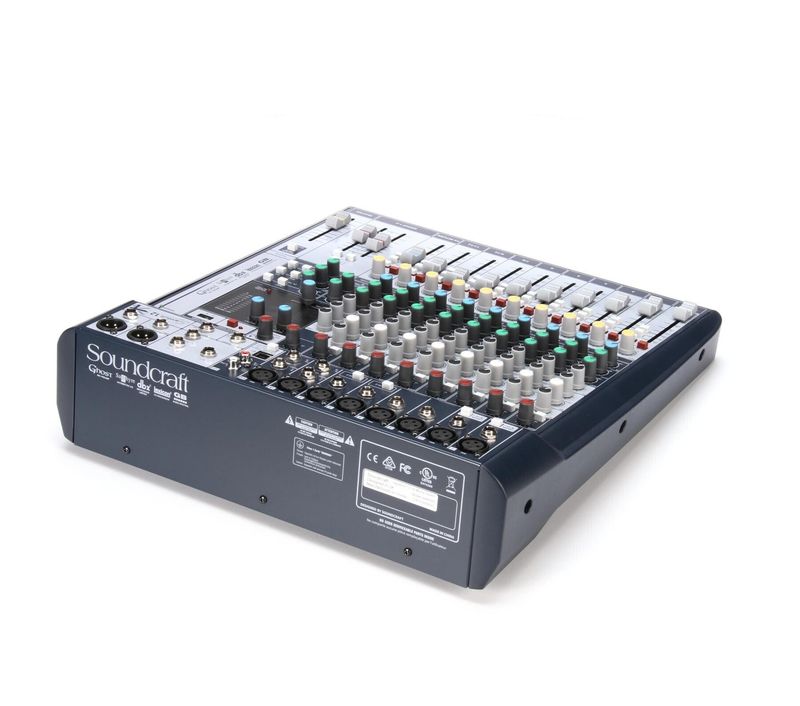

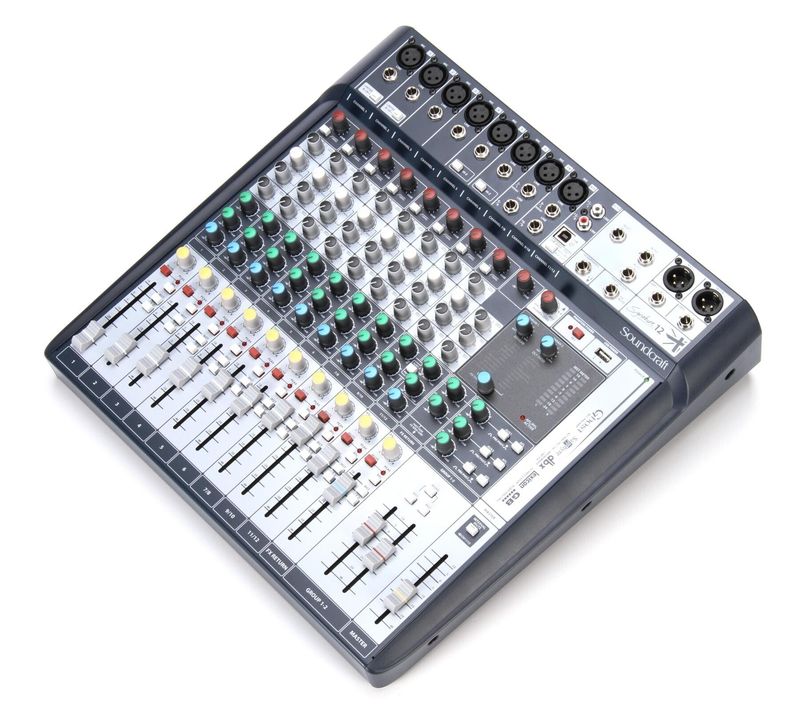

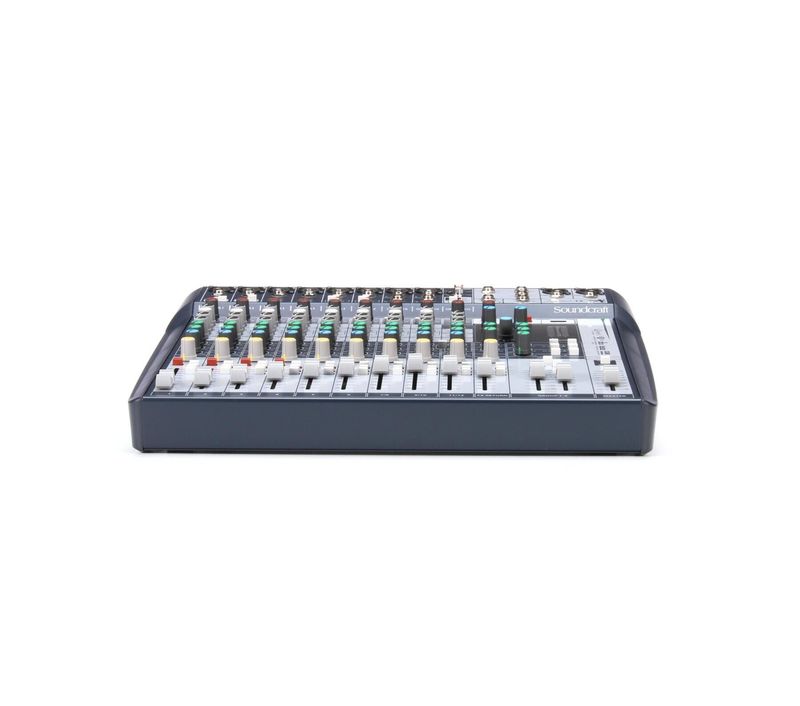

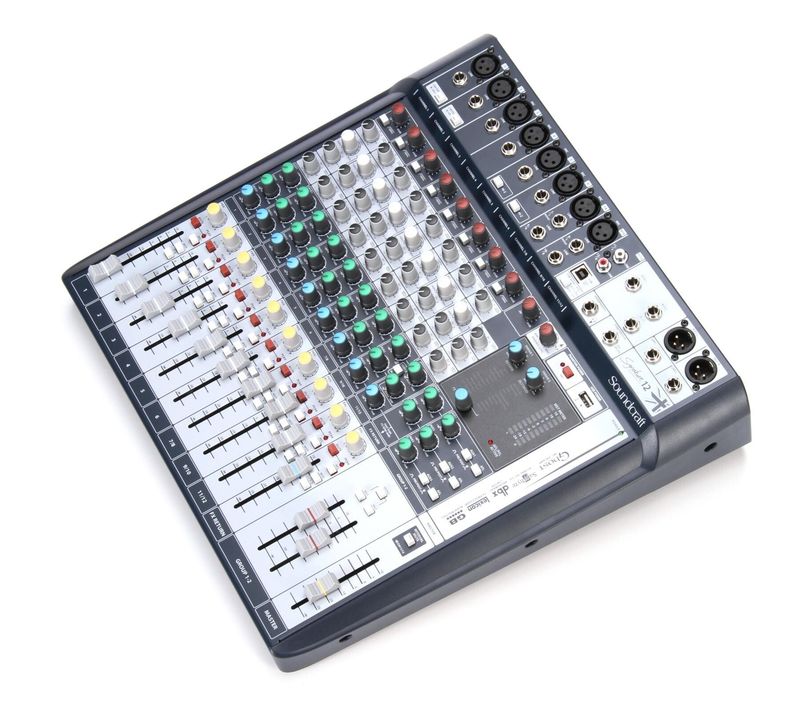

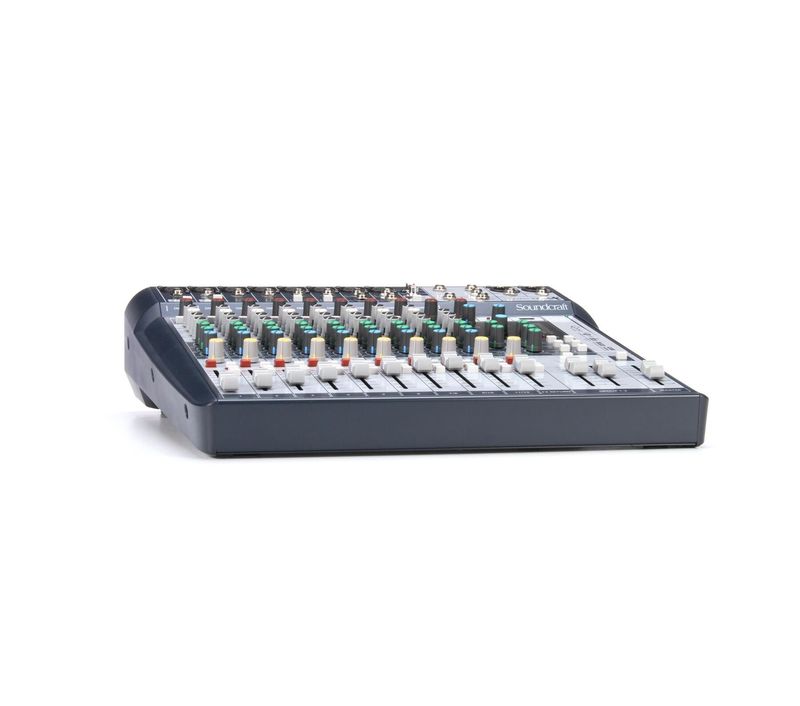

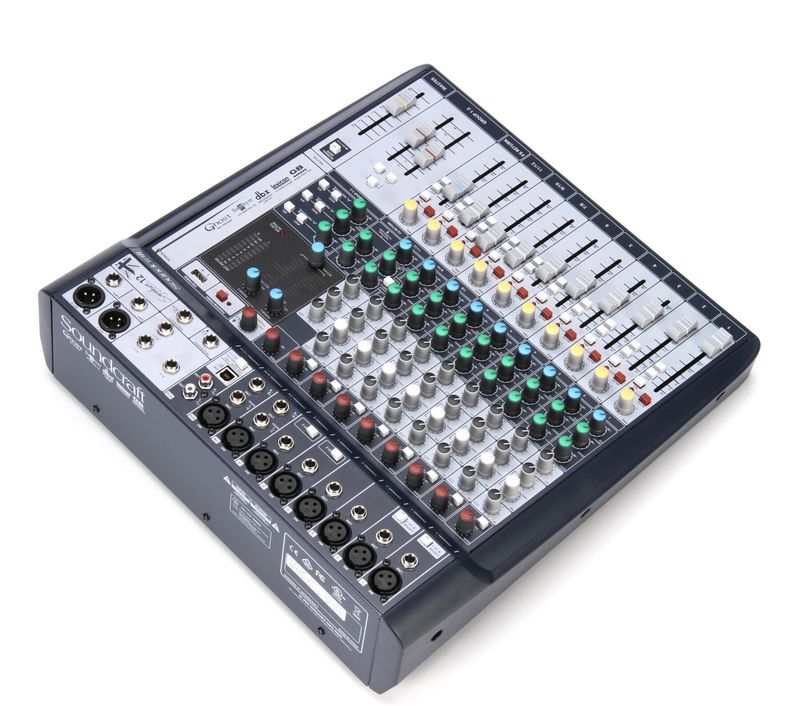

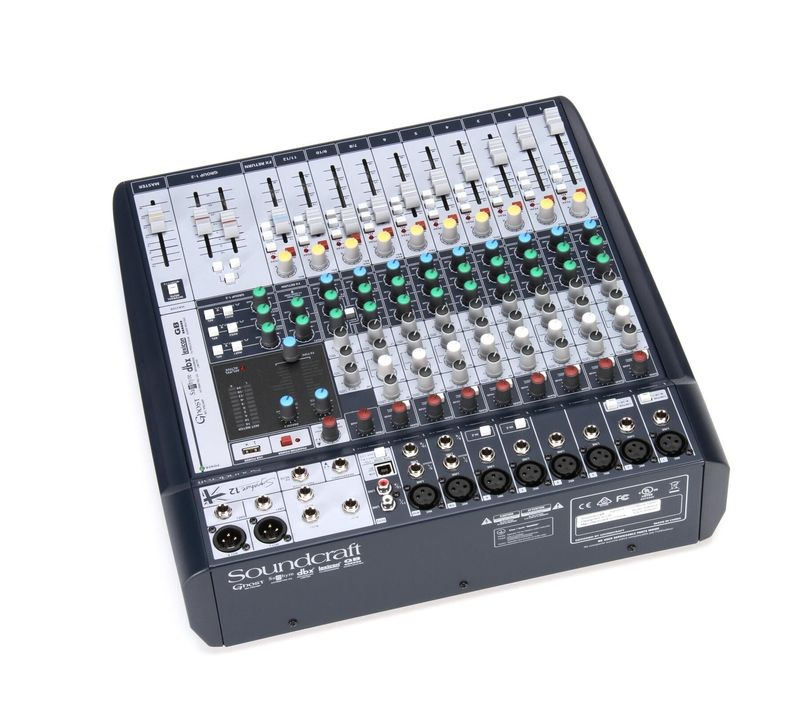

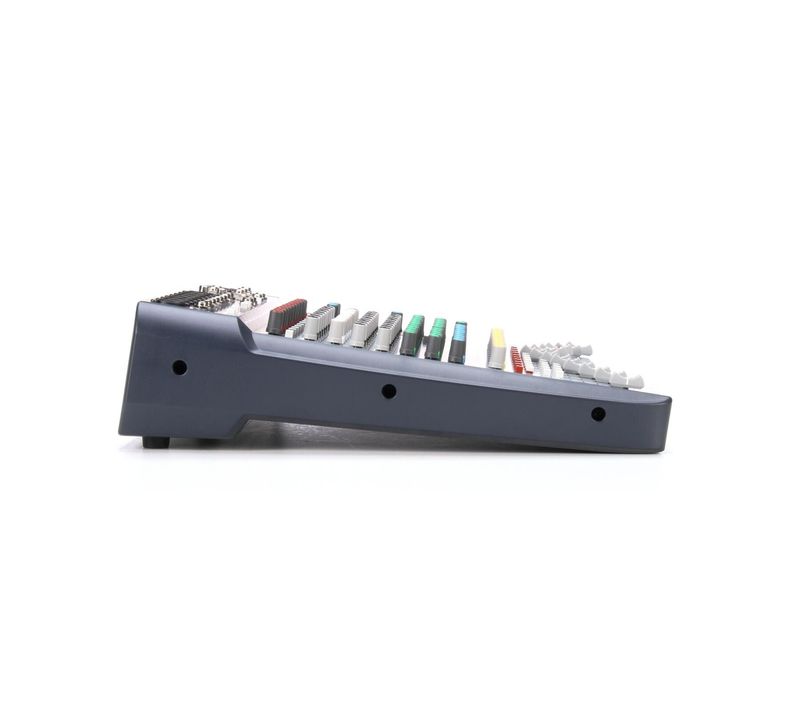

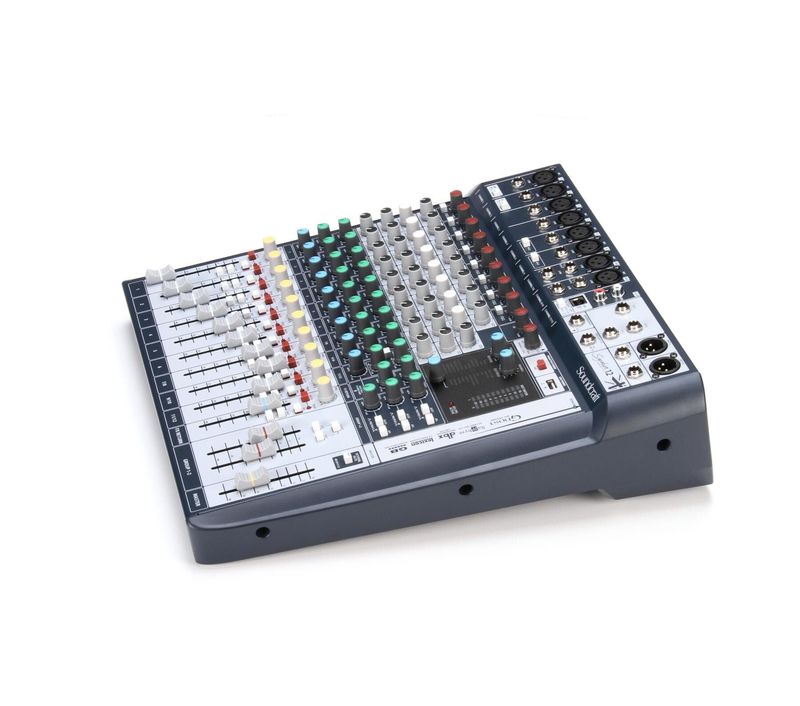

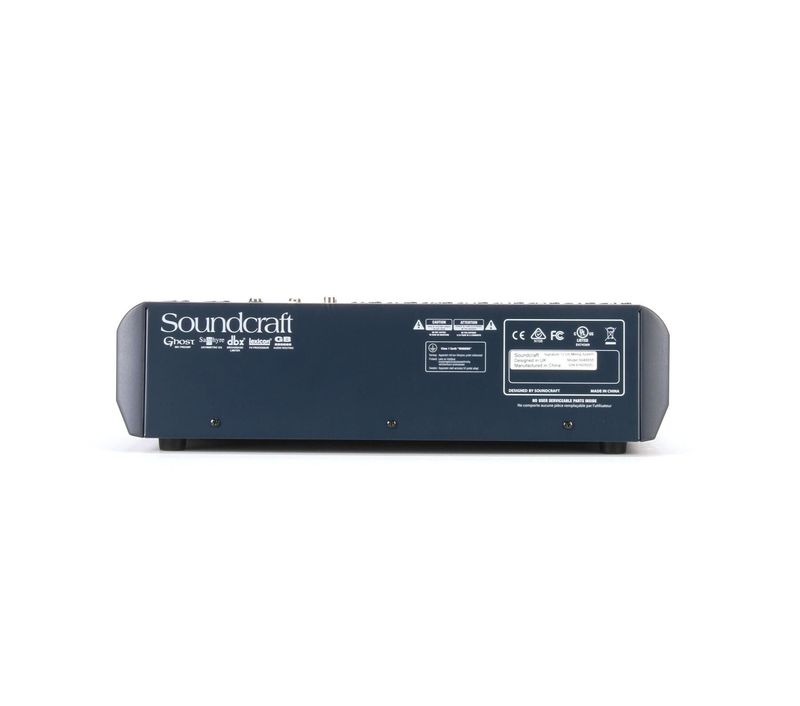

Soundcraft Signature 12 12-Input Mixer with Effects #SOS12ME #5049555

Key Features

12-Input Analog Mixer
8 Ghost Mic Preamps
Sapphyre British EQ Per Channel
2-in/2-out USB Recording
Lexicon Effects Engine
Switchable Hi-Z inputs
HPF & 48V on Mic Channels

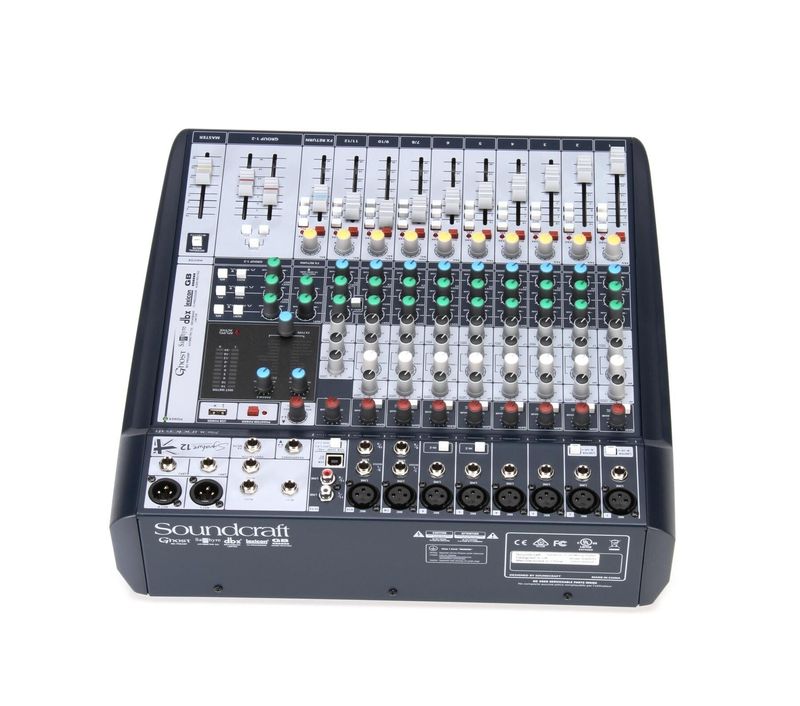

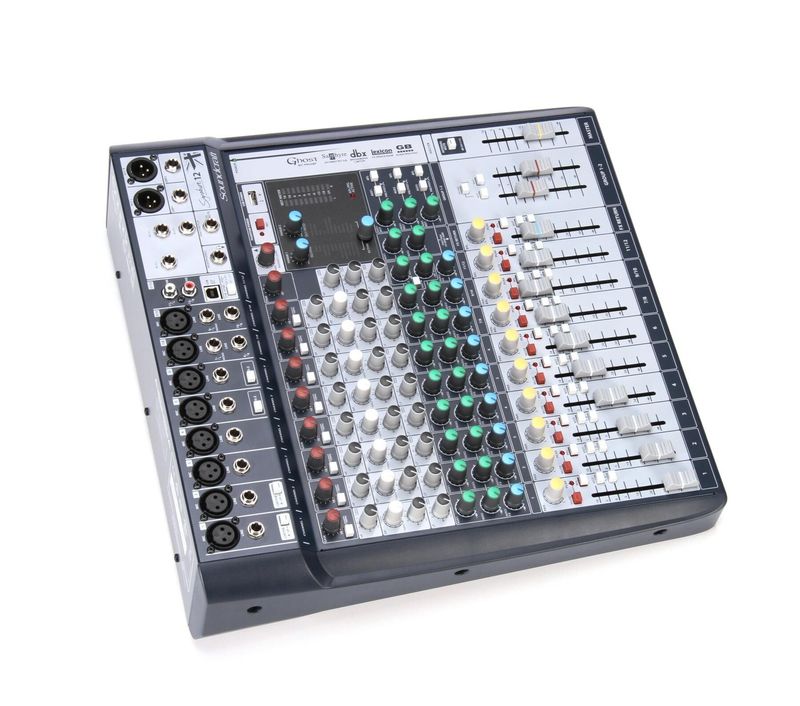

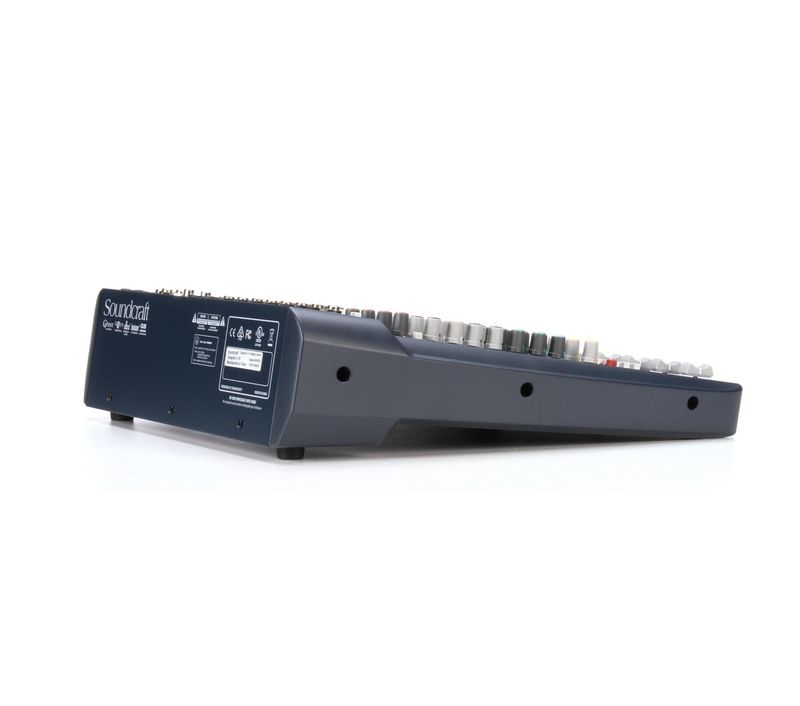

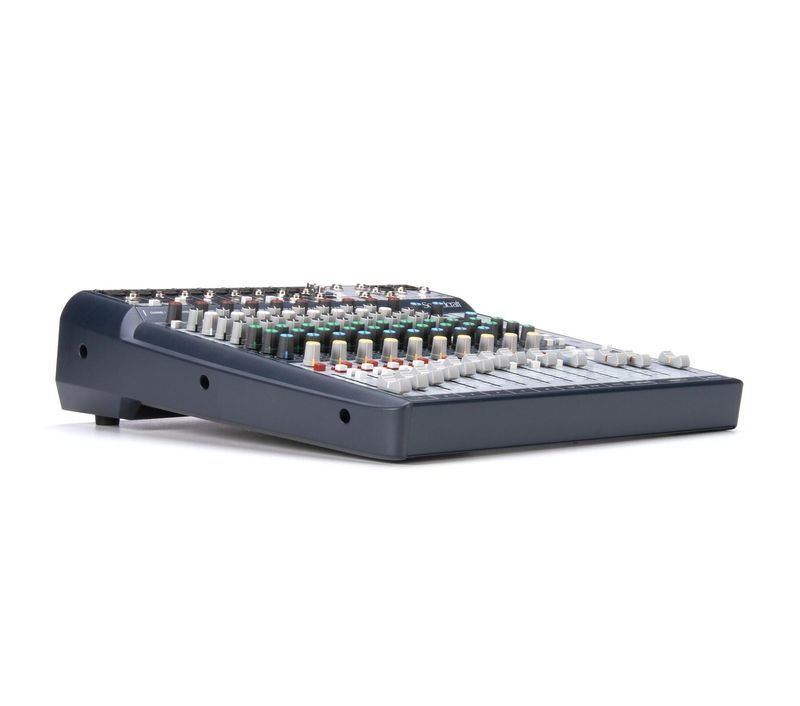

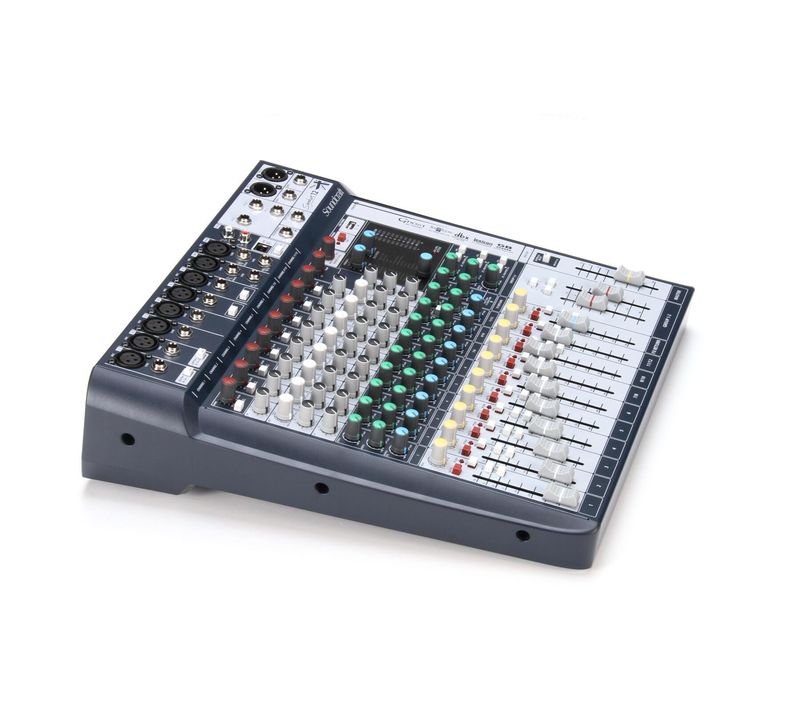

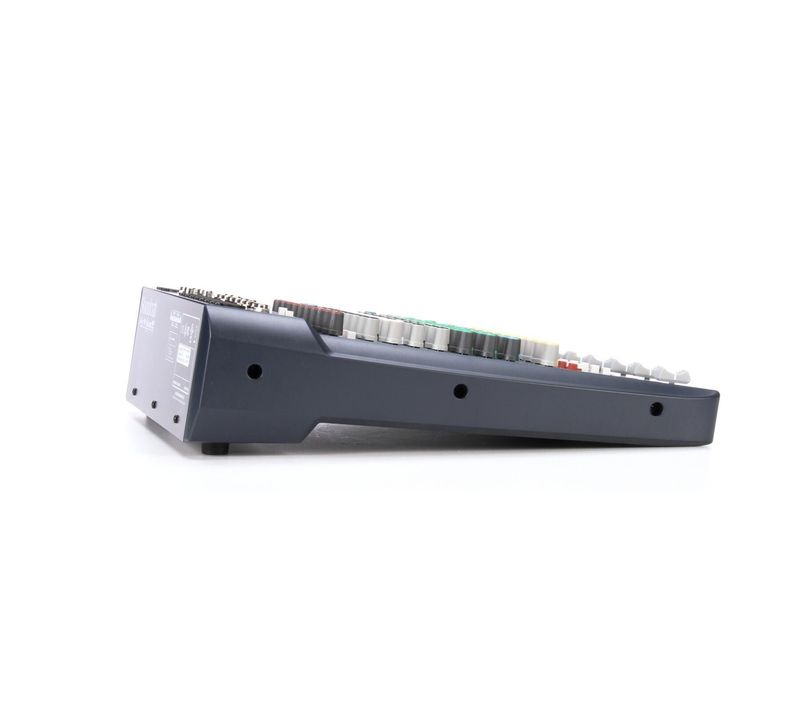

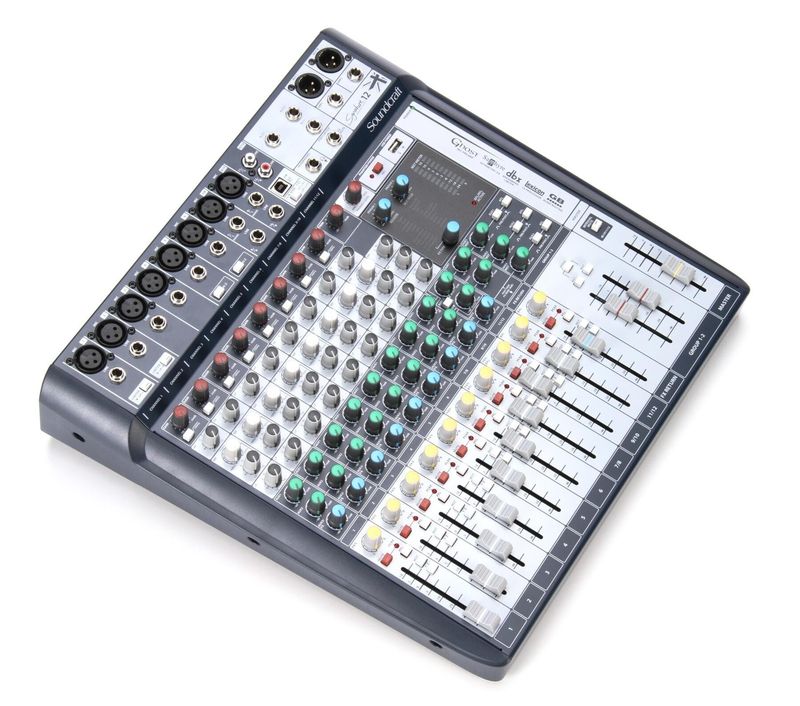

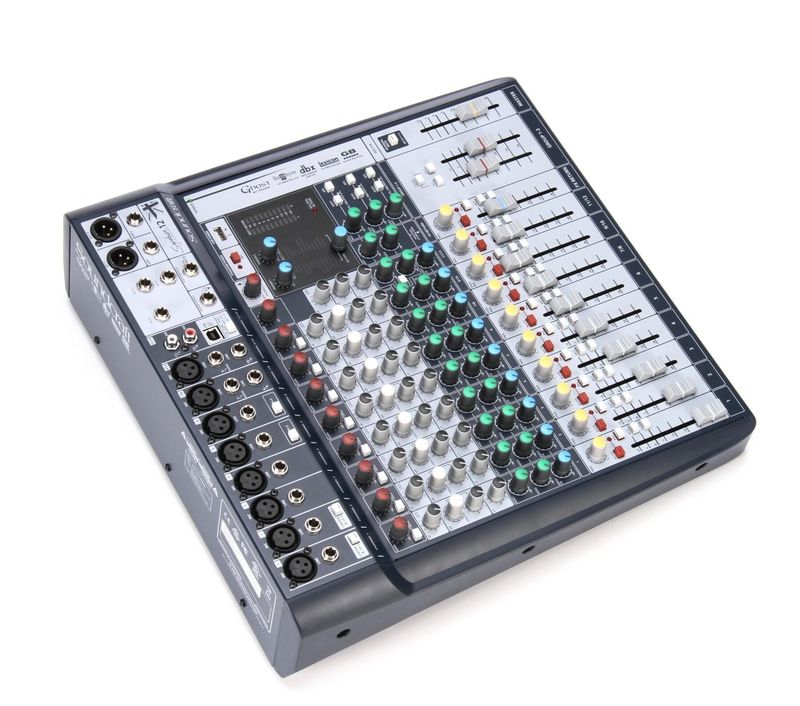

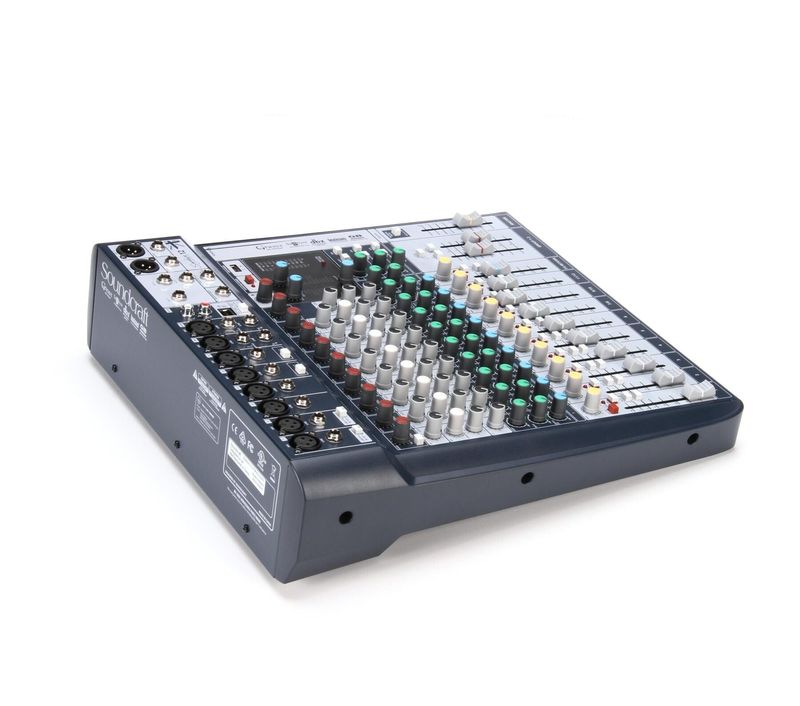

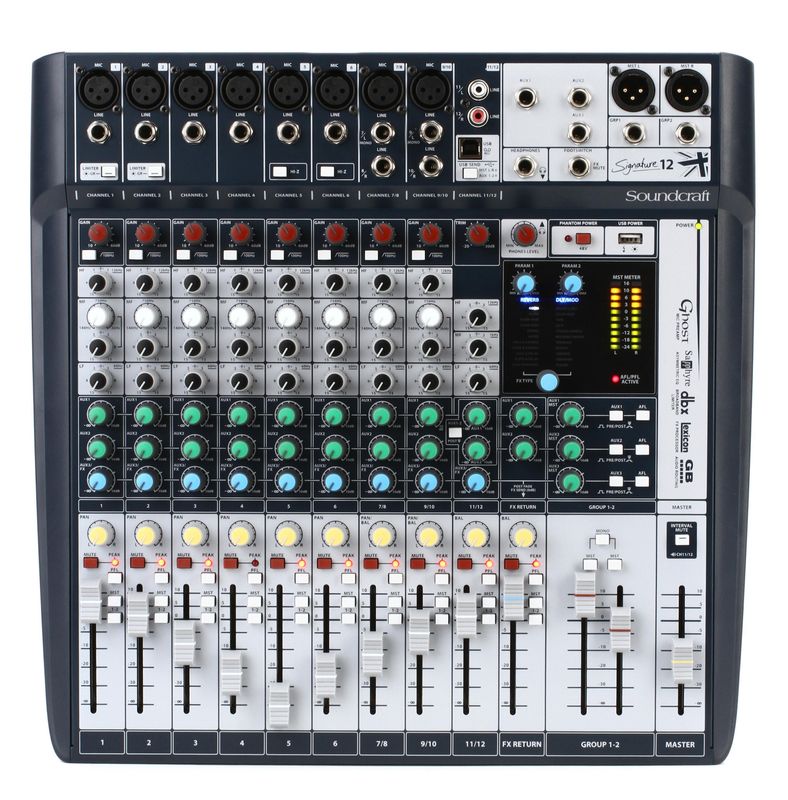

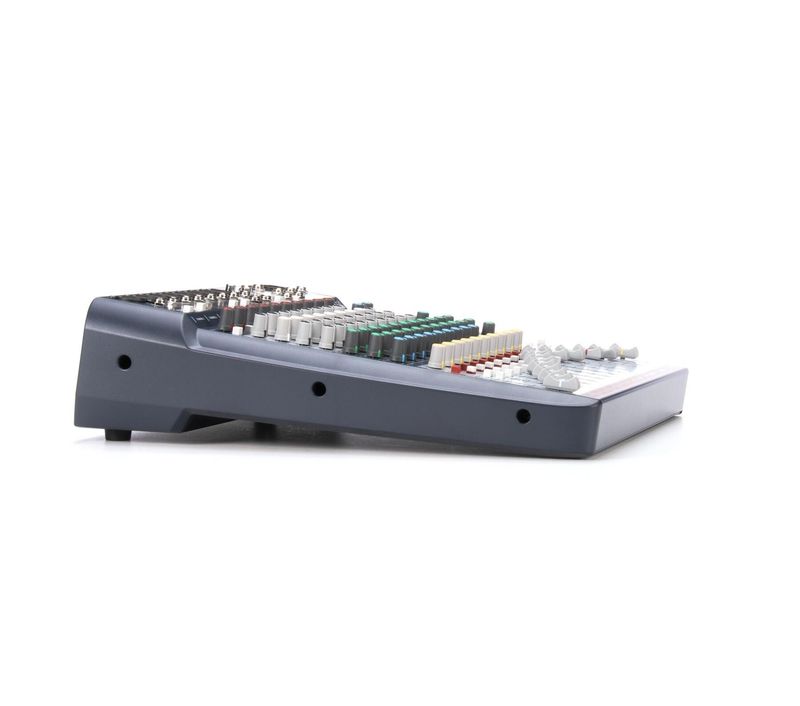

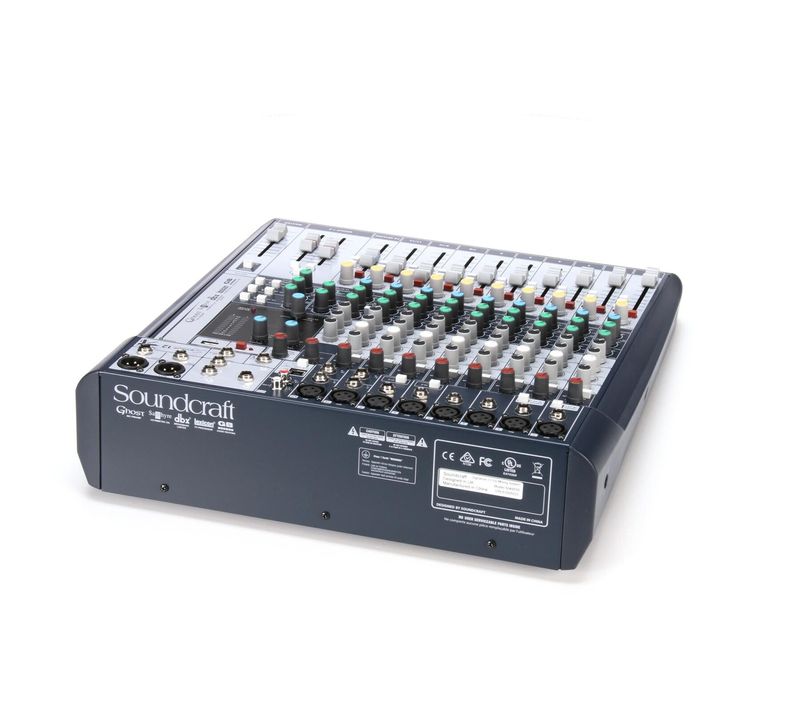

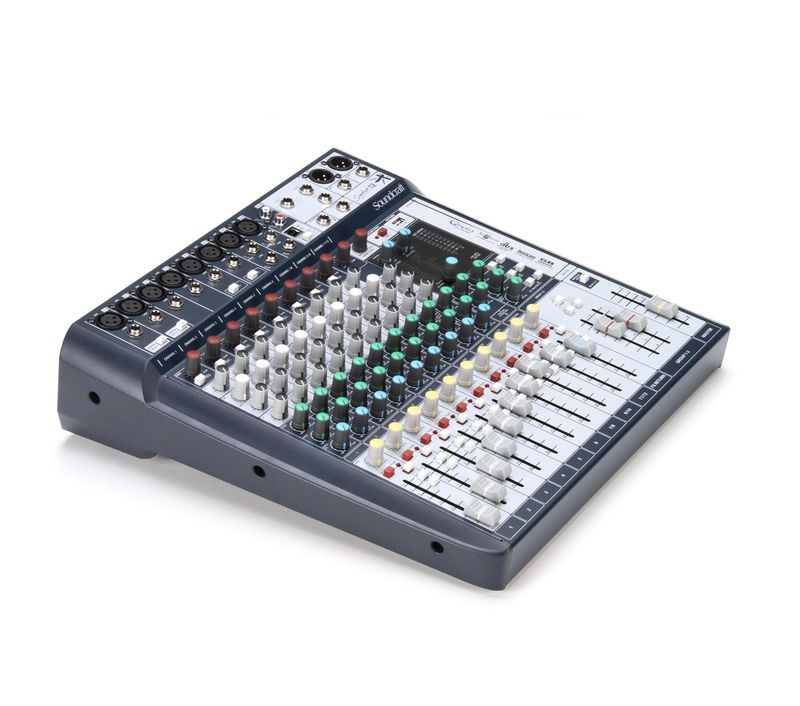

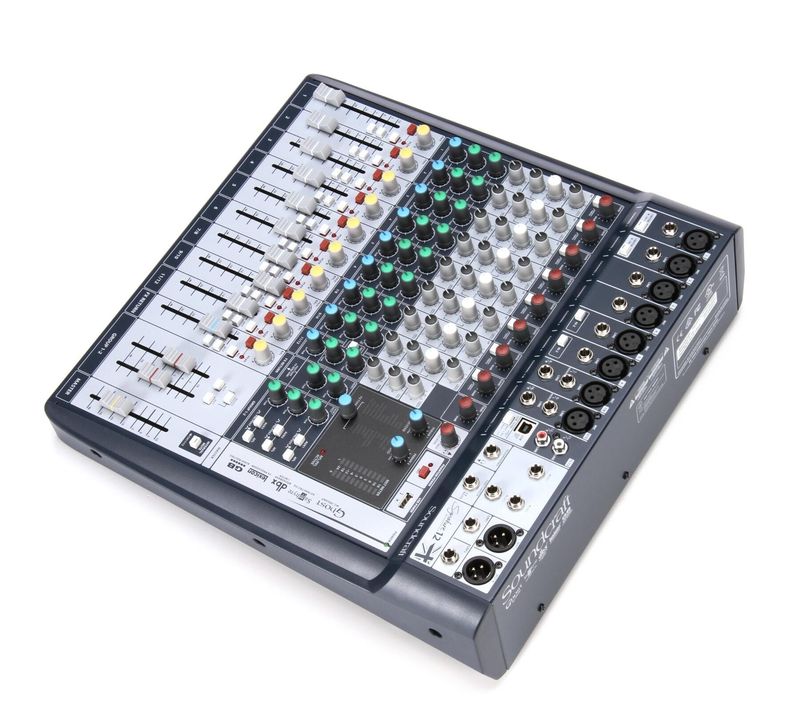

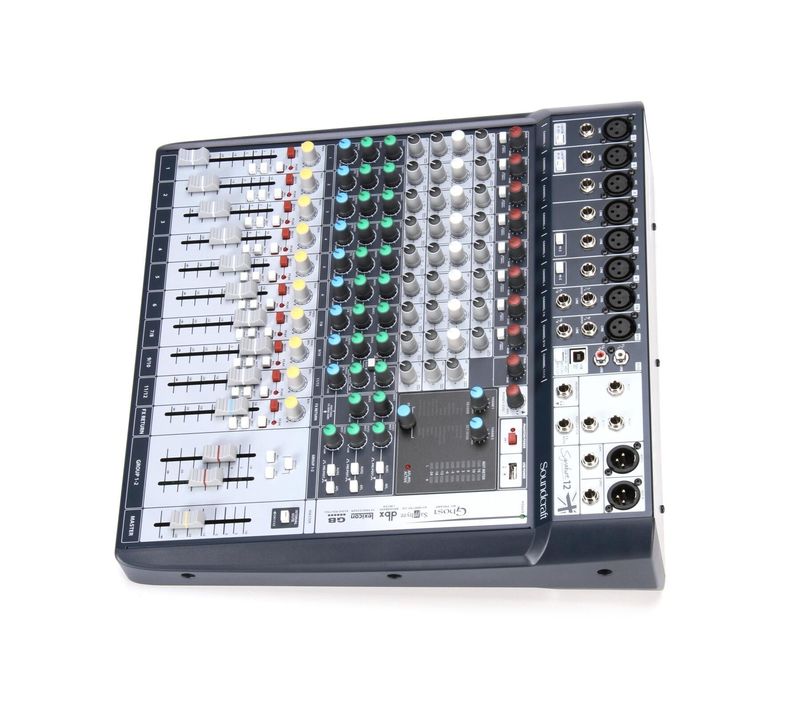

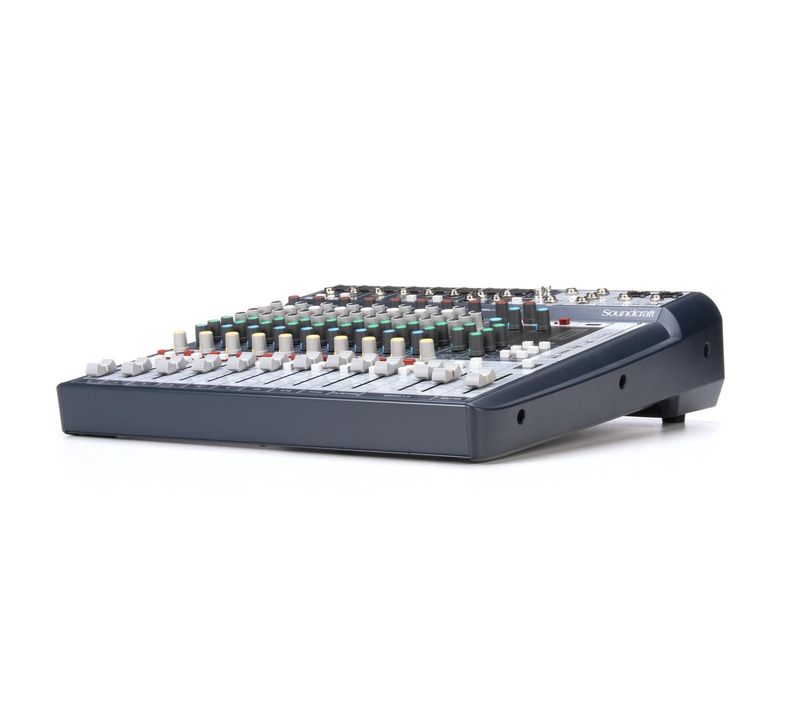

Soundcraft Signature 12 Overview

The Signature 12 from Soundcraft is a 12-input analog mixer with onboard effects. The Signature 12 features faders with GB Series audio routing, flexible pre/post switching on each Aux, subgroups with powerful routing and switching options, and dedicated outputs. Housed in a robust metal construction and equipped with an internal universal power supply, this mixer is recommended for use by musicians and bands, in music venues and theaters, for tour sound, houses of worship, and more.

The built-in Ghost microphone preamps deliver high-quality audio with a wide dynamic range, clarity, and a high level of headroom. Additionally, the mixer uses Sapphyre Asymmetric EQ for equalizing every vocal and instrumental element in a mix, and GB Series audio routing technology. The mixer provides a wide variety of built-in Lexicon studio-grade effects including reverb, chorus, and modulation, as well as dbx limiters on the input channels. XLR and switchable Hi-Z inputs enable guitars, basses, and other instruments to be connected directly.

The Signature 12 comes with a 2-in/2-out USB interface and free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.

High-performance 12-input small format analog mixer with onboard effects

Ghost mic preamps with low noise performance

Sapphyre British EQ with sweepable mid-bands per channel

Lexicon effects engine featuring reverbs, delays, choruses, and modulations

dbx limiters (high-ratio compressors) on input channels

2-in/2-out USB audio playback and recording

Switchable Hi-Z inputs for guitars, basses, and other instruments

Hi-pass filters (low-cut) and 48V phantom power on all mic channels

Comprehensive GB Series audio routing

Smooth faders

Robust metal construction for tour-grade build quality and reliability

Internal universal power supply

Soundcraft Signature 12 Specs

Channels	12
Preamps	8 x Ghost
Input Limiter	dbx: 2
Effects	Lexicon: Single engine
Faders	2" (60 mm)
Frequency Response	Mic / Line In to any Output: +/-1.5 dB, 20 Hz to 20 kHz
THD	Mono Mic Sensitivity -30 dBu, Input level -16 dBu, +14 dBu @ Mix Output: < 0.002% @ 1 kHz Stereo Mic Sensitivity -30 dBu, Input level -16 dBu, +14 dBu @ Mix Output: < 0.007% @ 1 kHz
Noise	Mono Mic Input E.I.N. (max gain): <-126 dBu (150 Ohms source) Stereo Mic Input E.I.N. (max gain): <-124 dBu (150 Ohms source)
Crosstalk	Channel Mute: >-90 dB Fader Cut-off (rel +10 mark): >-90 dB Aux Send Pots Offness: >-82 dB
EQ Section	EQ (Mono inputs) HF: 12 kHz, +/-15 dB MF (swept): 140 Hz to 3 kHz, +/-15 dB LF: 60 Hz, +/-15 dB EQ (Stereo inputs) HF: 12 kHz, +/-15 dB MF: 1 kHz, +/-15 dB LF: 60 Hz, +/-15 dB
Input and Output Level	Mic Input: +12.5 dBu max Line Input: >+26 dBu max Stereo Inputs: >+26 dBu max Mix Output: +21.5 dBu max Headphones (@150 Ohms): 300 mW
Input and Output Impedance	Mic Input: 1.2 kOhms Hi-Z Input: 968 kOhms Line Input: 10 kOhms Stereo Input: 21.5 kOhms Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced)
USB Audio	Inputs/Outputs: 2-in, 2-out Bit Depth: 16-bit, 24-bit Sampling rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Operating Conditions	Temperature Range: 41 to 104°F / 5 to 40°C
Power Consumption	<60 VA
Dimensions	19.3 x 17.9 x 8.3" / 490.0 x 455.0 x 210.0 mm
Weight	12.5 lb / 5.7 kg
